•function:switch
•Type:standalone Rackmount (via mounting bracket)
•network connection:24x RJ-45
•Speeds:24x RJ-45 (10/100/1000Base-T)
•PoE:12x RJ-45 PoE+ (12x 30W) entire: 100W
•Backplane:48Gb/s 3571Mp/s 9kB Jumboframes 512KB packet buffer 8K Mac-addresses
•official supported Standards:8021AX 8021D 8021Q 8021p 8021w 8023 8023ab 8023af 8023at 8023az 8023u 8023x 8023z IGMPv3
•Configuration:Webinterface configuration software (Windows)
•Cooling:passive
•Dimensions (WxHxD):280x44x230mm 1U
•Weight:200kg
•Colour:black
•Special features:metal housing detachable mounting bracket firmware updates possible Theft protection (Kensington Lock)
•Warranty:two years (lifetime (10 years in AT/DE) + 5 years to registration)
•Note:For this device \"link aggregation\" was officially specified with the obsolete standard IEEE8023ad Since 2008 the function is no longer administered by the IEEE \"Working Group 3\" (IEEE 8023 CSMA/CD - Ethernet) but by \"Working Group 1\" (IEEE 8021 High Level Interface - Internetworking) and defined technically unchanged via IEEE 8021AX
- SKU - Κωδικός Εργοστασίου

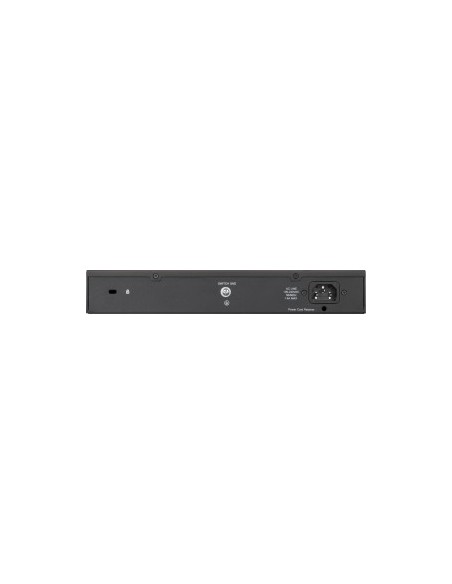

- DGS-1100-24PV2
