•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel H610
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:2x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260) 1x M2/E-Key (PCIe/Intel CNVi 2230)

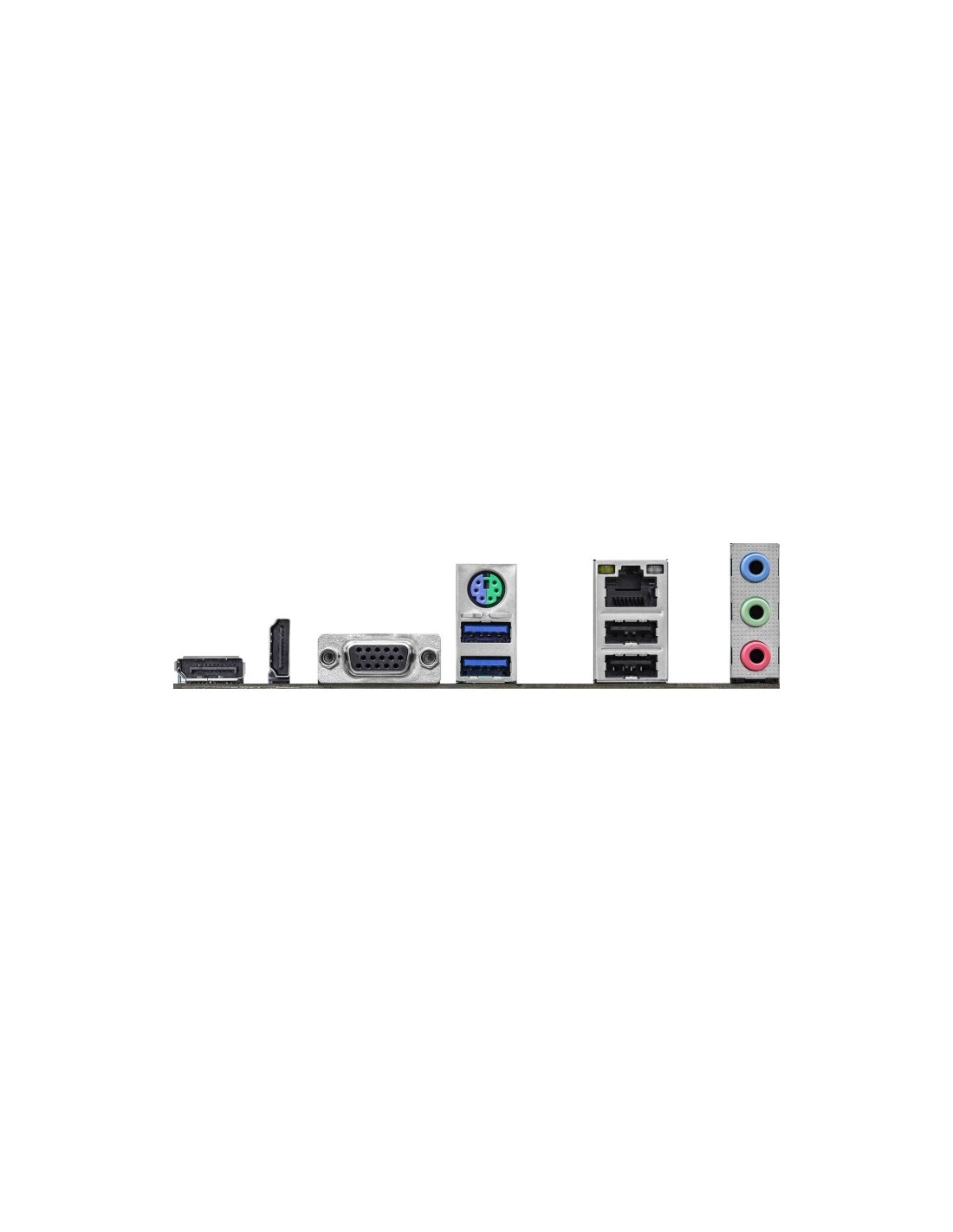

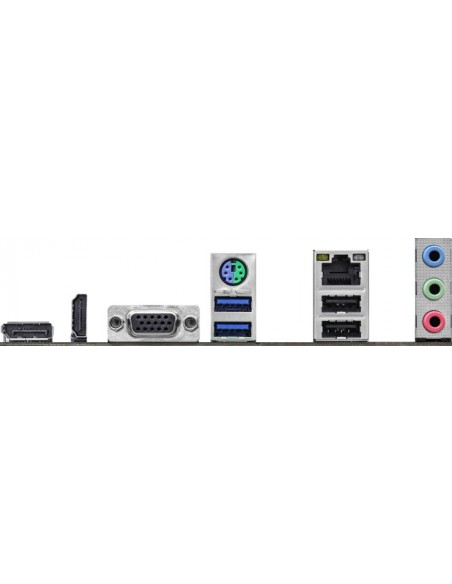

•external connectors:1x VGA (iGPU) 1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 2x USB-A 30 (5Gb/s H610) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Intel I219-V) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30 H610) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (H610) 1x serial 1x TPM-Header 1x Speaker-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 2x fan/pump 4-Pin
•Header Lighting:not available
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:6 virtual phases (5+1) 6 real phases (5+1) PWM-Controller: RT3628AE (max 9 phases)
•MOSFETs CPU:5x 48A SM4508/10x SM4373
•MOSFETs SoC:1x 48A SM4508/2x SM4373
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- H610M-HDV/M.2
