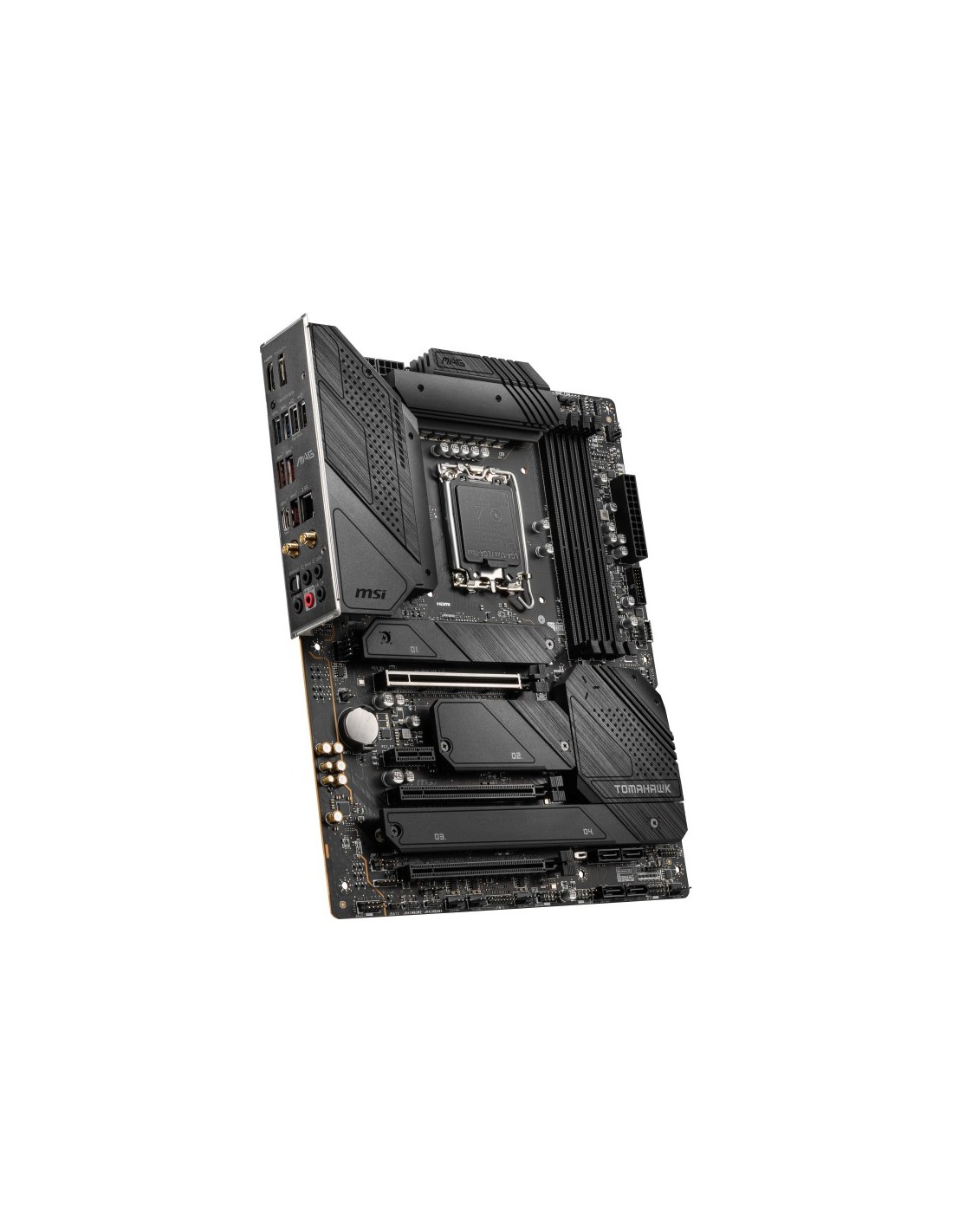

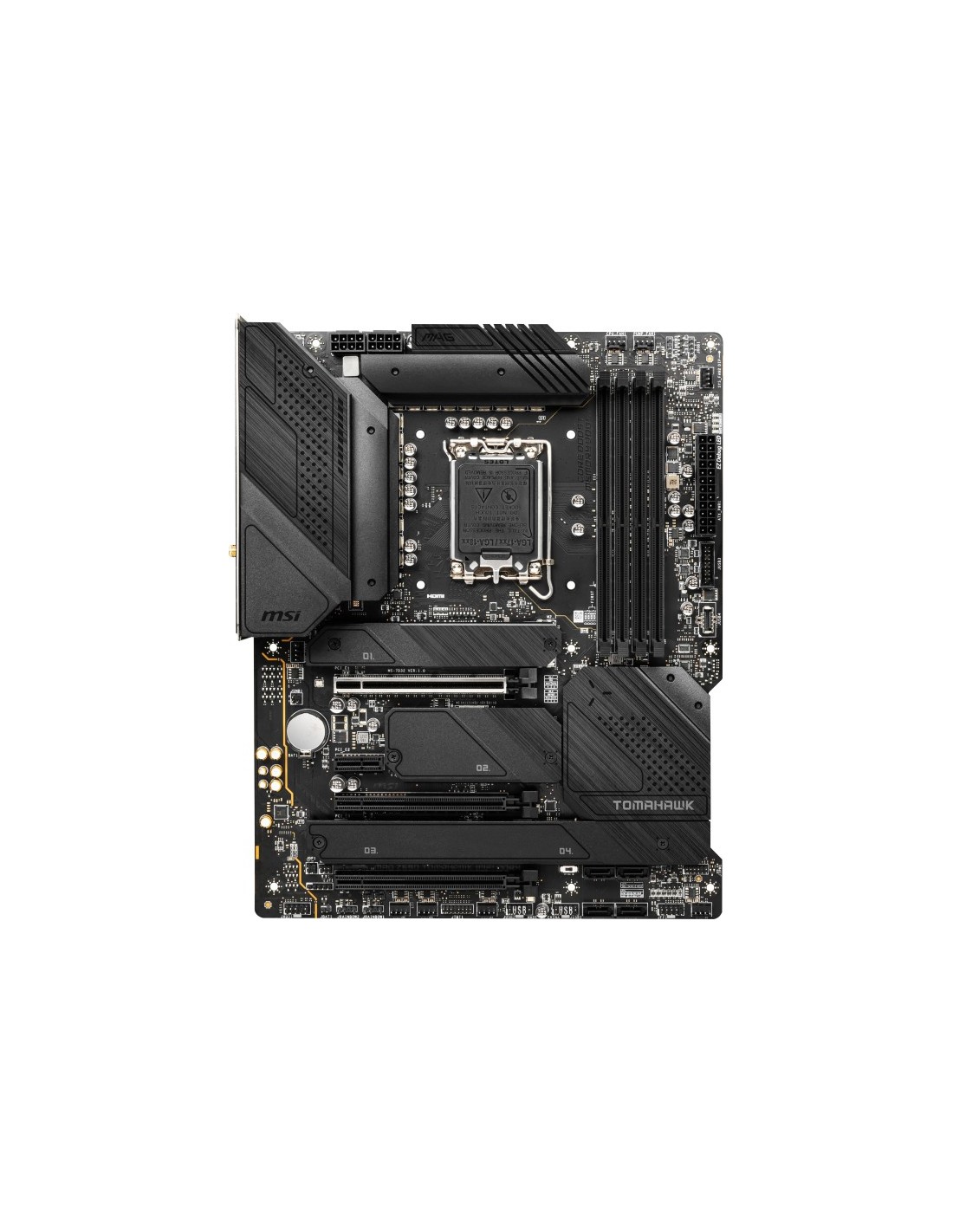

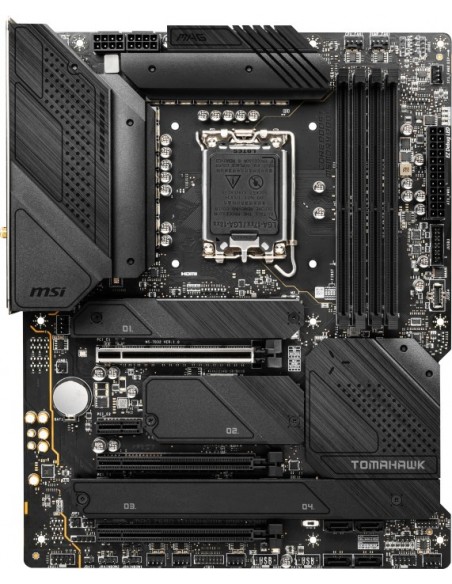

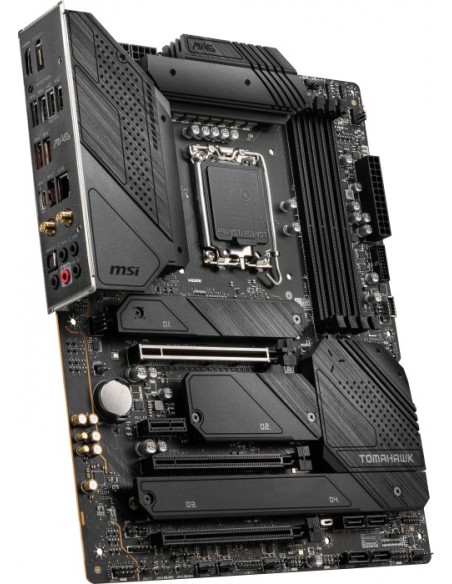

MSI MAG Z690 TOMAHAWK WIFI DDR4, Motherboard (7D32-002R)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
20
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
20
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
2,00 €
.
•shape factor:ATX
•Socket:Intel 1700
•chipset:Intel Z690
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR4 DIMM dual PC4-41600U/DDR4-5200 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 2x PCIe 30 x16 (1x x4 1x x1) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242) 1x M2/M-Key (PCIe 40 x4 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242) 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242) 1x M2/E-Key (PCIe/Intel CNVi 2230 occupied with WiFi+BT module)

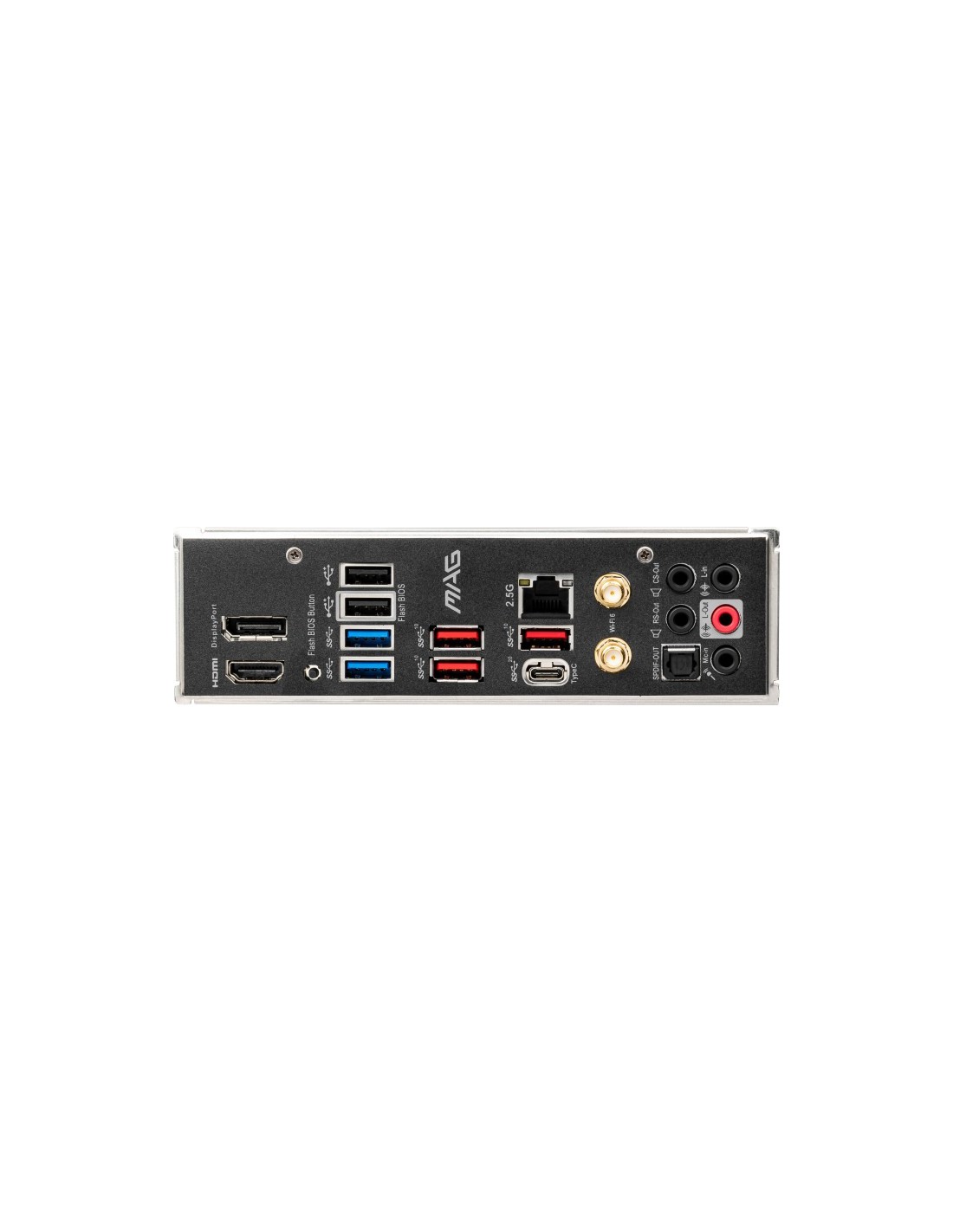

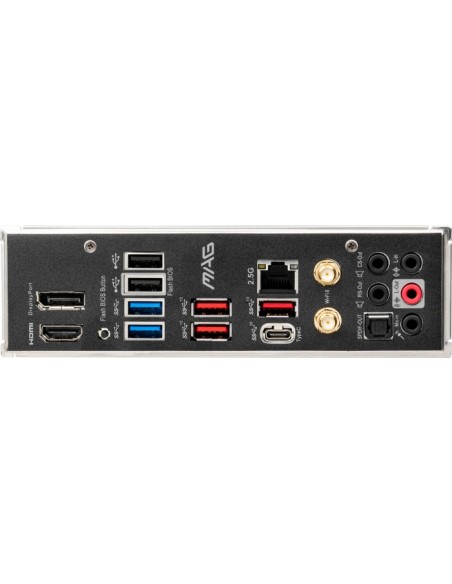

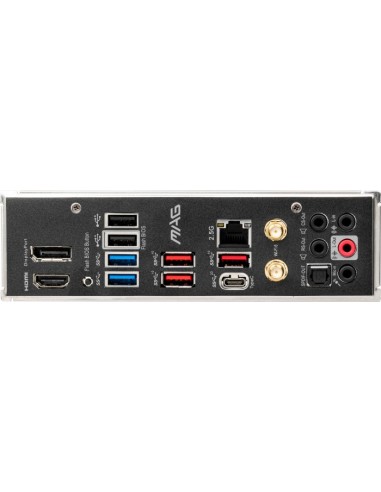

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 32 (20Gb/s Z690) 3x USB-A 31 (10Gb/s Z690) 2x USB-A 30 (5Gb/s Z690) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Intel I225-V) 5x jack 1x toslink
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s Z690) 1x USB 30 Header (5Gb/s 2x USB 30 Z690) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (Z690) 2x SATA 6Gb/s (ASM1061) 1x TPM-Header 1x Thunderbolt-Header 15-Pin 1x Chassis Intrusion-Header 1x MSI Tuning controller Header 5-Pin
•Header Cooling:1x CPU fan 4-Pin 1x pump 4-Pin 6x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:USB BIOS Flashback (external) LED switch (internal)
•Audio:71 (Realtek ALC4080)
•Graphics:iGPU
•Wireless:Wi-Fi 6 (WLAN 80211a/b/g/n/ac/ax 2x2 Intel) Bluetooth 52
•RAID level:0/1/5/10 (Z690)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 2x 8-Pin EPS12V
•VRM:17 virtual phases (16+1) 17 real phases (16+1) PWM-Controller: RAA229131 (max 20 phases)
•MOSFETs CPU:16x 70A MP87992
•MOSFETs SoC:1x 70A MP87992
•Lighting:RGB 1 zone (chipset cooler)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 4x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 7D32-002R
