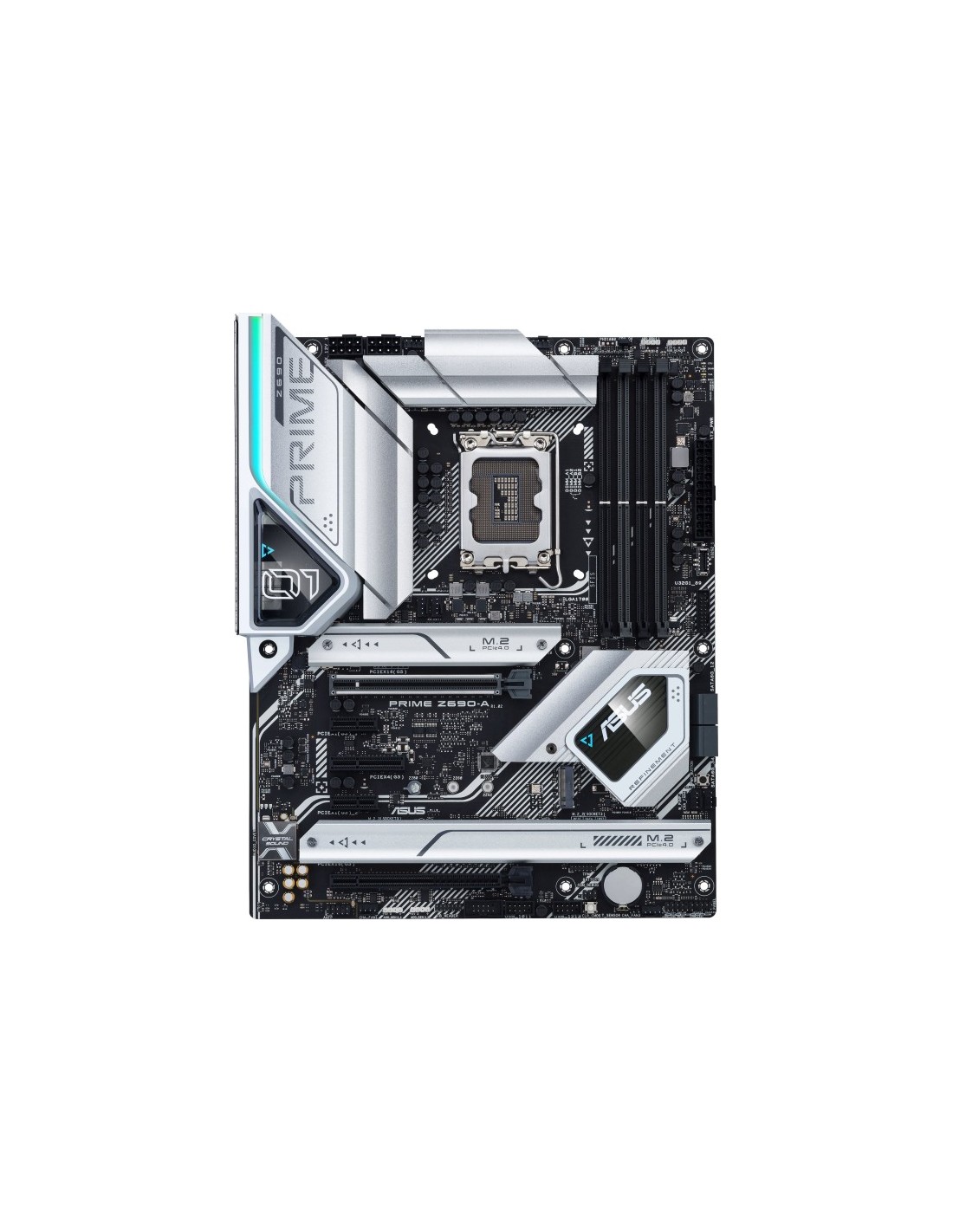

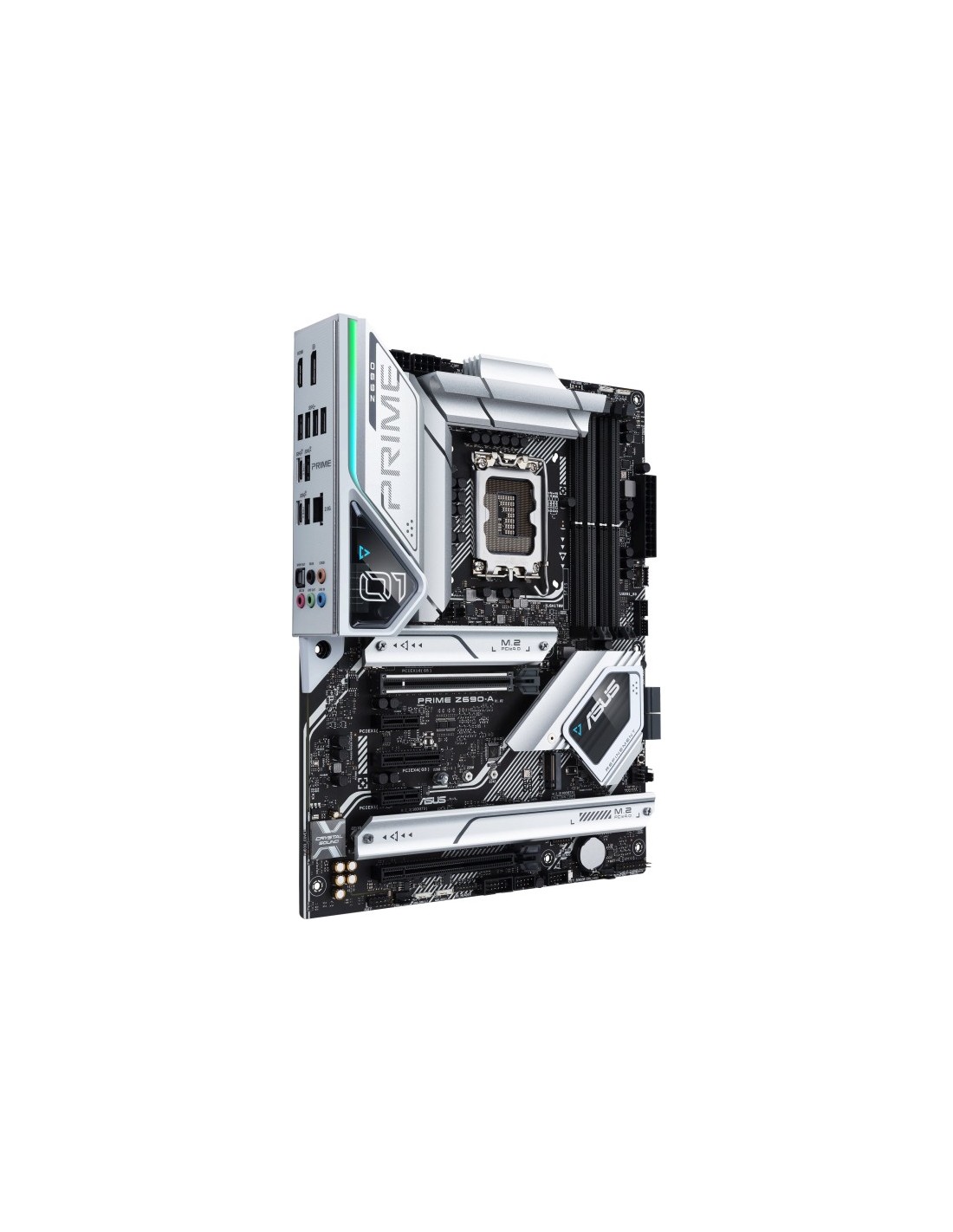

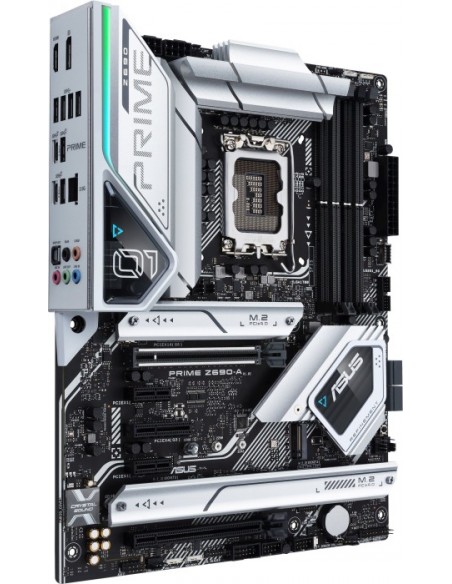

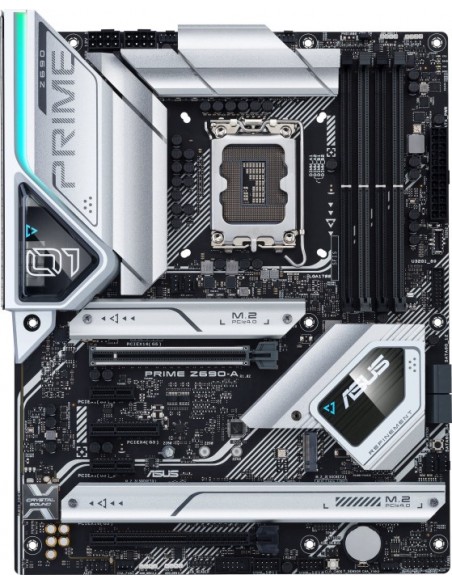

•shape factor:ATX
•Socket:Intel 1700
•chipset:Intel Z690
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR5 DIMM dual PC5-48000U/DDR5-6000 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x4 2x PCIe 30 x1 2x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242) 1x M2/M-Key (PCIe 40 x4 2280/2260/2242) 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242)

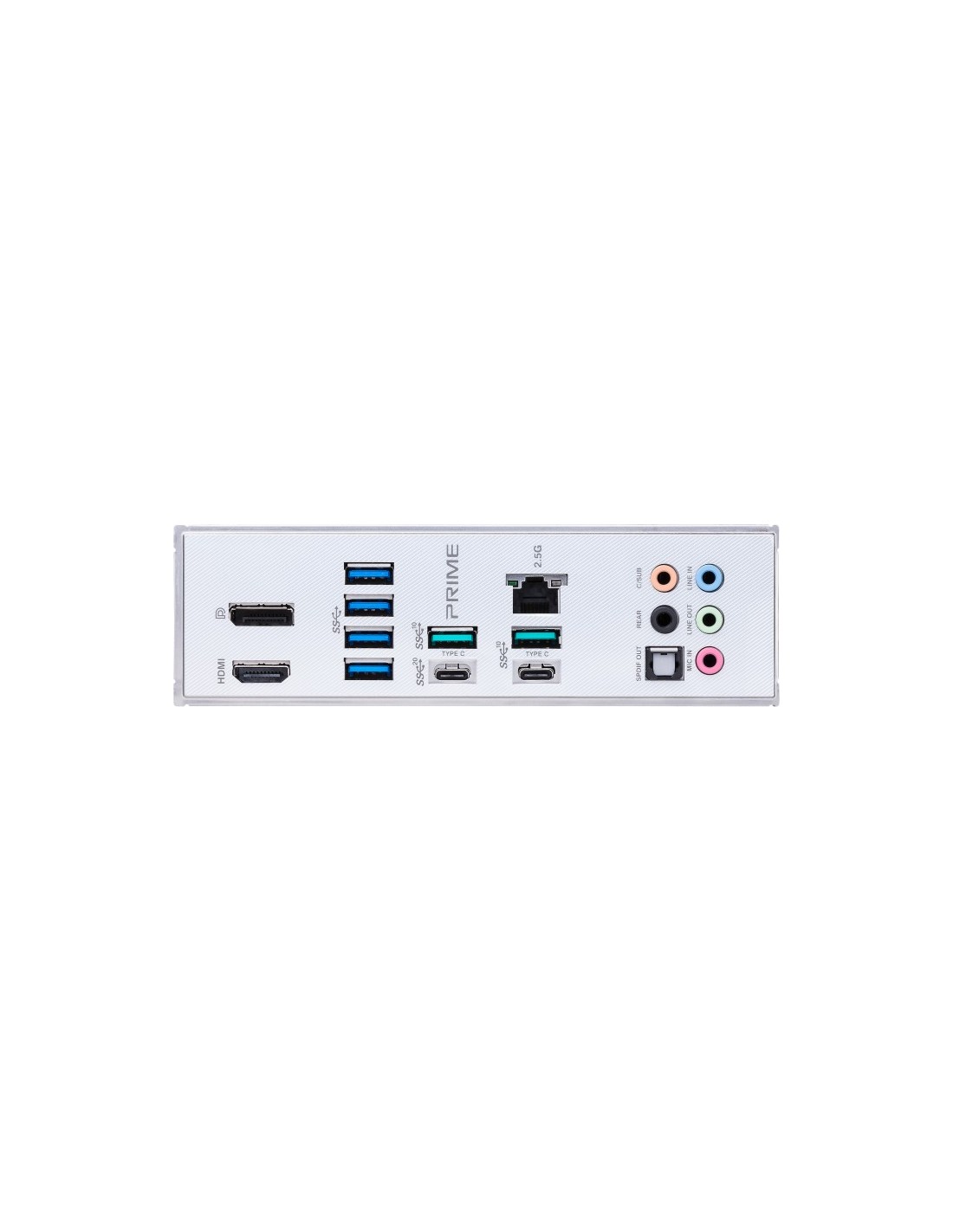

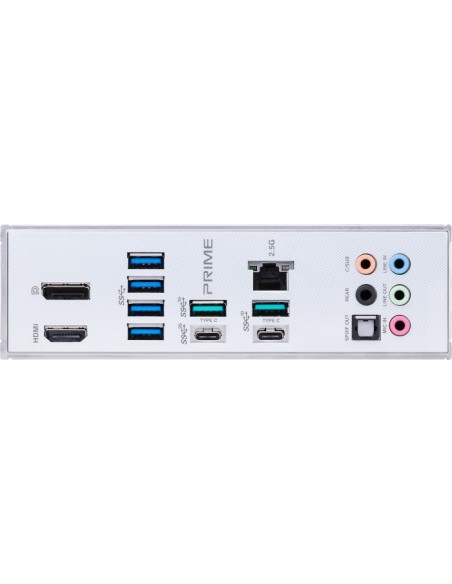

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 32 (20Gb/s) 1x USB-C 31 (10Gb/s) 2x USB-A 31 (10Gb/s) 4x USB-A 30 (5Gb/s Z690) 1x 25GBase-T (Intel I225-V) 5x jack 1x toslink
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s) 1x USB 30 Header (5Gb/s 2x USB 30 Z690) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (Z690) 1x serial 1x TPM-Header 1x Thunderbolt-Header 13-Pin 1x Chassis Intrusion-Header 1x COM Debug-Header
•Header Cooling:2x CPU fan 4-Pin 4x fan 4-Pin 1x AIO-pump 4-Pin 1x pump 4-Pin 1x Thermal-sensor
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:Power-Button (inter) clear-CMOS-Button (internal)
•Audio:71 (Realtek ALC1220) DTS:X Ultra
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (Z690)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 2x 8-Pin EPS12V
•VRM:15 virtual phases (14+1) 8 real phases (7+1) PWM-Controller: ASP2100 (RT3628AE max 9 phases)
•MOSFETs CPU:14x 60A SiC643
•MOSFETs SoC:1x 60A SiC643
•Lighting:RGB 1 zone (I/O cover)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 2x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Link
•Note:Compatible with socket 115x/1200-cooler Durch Unterschiede the Z-height (stack-Up-Height) reduced sich however the contact pressure and therewith the cooling capacit
- SKU - Κωδικός Εργοστασίου
- 90MB18L0-M0EAY0
