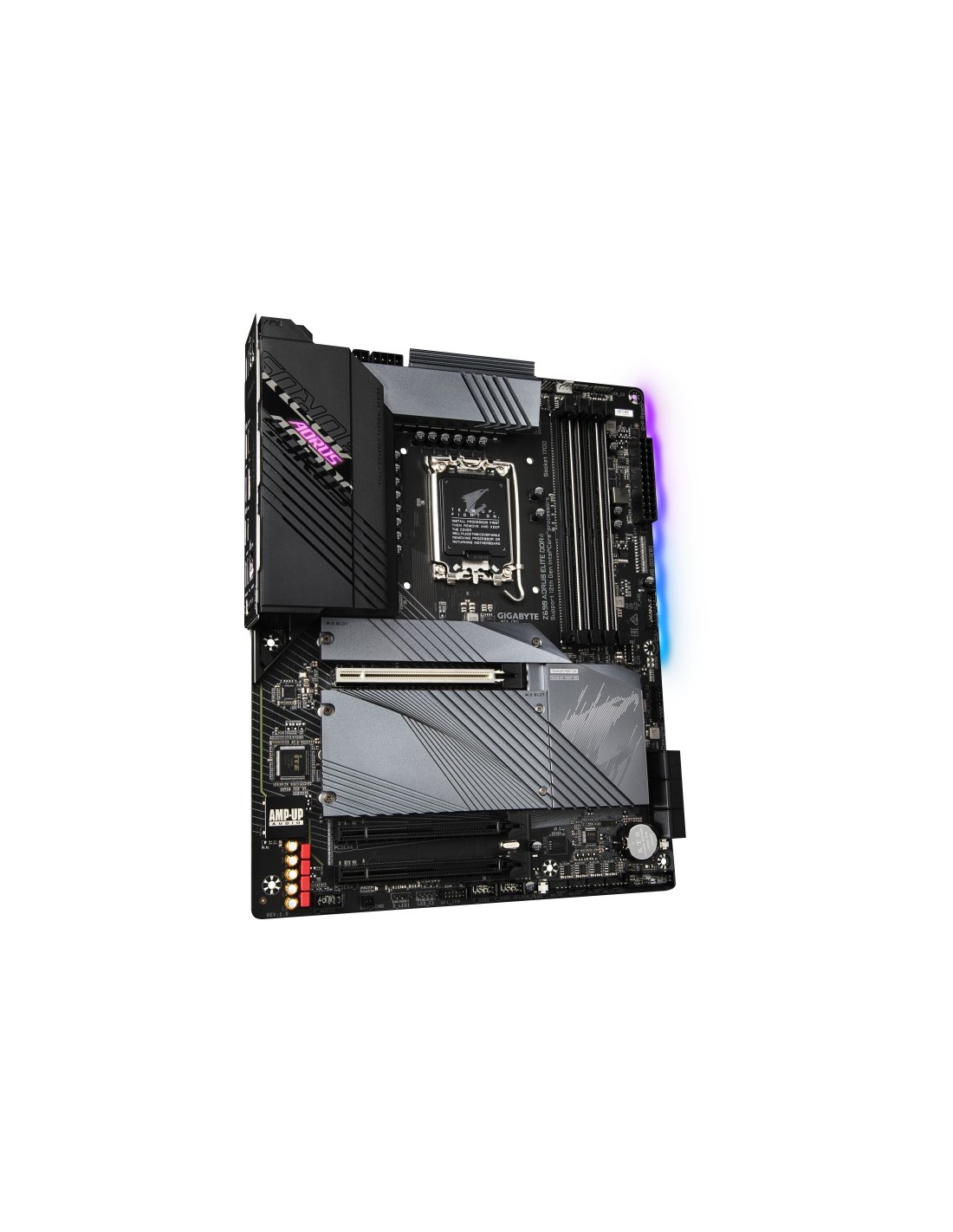

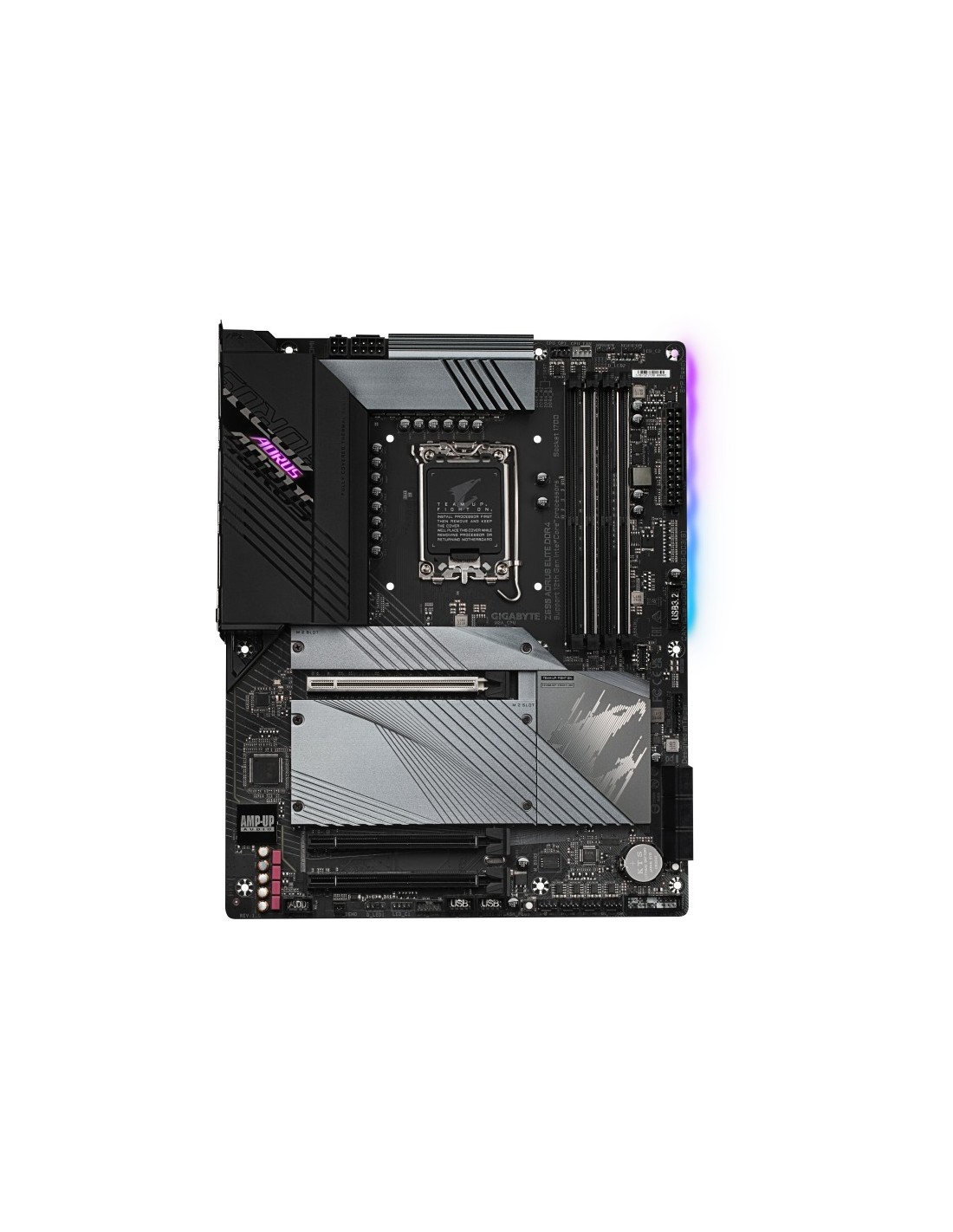

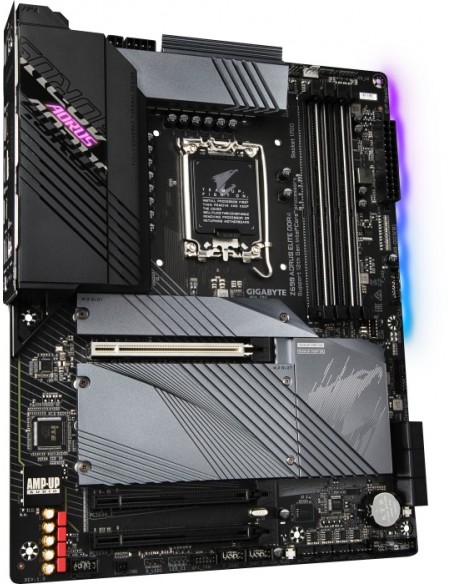

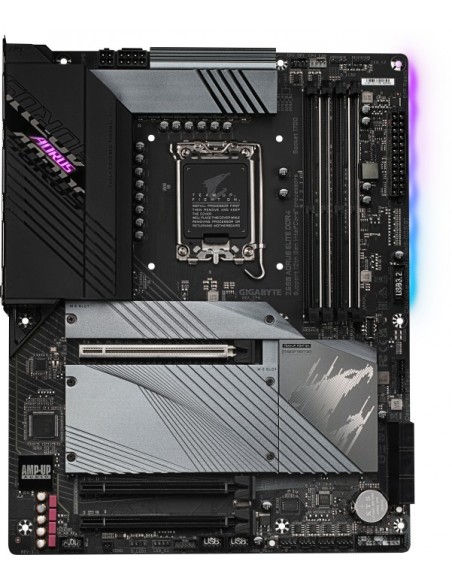

GIGABYTE Z690 AORUS ELITE DDR4 1.0, Motherboard (Z690 AORUS ELITE DDR4)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
20
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
20
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
2,00 €
.
•shape factor:ATX
•Socket:Intel 1700
•chipset:Intel Z690
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR4 DIMM dual PC4-42666U/DDR4-5333 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 2x PCIe 30 x16 (x4) 1x M2/M-Key (PCIe 40 x4 22110/2280/2260) 2x M2/M-Key (PCIe 40 x4 22110/2280/2260) 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260)

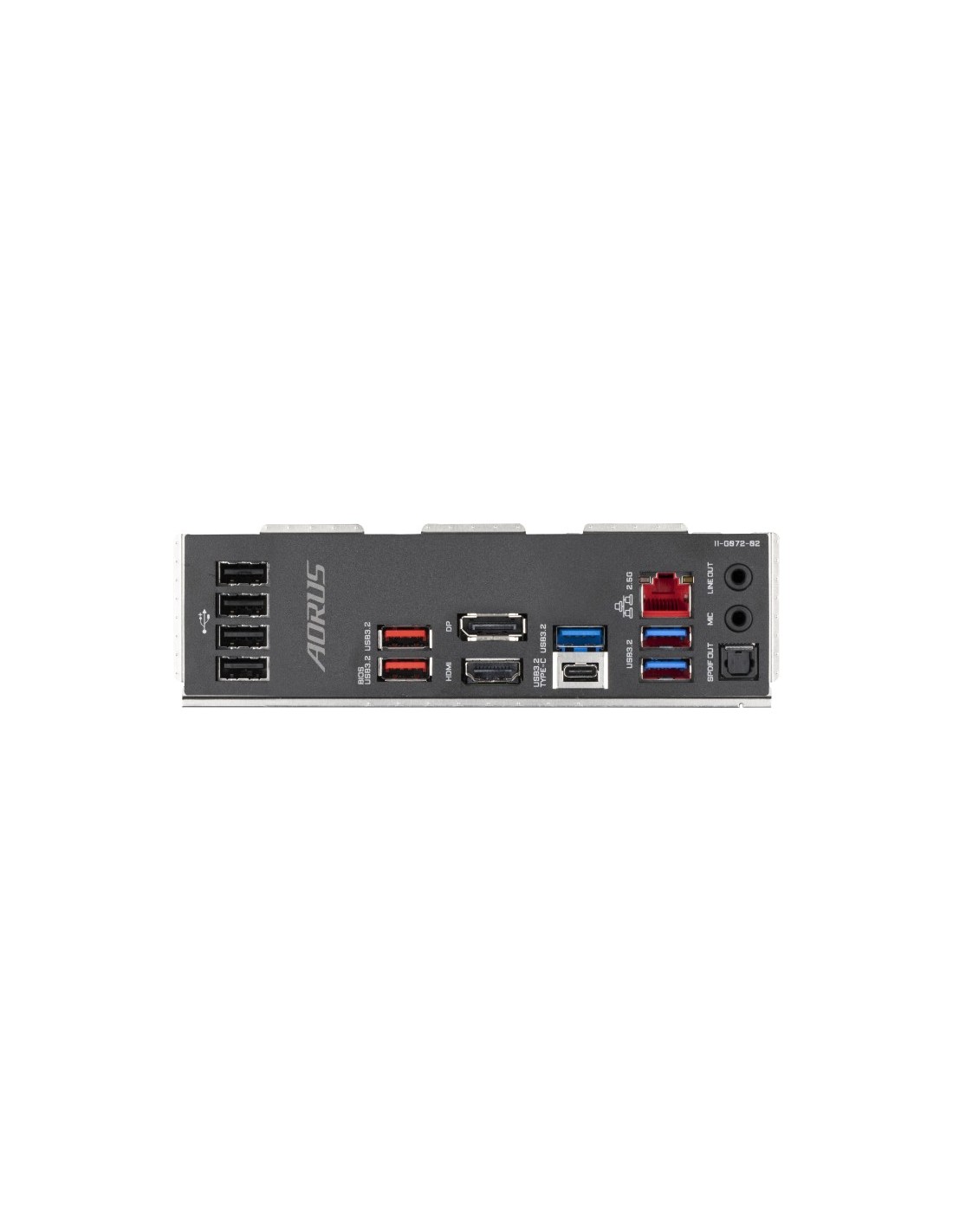

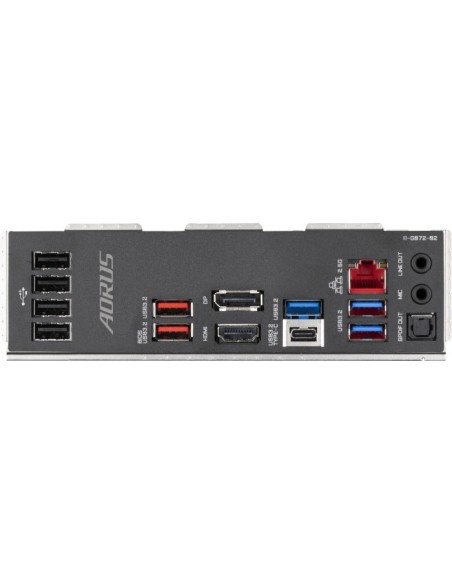

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 12 (iGPU) 1x USB-C 32 (20Gb/s Z690) 2x USB-A 31 (10Gb/s Z690) 3x USB-A 30 (5Gb/s Z690) 4x USB-A 20 (480Mb/s) 1x 25GBase-T (Realtek RTL8125BG) 2x jack 1x toslink
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s Z690) 1x USB 30 Header (5Gb/s 2x USB 30 Z690) 2x USB 20 header (480Mb/s 4x USB 20) 6x SATA 6Gb/s (Z690) 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x RTD3-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 3x fan 4-Pin 1x fan/pump 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 2A) 2x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:Reset-Button (internal) USB BIOS Flashback/Q-Flash Plus (internal)
•Audio:71 (Realtek ALC1220)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (Z690)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•VRM:17 virtual phases (16+1) 17 real phases (16+1) PWM-Controller: RAA229131 (max 20 phases)
•MOSFETs CPU:16x 70A FMDMF5062
•MOSFETs SoC:1x 60A NCP303160
•Lighting:RGB 2 zones (I/O cover page right)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 4x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- Z690 AORUS ELITE DDR4
No reviews
