•shape factor:ATX
•Socket:Intel 1700
•chipset:Intel Z690
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR4 DIMM dual PC4-40000U/DDR4-5000 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 1x PCIe 40 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4 2280/2260) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242/2230) 1x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242) 1x M2/E-Key (PCIe/Intel CNVi 2230)

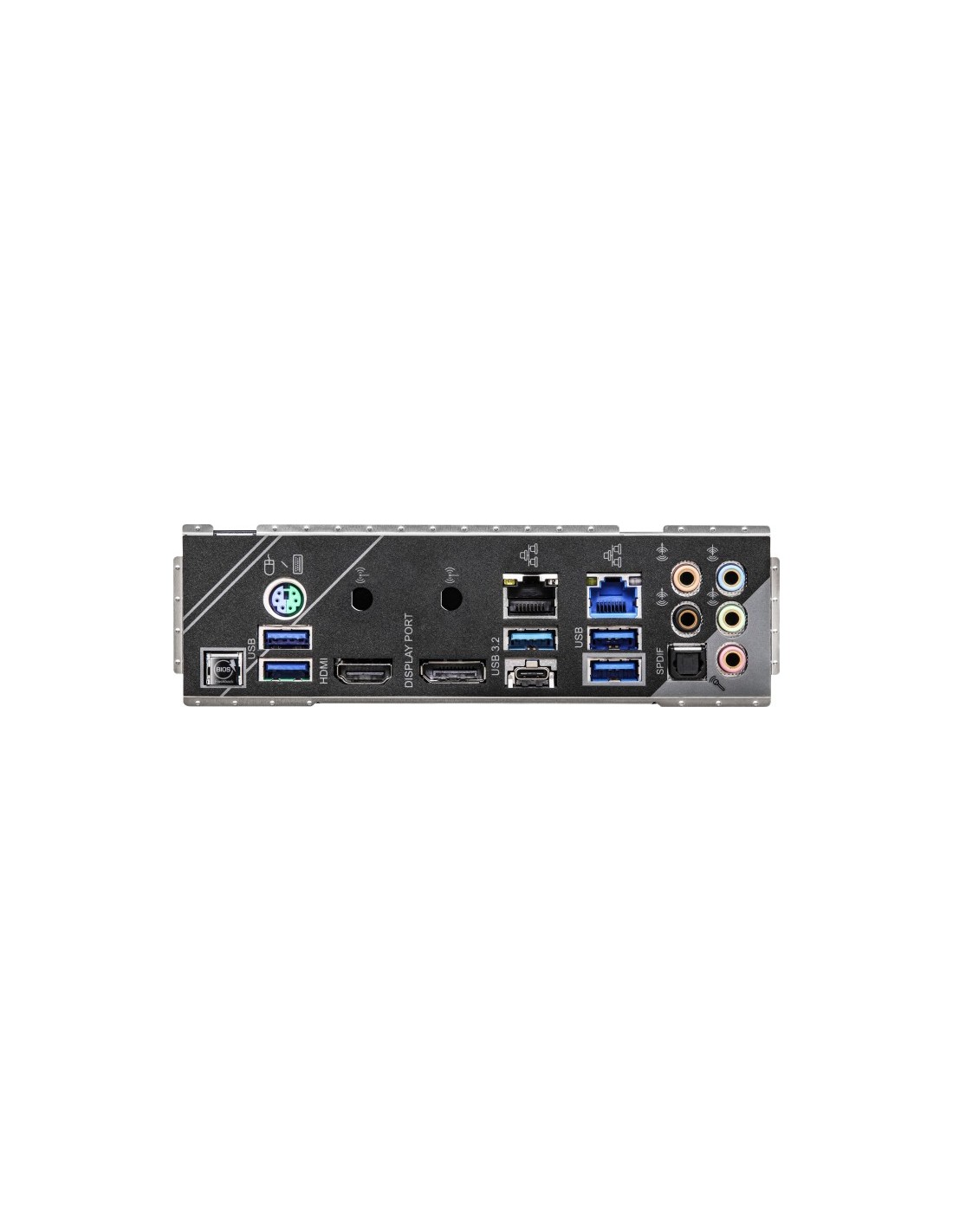

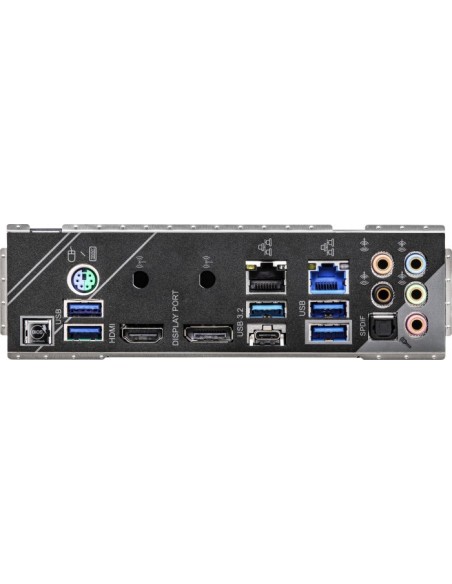

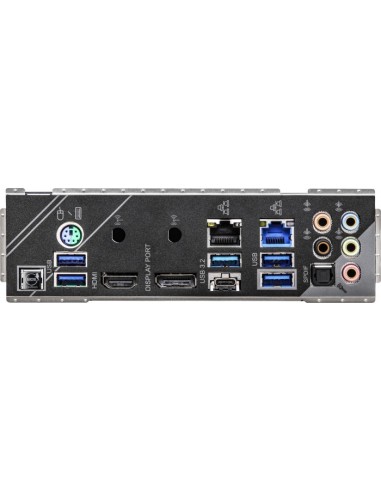

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 31 (10Gb/s Z690) 1x USB-A 31 (10Gb/s Z690) 4x USB-A 30 (5Gb/s Z690) 1x 25GBase-T (Realtek RTL8125BG) 1x Gb LAN (Intel I219-V) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 32 Key-A Header (20Gb/s Z690) 2x USB 30 Header (5Gb/s 4x USB 30 Z690 via Hub ASM1074) 2x USB 20 header (480Mb/s 4x USB 20) 8x SATA 6Gb/s (Z690) 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 5x fan/pump 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:clear-CMOS-Button (internal) USB BIOS Flashback (external)
•Audio:71 (Realtek ALC1220)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (Z690)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 2x 8-Pin EPS12V
•Lighting:RGB 1 zone (chipset cooler)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 2x M2-passive cooler incl Graphics Cards-Mounting onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90-MXBHN0-A0UAYZ
No reviews
