•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel B660
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 2280) 1x M2/E-Key (PCIe/Intel CNVi 2230)

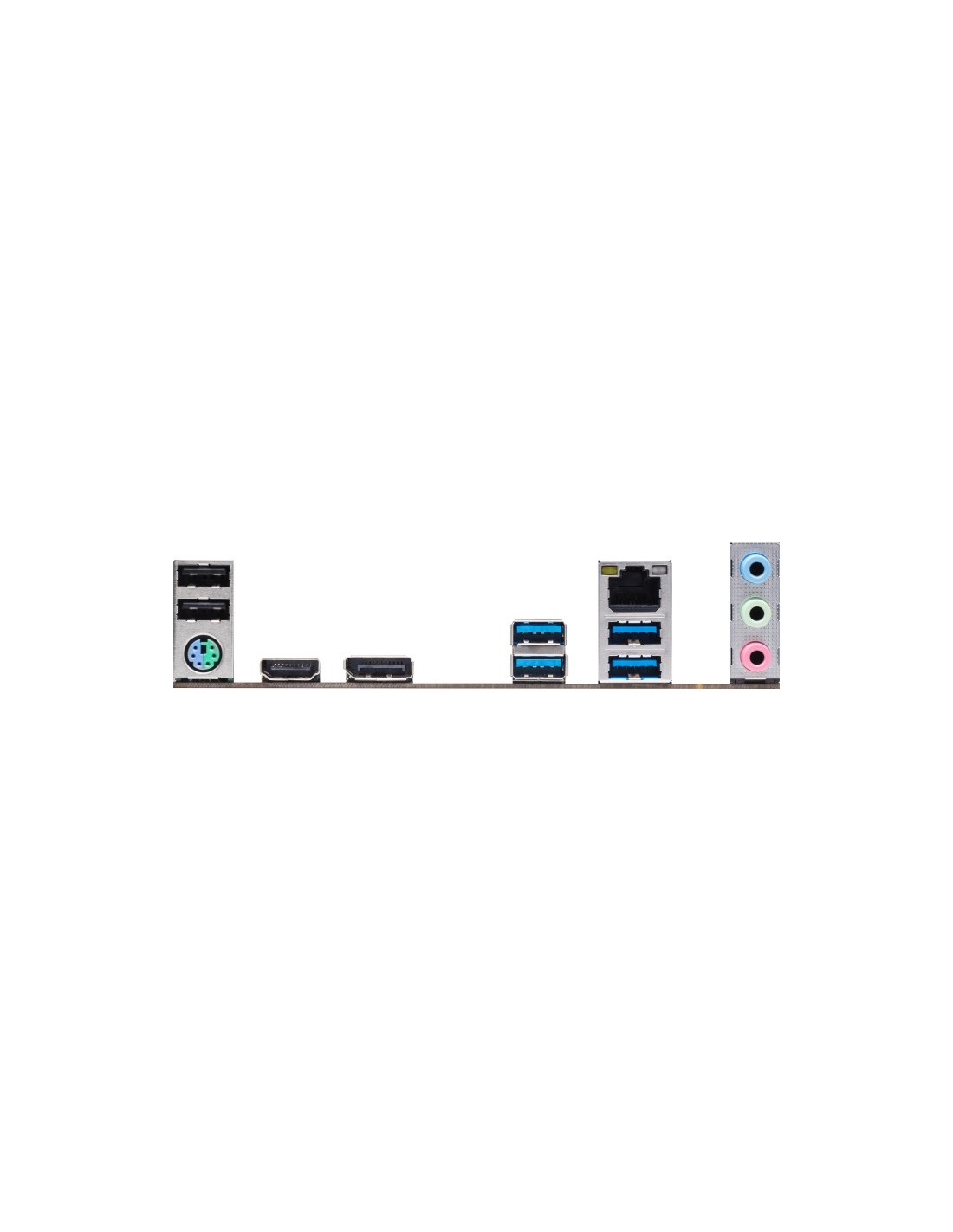

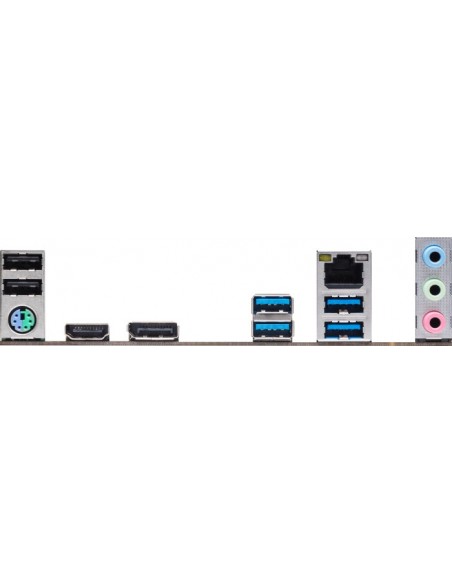

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 4x USB-A 30 (5Gb/s B660) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Intel I219-V) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB-C 30 Key-A Header (5Gb/s B660) 1x USB 30 Header (5Gb/s 2x USB 30 B660) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B660) 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x Speaker-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 3x fan/pump 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (B660)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:16 virtual phases (14+2) 8 real phases (7+1) PWM-Controller: RT3628AE (max 9 phases)
•MOSFETs CPU:14x 48A SM4508/SM4373
•MOSFETs SoC:2x 48A SM4508/SM4373
•Lighting:RGB 1 zone (page right)
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 1x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90-MXBGW0-A0UAYZ
