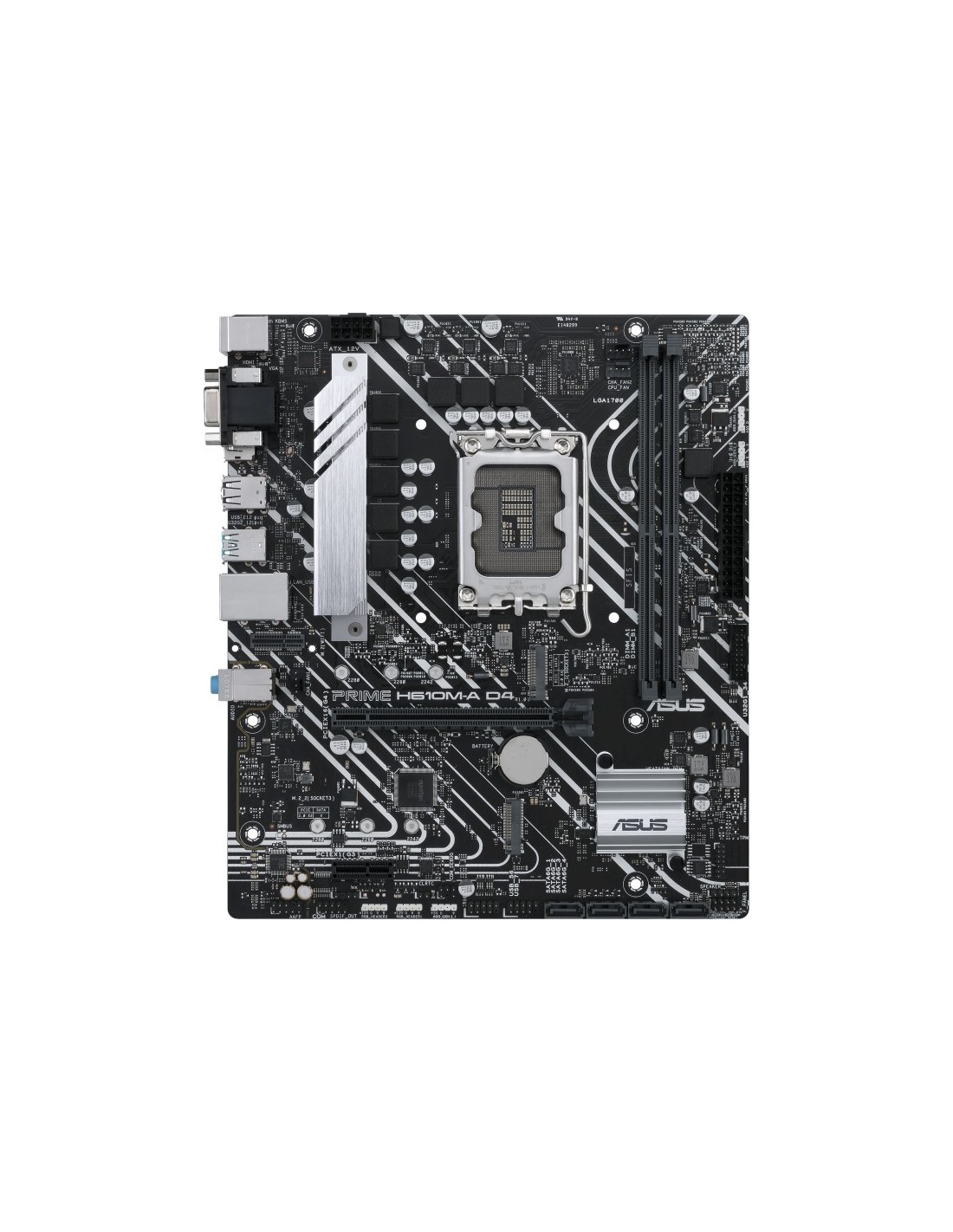

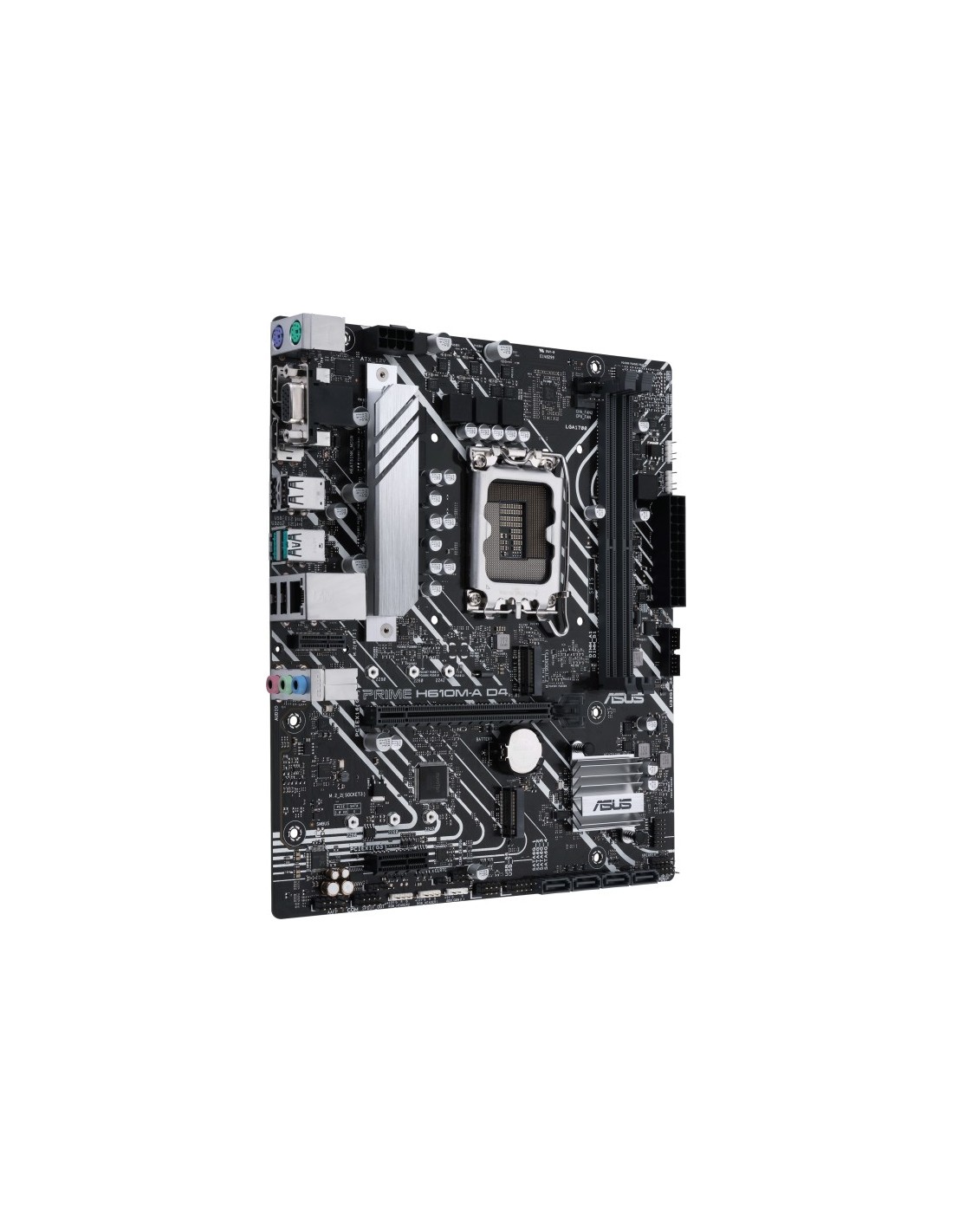

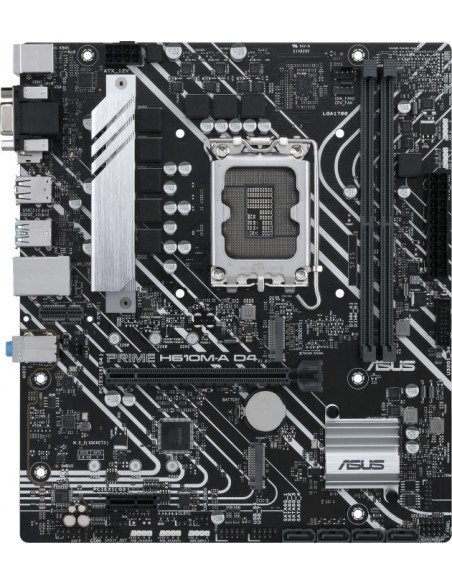

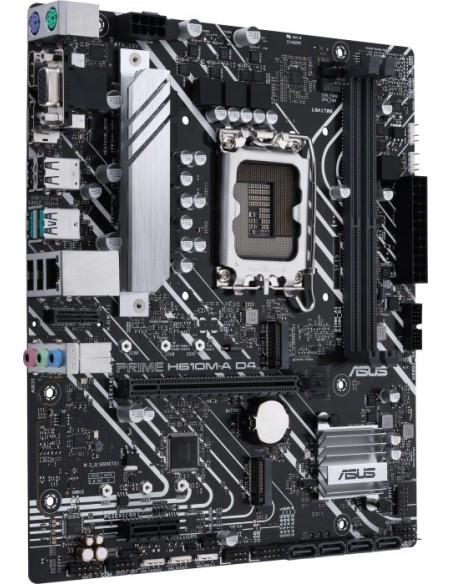

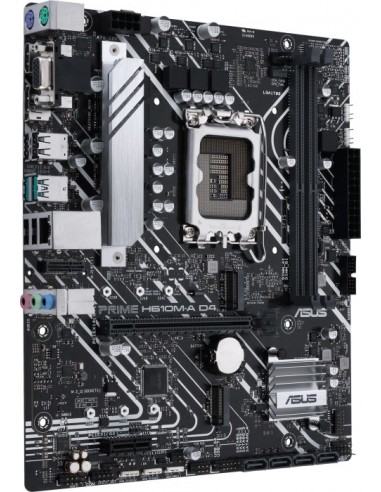

ASUS PRIME H610M-A D4-CSM, motherboard (90MB19P0-M0EAYC)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
10
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
10
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,00 €
.
•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel H610
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:2x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4 2280/2260/2242) 1x M2/M-Key (PCIe 30 x2 2280/2260/2242) 1x M2/E-Key (PCIe/Intel CNVi 2230)

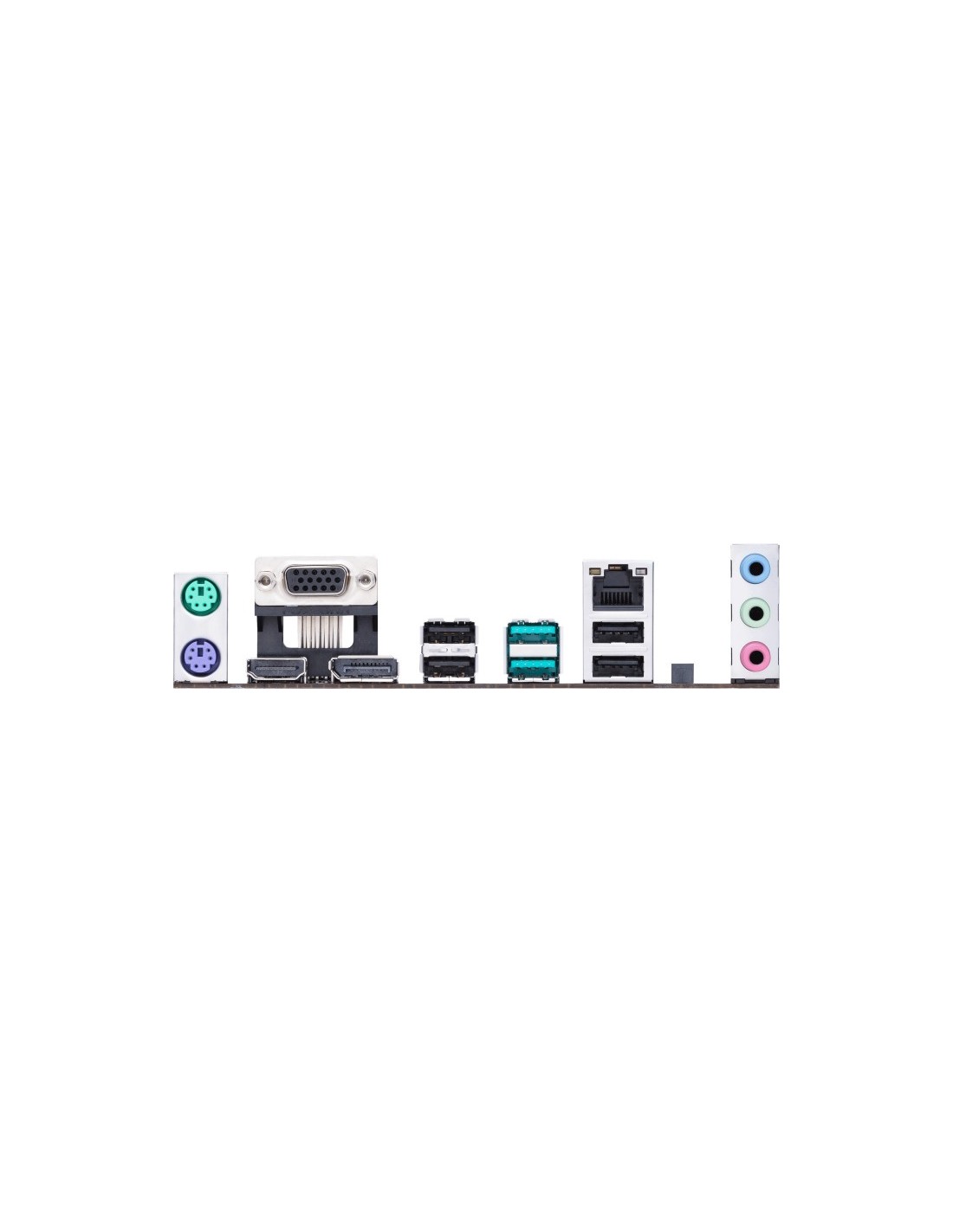

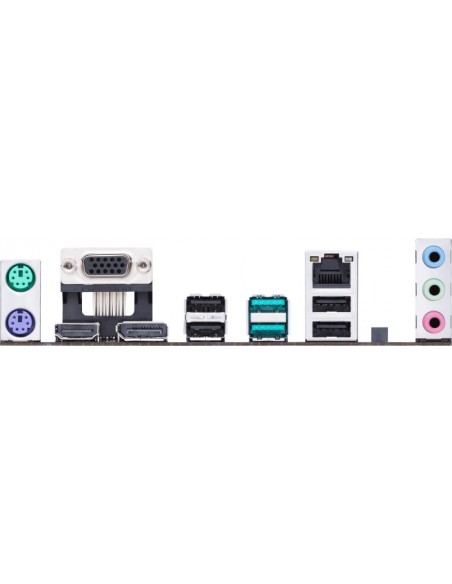

•external connectors:1x VGA (iGPU) 1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 2x USB-A 31 (10Gb/s H610) 4x USB-A 20 (480Mb/s) 1x Gb LAN (Intel I219-V) 3x jack 1x PS/2 keyboard 1x PS/2 mouse
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30 H610) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (H610) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header 1x COM Debug-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:not available
•Audio:71 (Realtek)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:7 virtual phases (6+1) 7 real phases (6+1) PWM-Controller: ASP2100 (RT3628AE max 9 phases)
•MOSFETs CPU:6x 64A SiRA14BDP/SiRA12BDP
•MOSFETs SoC:1x 64A SiRA14BDP/2x SiRA12BDP
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (incl CSM-program)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB19P0-M0EAYC
No reviews
