•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel H610
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:2x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242)

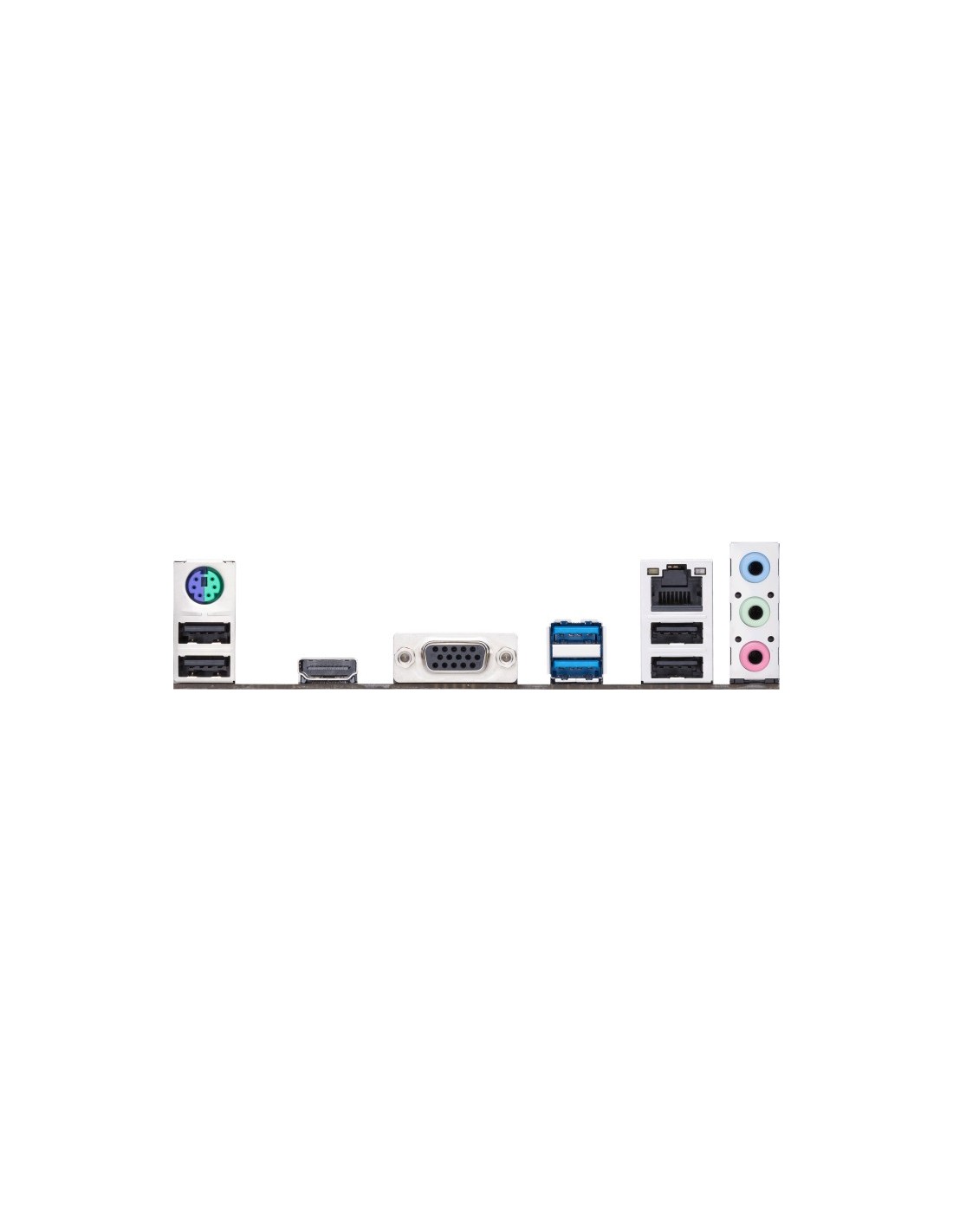

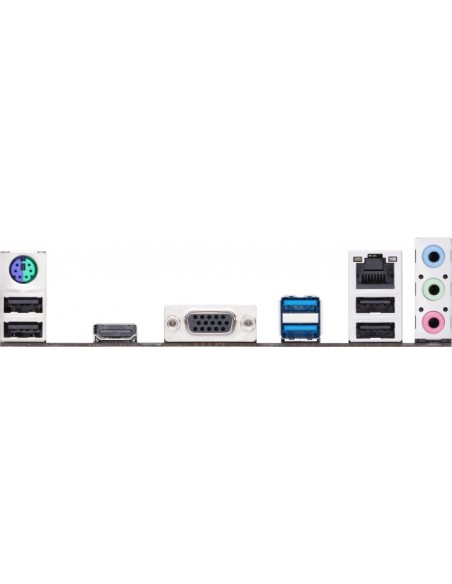

•external connectors:1x VGA (iGPU) 1x HDMI 21 (iGPU) 2x USB-A 30 (5Gb/s H610) 4x USB-A 20 (480Mb/s) 1x Gb LAN (Realtek) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30 H610) 1x USB 20 header (480Mb/s 2x USB 20) 4x SATA 6Gb/s (H610) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header 1x COM Debug-Header
•Header Cooling:1x CPU fan 4-Pin 1x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:7 virtual phases (6+1) 7 real phases (6+1) PWM-Controller: ASP2100 (RT3628AE max 9 phases)
•MOSFETs CPU:6x 64A SiRA14BDP/SiRA12BDP
•MOSFETs SoC:1x 64A SiRA14BDP/2x SiRA12BDP
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB1A10-M0EAY0
No reviews
