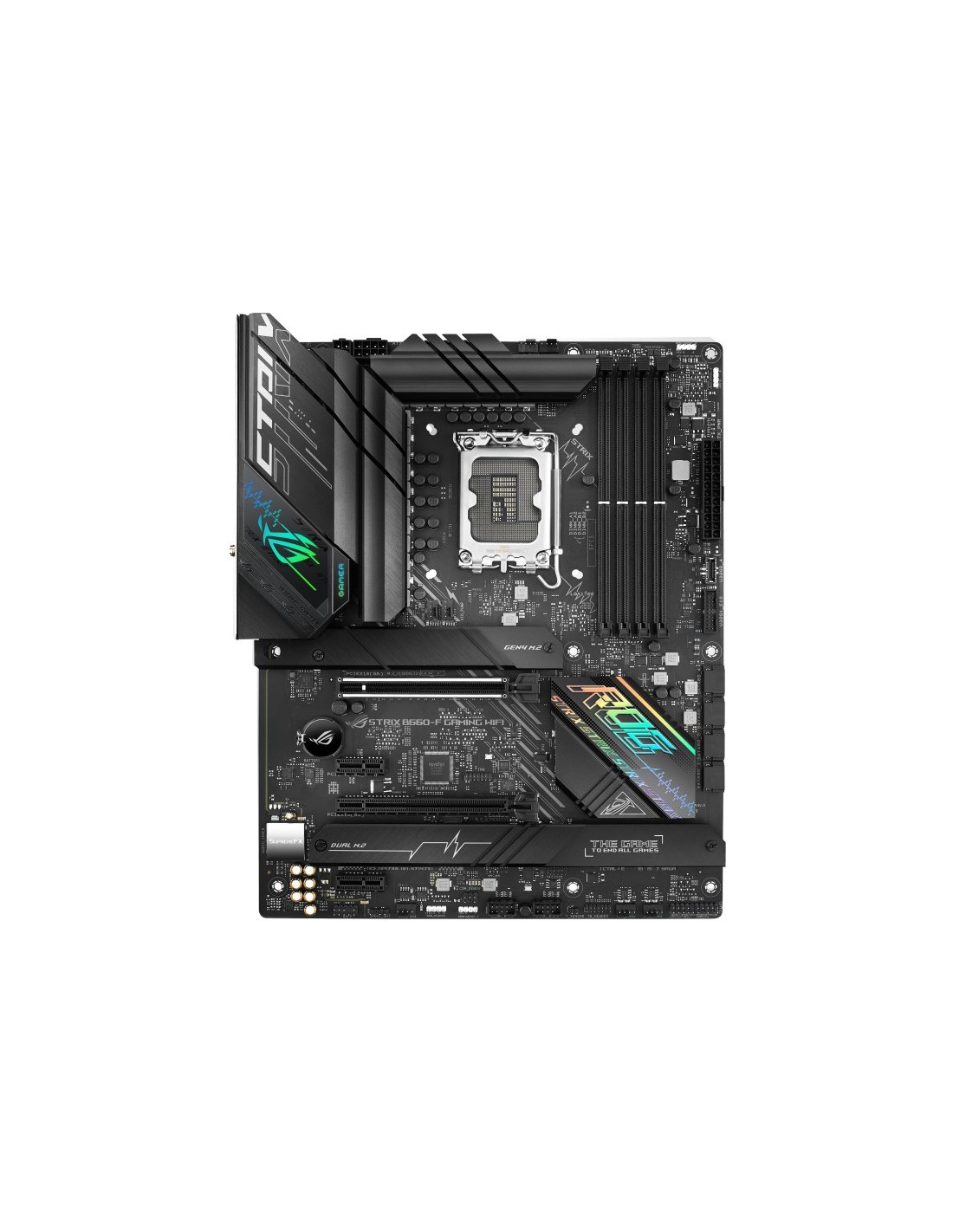

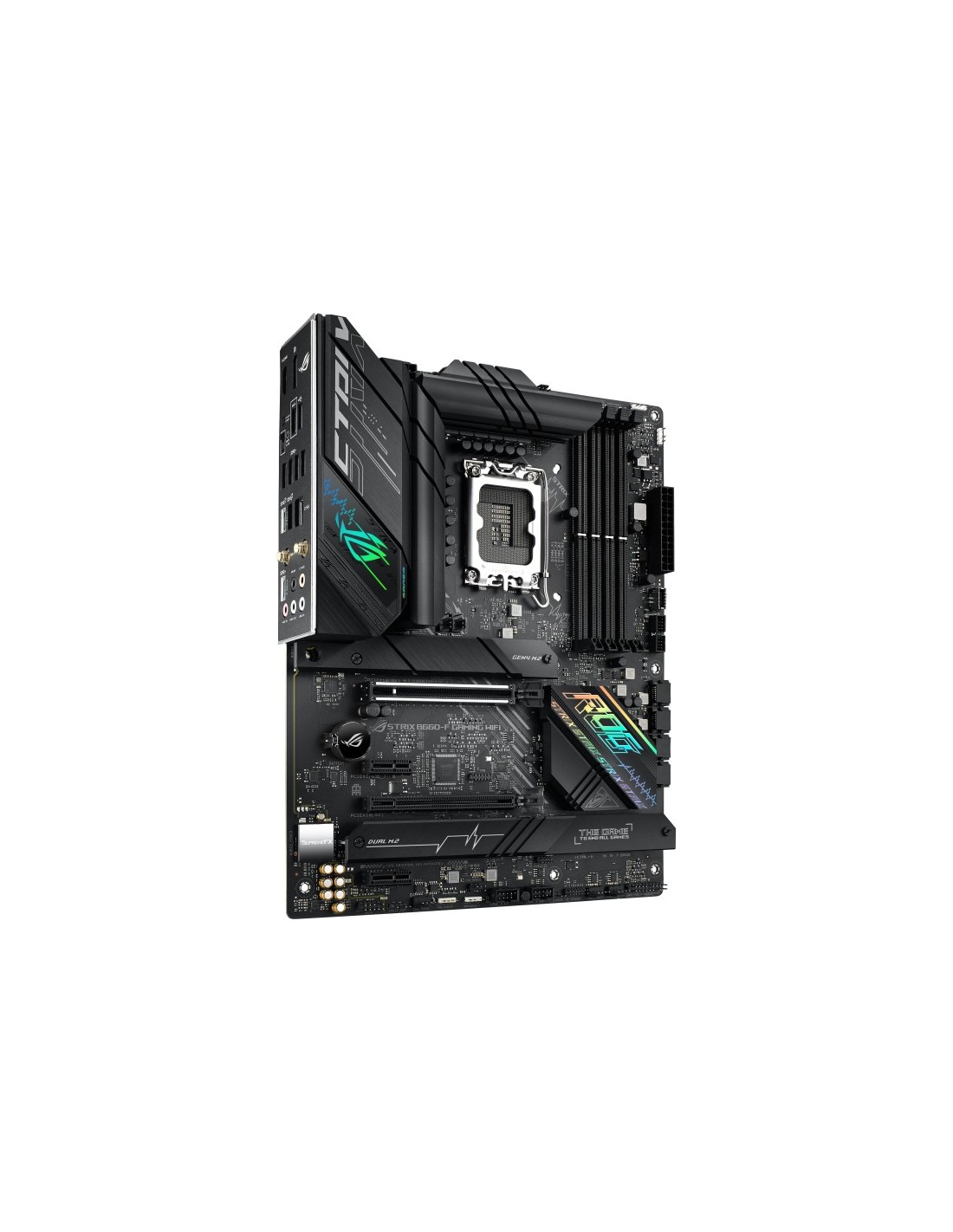

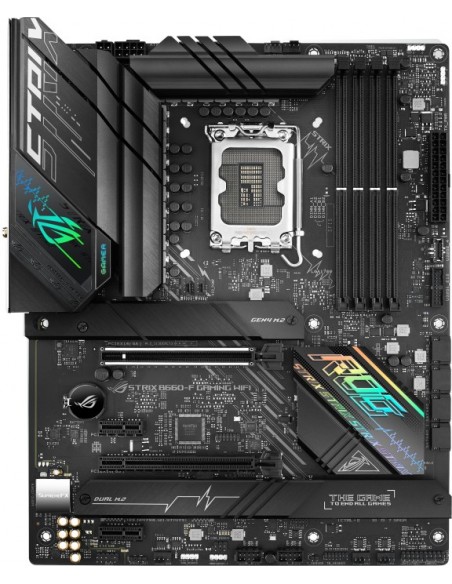

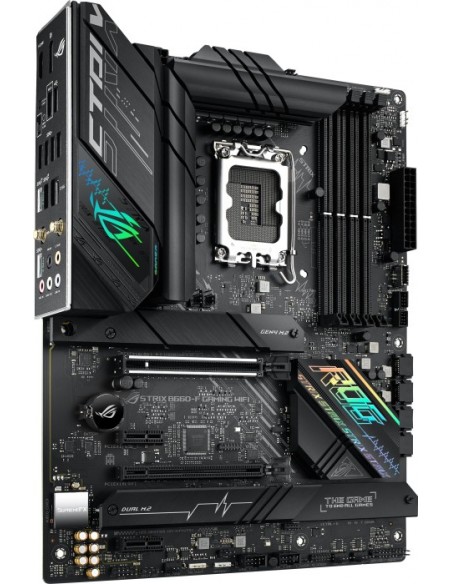

ASUS ROG STRIX B660-F GAMING WIFI, Motherboard (90MB18R0-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
22
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
22
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
2,20 €
.
•shape factor:ATX
•Socket:Intel 1700
•chipset:Intel B660
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR5 DIMM dual PC5-48000U/DDR5-6000 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 1x PCIe 30 x16 (x4) 2x PCIe 30 x1 2x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x4 2280/2260/2242)

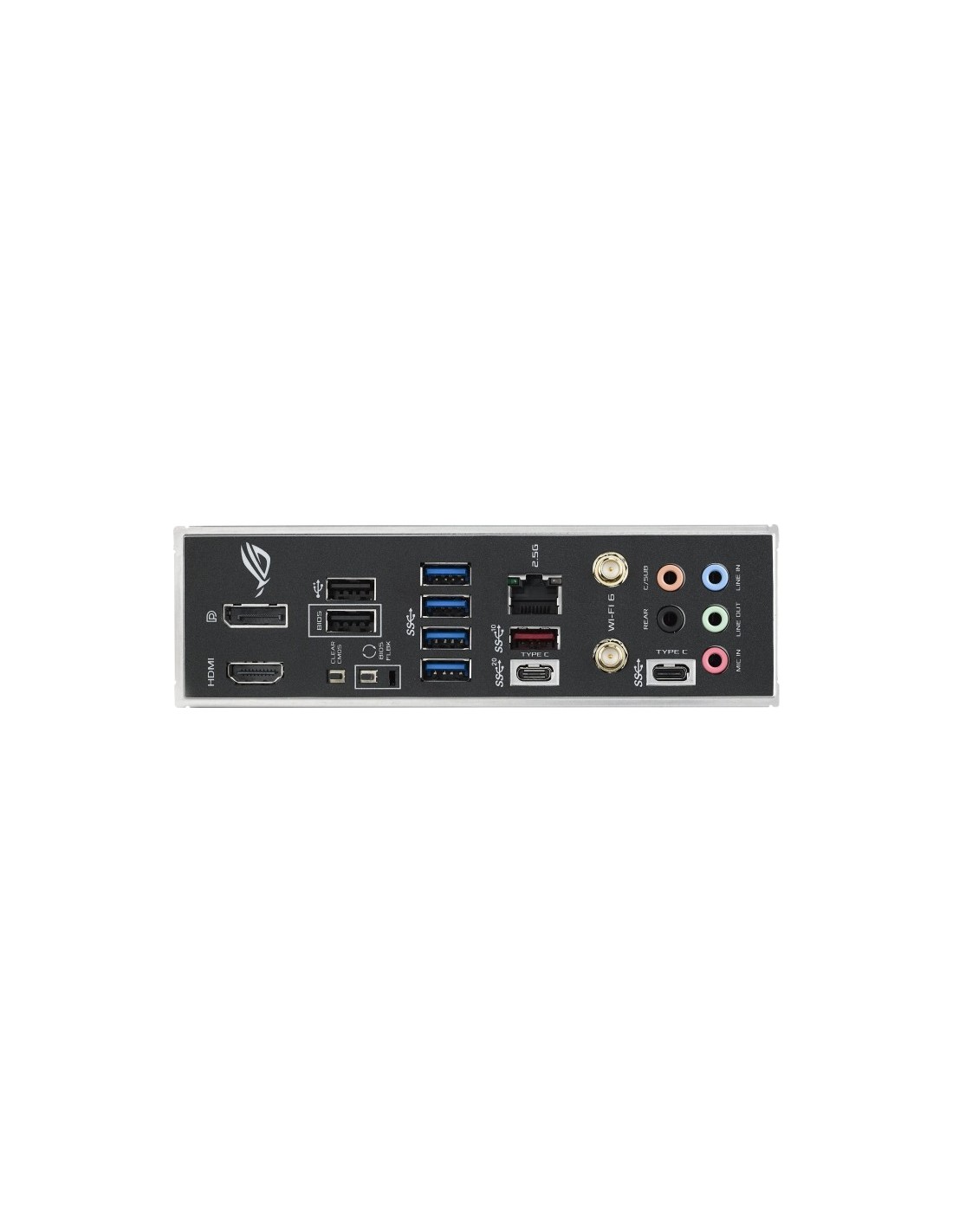

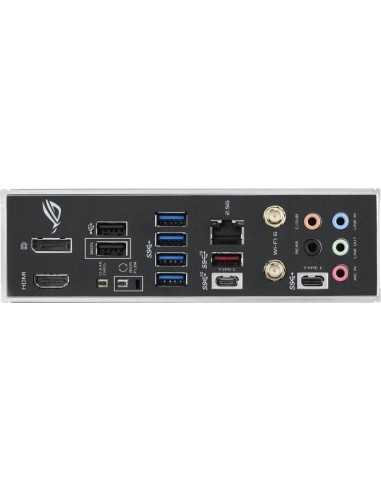

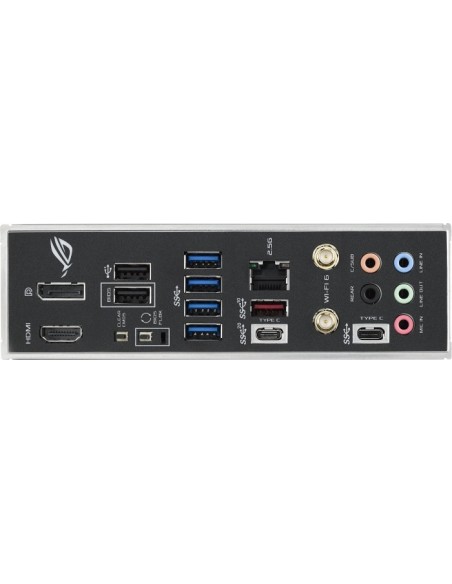

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 32 (20Gb/s B660) 1x USB-A 31 (10Gb/s B660) 1x USB-C 30 (5Gb/s B660) 4x USB-A 30 (5Gb/s B660) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Intel I225-V) 5x jack
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s B660) 1x USB 30 Header (5Gb/s 2x USB 30 B660) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B660) 1x Thunderbolt-Header 13-Pin 1x TPM-Header 1x S/PDIF-Header 1x Chassis Intrusion-Header
•Header Cooling:2x CPU fan 4-Pin 4x fan 4-Pin 1x AIO-pump 4-Pin 1x Thermal-sensor
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:clear-CMOS-Button (external) USB BIOS Flashback (external)
•Audio:71 (Realtek ALC4080/ASUS SupremeFX) AMP (Savitech SV3H712) DTS Sound Unbound
•Graphics:iGPU
•Wireless:Wi-Fi 6 (WLAN 80211a/b/g/n/ac/ax 2x2) Bluetooth 52
•RAID level:0/1/5/10 (B660)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Lighting:RGB 1 zone (I/O cover)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 3x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Link
•Note:Compatible with socket 115x/1200-cooler Durch Unterschiede the Z-height (stack-Up-Height) reduced sich however the contact pressure and therewith the cooling capacit
- SKU - Κωδικός Εργοστασίου
- 90MB18R0-M0EAY0
