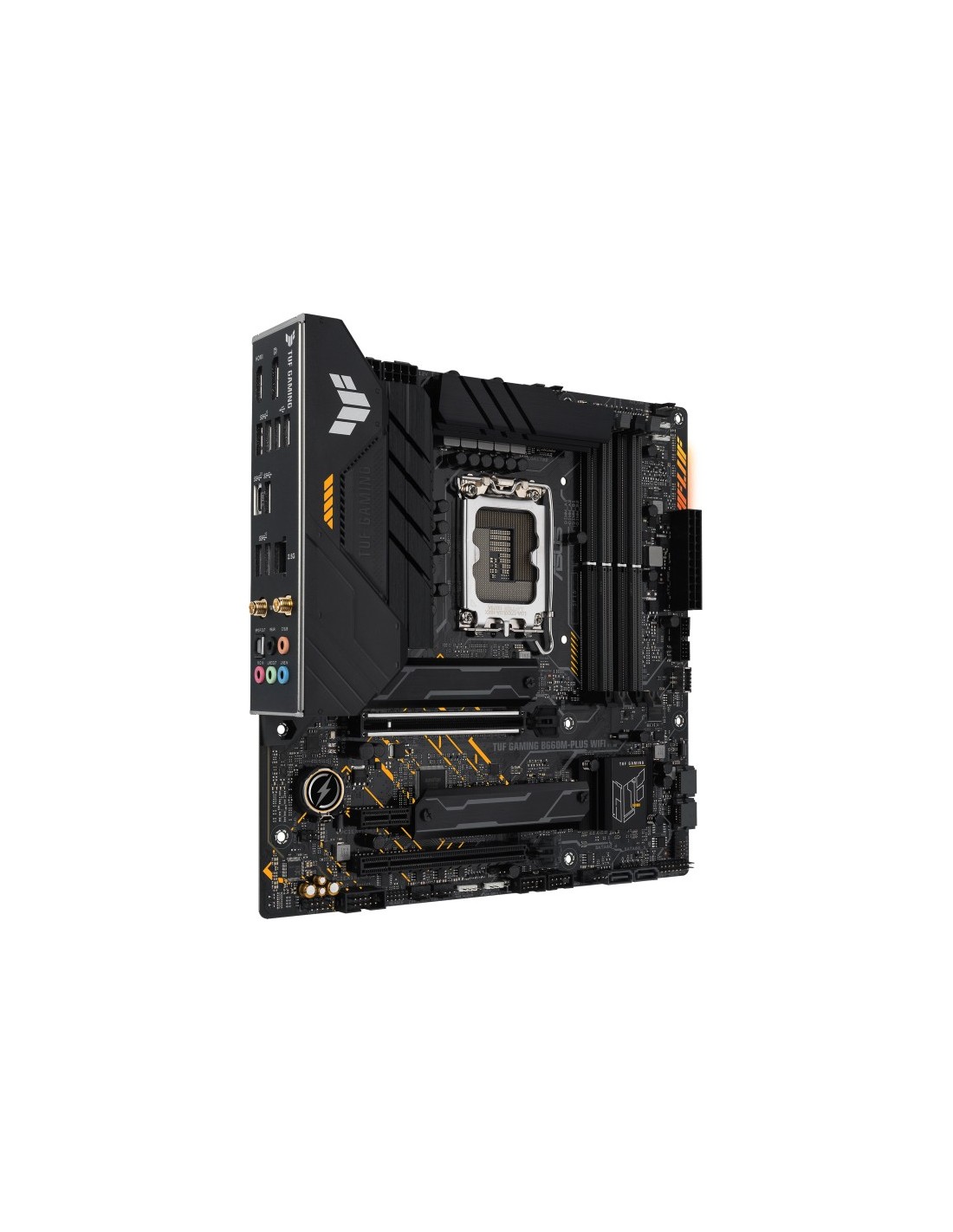

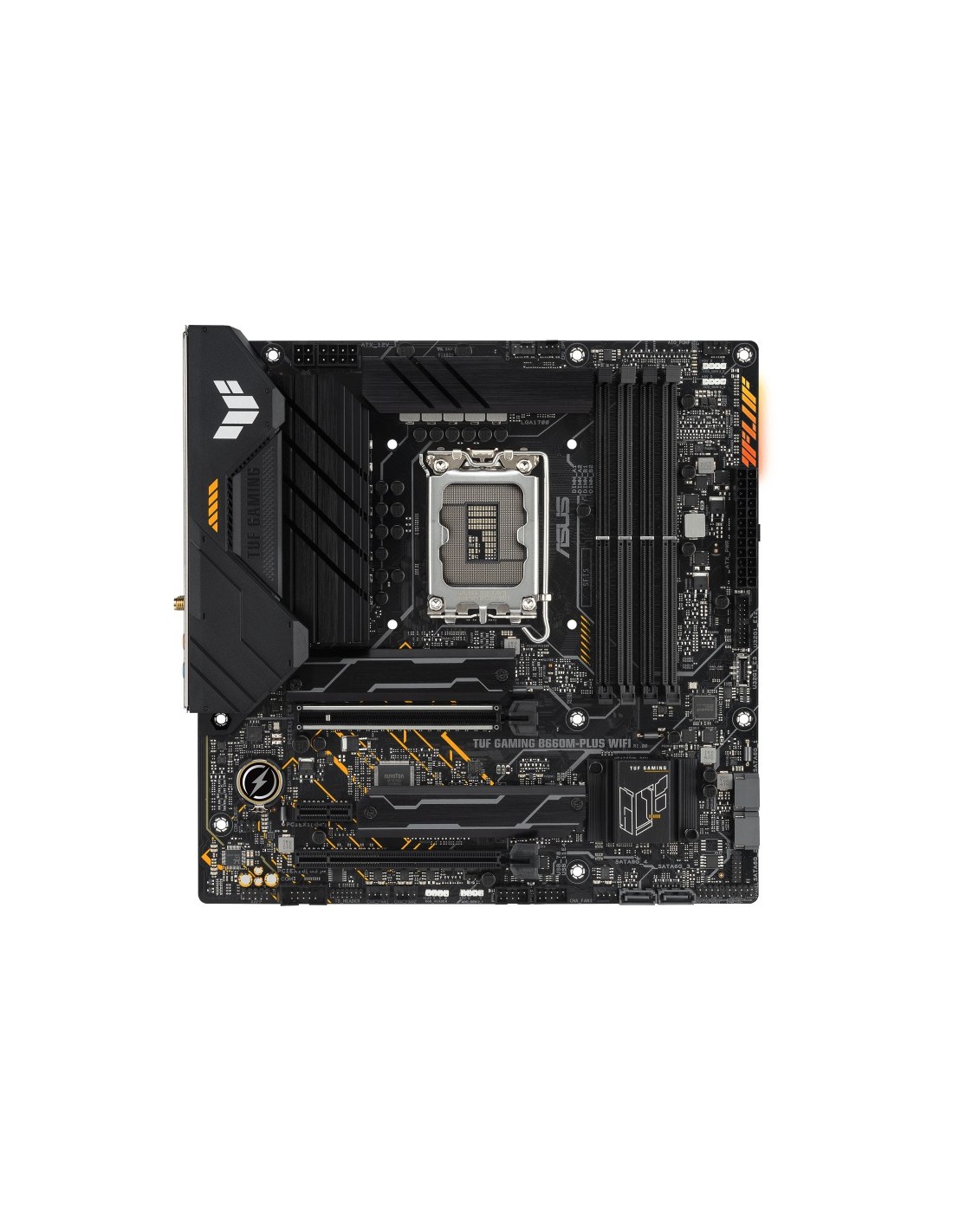

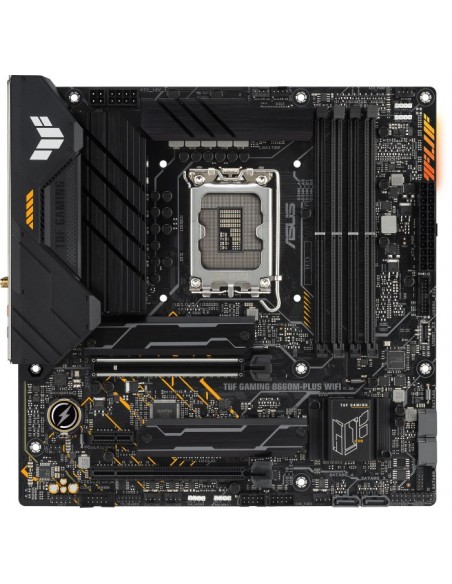

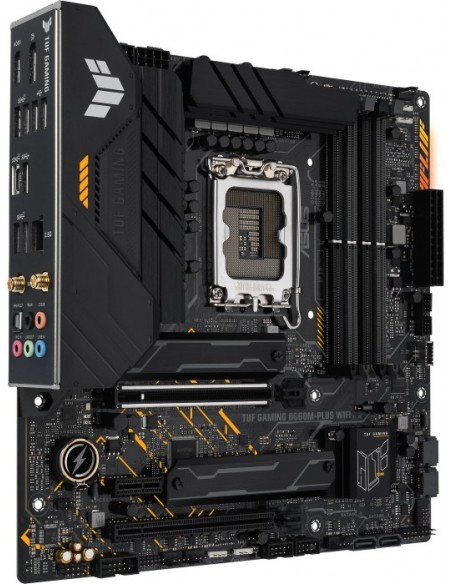

ASUS TUF GAMING B660M-PLUS WIFI, Motherboard (90MB1AZ0-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
17
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
17
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,70 €
.
•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel B660
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:4x DDR5 DIMM dual PC5-48000U/DDR5-6000 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 50 x16 1x PCIe 40 x1 1x PCIe 30 x16 (x4) 2x M2/M-Key (PCIe 40 x4 2280/2260/2242)

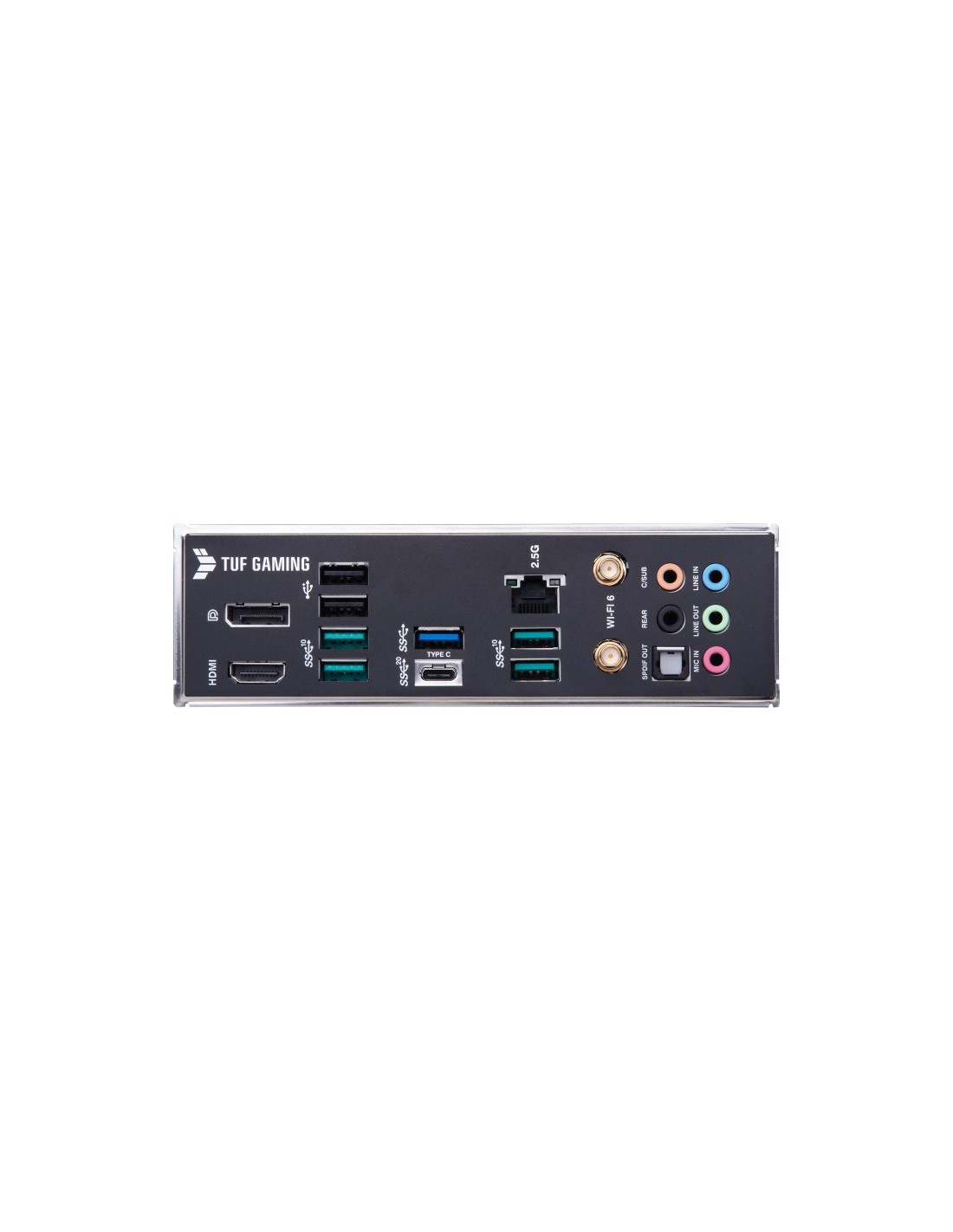

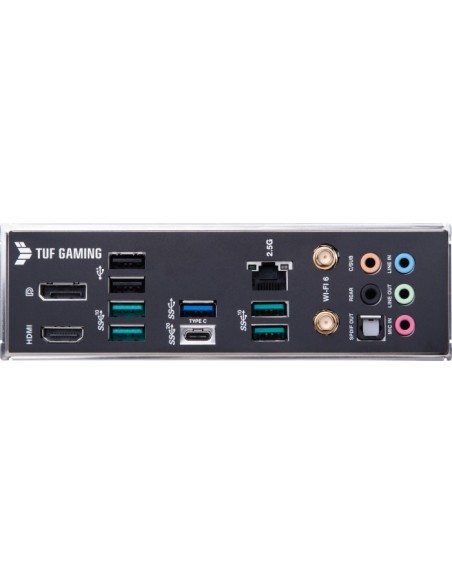

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 32 (20Gb/s B660) 4x USB-A 31 (10Gb/s B660) 1x USB-A 30 (5Gb/s B660) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Realtek) 5x jack 1x toslink
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s B660) 1x USB 30 Header (5Gb/s 2x USB 30 B660) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B660) 1x serial 1x Thunderbolt-Header 13-Pin 1x Chassis Intrusion-Header 1x COM Debug-Header
•Header Cooling:2x CPU fan 4-Pin 3x fan 4-Pin 1x AIO-pump 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:Wi-Fi 6 (WLAN 80211a/b/g/n/ac/ax 2x2) Bluetooth 52
•RAID level:0/1/5/10 (B660)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•VRM:11 virtual phases (10+1) 6 real phases (5+1) PWM-Controller: ASP2100 (RT3628AE max 9 phases)
•MOSFETs CPU:10x 50A SiC654
•MOSFETs SoC:1x 60A SiC643
•Lighting:RGB 1 zone (page right)
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors I/O-shield integrated 1x M2-passive cooler onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB1AZ0-M0EAY0
