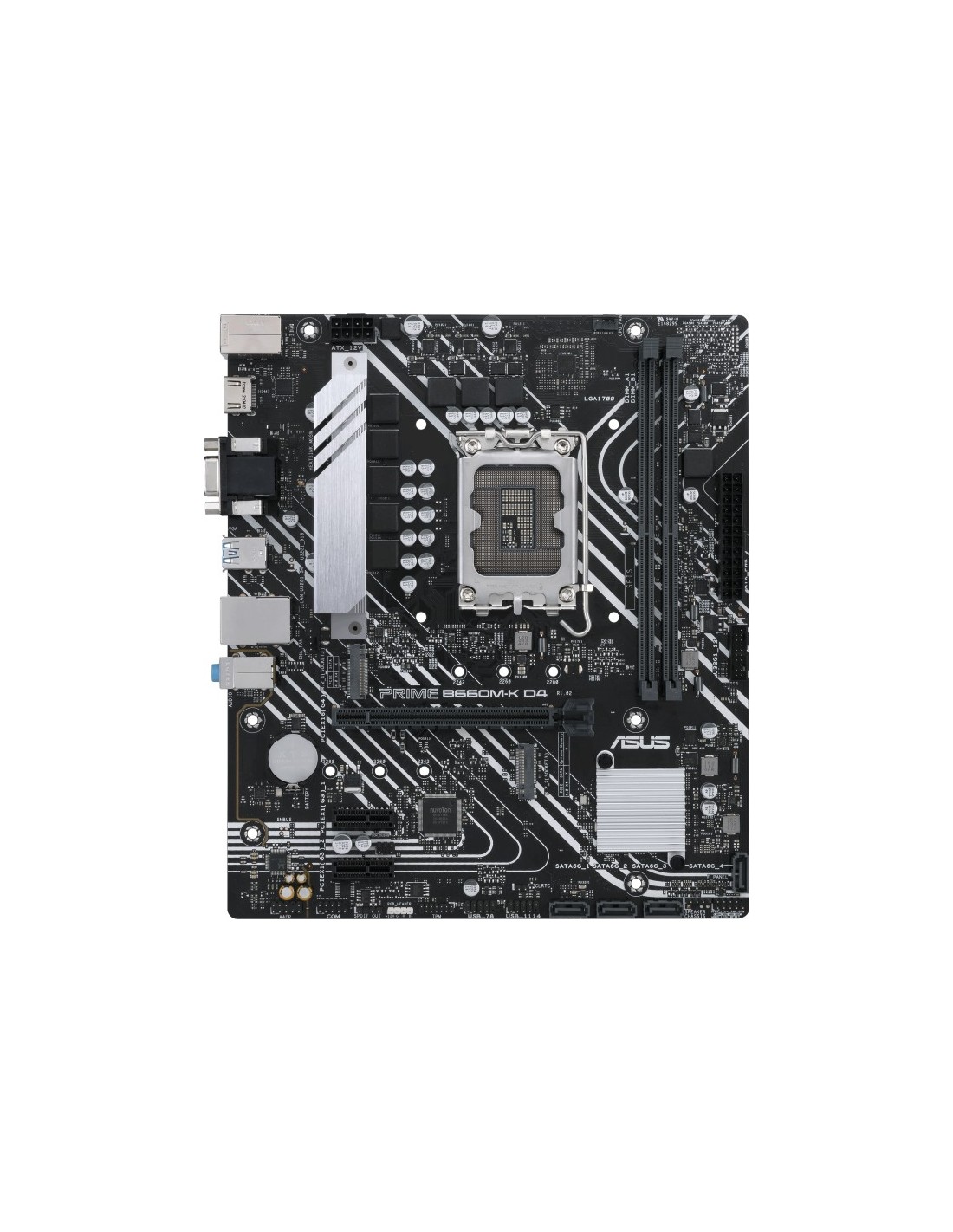

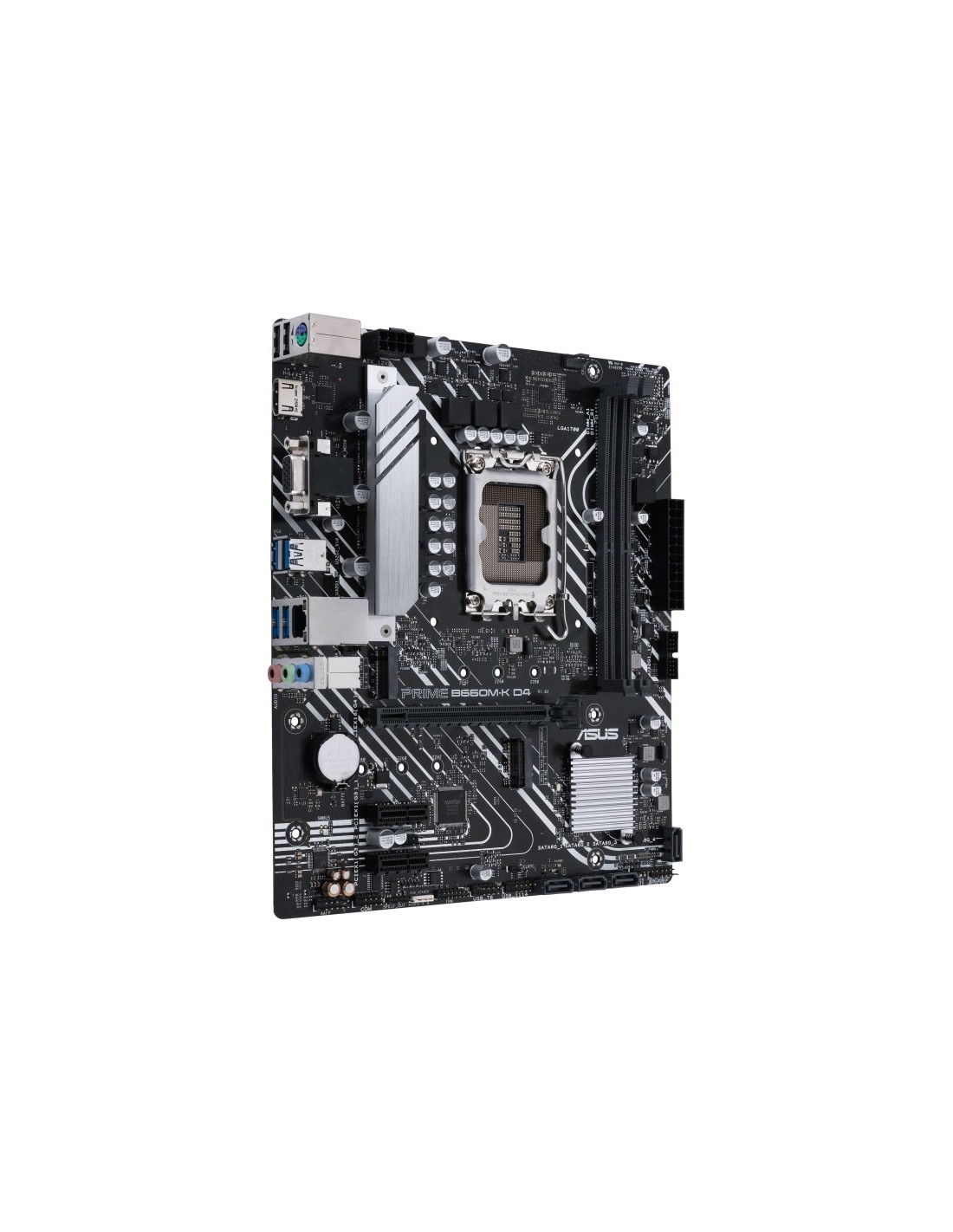

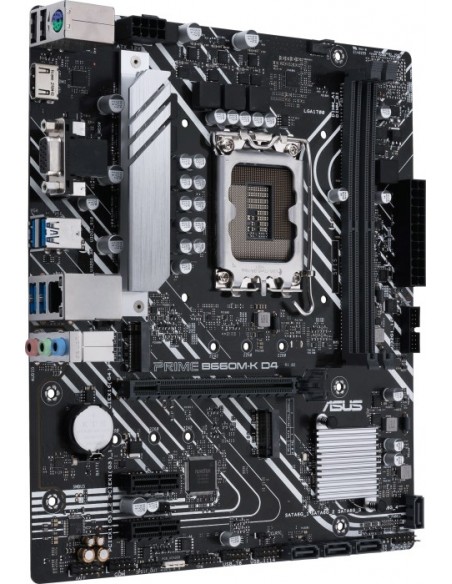

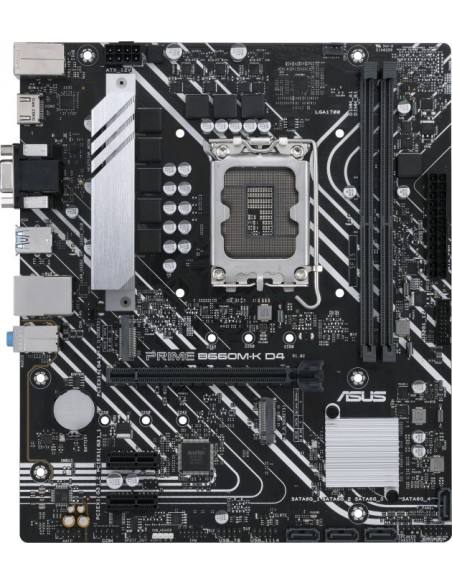

ASUS PRIME B660M-K D4, motherboard (90MB1950-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
8
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
8
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
0,80 €
.
•shape factor:µATX
•Socket:Intel 1700
•chipset:Intel B660
•CPU-Compatibility:Core i-12000 Pentium Gold G7000 Celeron G6000
•RAM:2x DDR4 DIMM dual PC4-42666U/DDR4-5333 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x1 2x M2/M-Key (PCIe 40 x4 2280/2260/2242)

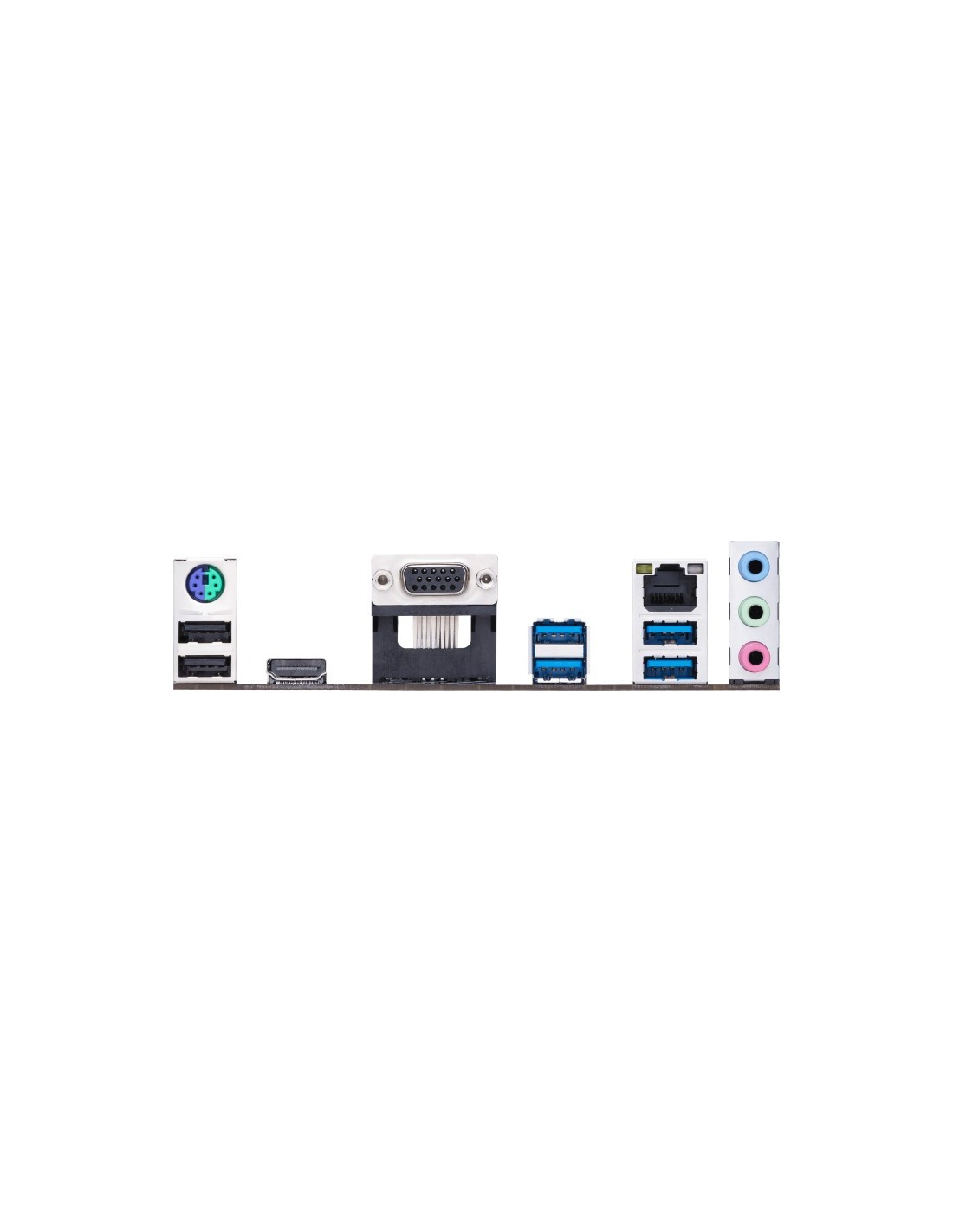

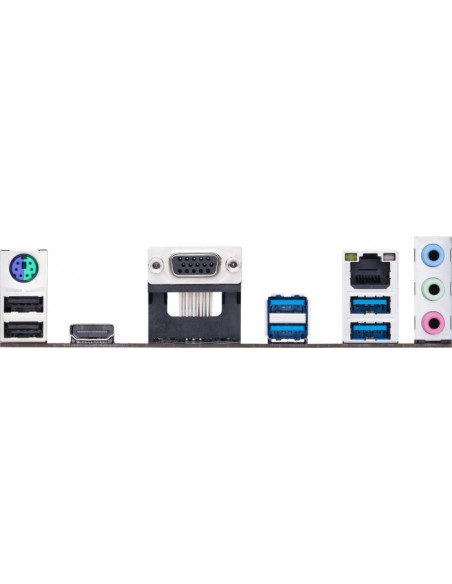

•external connectors:1x VGA (iGPU) 1x HDMI 21 (iGPU) 4x USB-A 30 (5Gb/s B660) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Realtek) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30 B660) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B660) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header 1x Chassis Intrusion-Header 1x COM Debug-Header
•Header Cooling:1x CPU fan 4-Pin 1x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (B660)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:7 virtual phases (6+1) 7 real phases (6+1) PWM-Controller: RT3628AE (max 9 phases)
•MOSFETs CPU:6x 46A 4C10C/4C06B
•MOSFETs SoC:1x 46A 4C10C/2x 4C06B
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB1950-M0EAY0
