•shape factor:ATX
•Socket:Intel 1200
•chipset:Intel Z590
•CPU-Compatibility:Core i-11000 (Rocket Lake-S) Core i-11000 (Comet Lake-S Refresh) Core i-10000 Pentium Gold G6000 Celeron G5000
•VRM:14 virtual phases (12+2) + System agent (14+1)
•MOSFETs CPU:12x 50A
•MOSFETs SoC:2x 50A
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 (CPU) 1x PCIe 30 x16 (x4 Z590) 3x PCIe 30 x1 (Z590) 1x M2/M-Key (PCIe 40 x4 2280/2260 CPU) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260 Z590) 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260 Z590) 1x M2/E-Key (PCIe/Intel CNVi 2230)

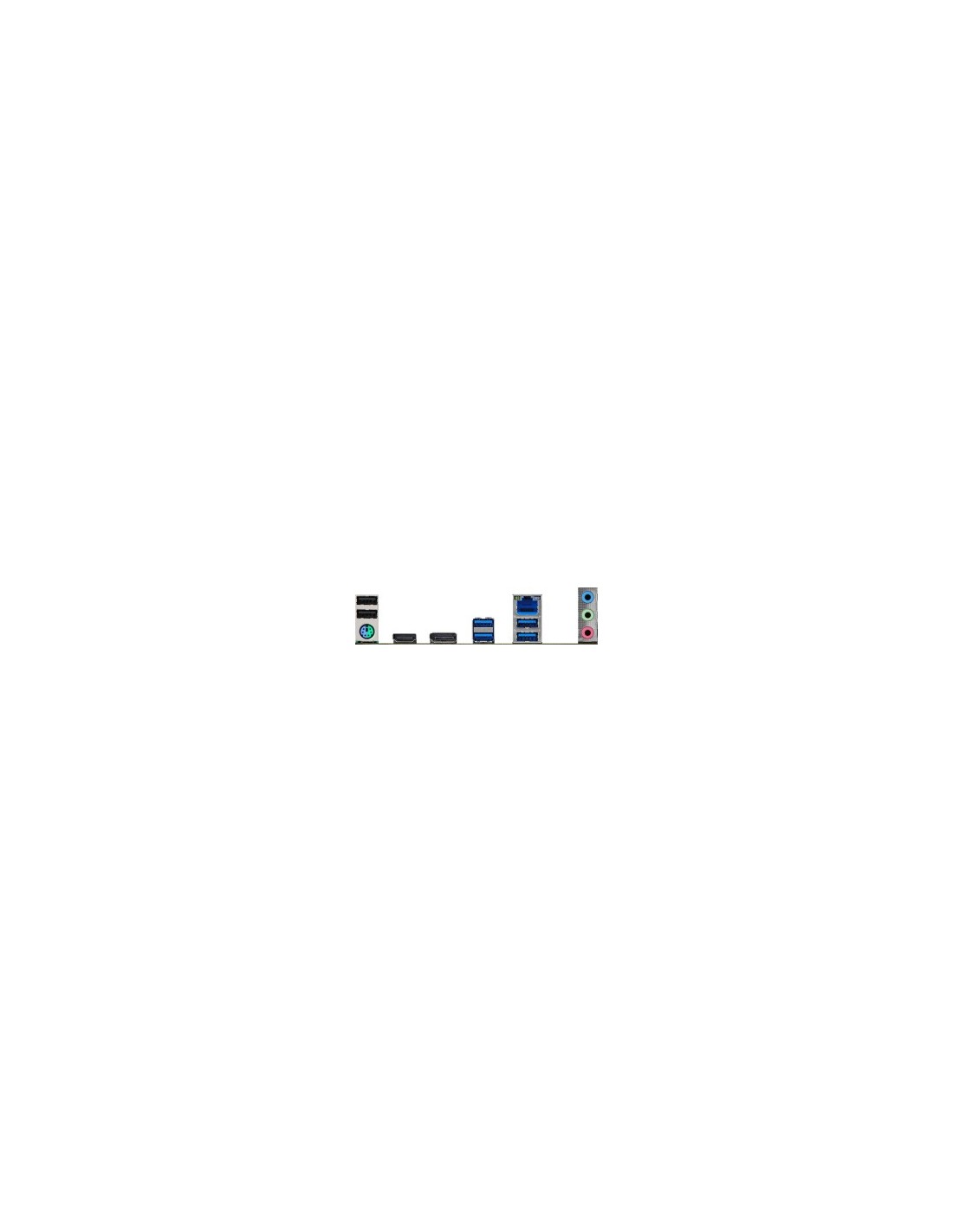

•external connectors:1x HDMI 20b (iGPU) 1x DisplayPort 14 (iGPU) 2x USB-A 31 (10Gb/s Z590) 2x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Realtek RTL8125BG-CG) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB-C 32 Key-A Header (20Gb/s Z590) 2x USB 30 Header (5Gb/s 4x USB 30 Z590 via Hub ASM1074) 2x USB 20 header (480Mb/s 4x USB 20) 6x SATA 6Gb/s (Z590) 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 4x fan/pump 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (Z590)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Lighting:RGB 1 zone (chipset cooler)
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 1x M2-passive cooler incl Graphics Cards-Mounting
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90-MXBEJ0-A0UAYZ
