•shape factor:ATX
•Socket:Intel 1200
•chipset:Intel Z590
•CPU-Compatibility:Core i-11000 (Rocket Lake-S) Core i-11000 (Comet Lake-S Refresh) Core i-10000 Pentium Gold G6000 Celeron G5000
•VRM:17 virtual phases (16+1) + System agent (17+1)
•MOSFETs CPU:16x 75A
•MOSFETs SoC:1x 75A
•RAM:4x DDR4 DIMM dual PC4-42666U/DDR4-5333 (OC) max 128GB (UDIMM)
•Extension slots:2x PCIe 40 x16 (1x x16 1x x8 CPU) 1x PCIe 30 x16 (x4 Z590) 2x PCIe 30 x1 (Z590) 1x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242 CPU) 2x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242 Z590)

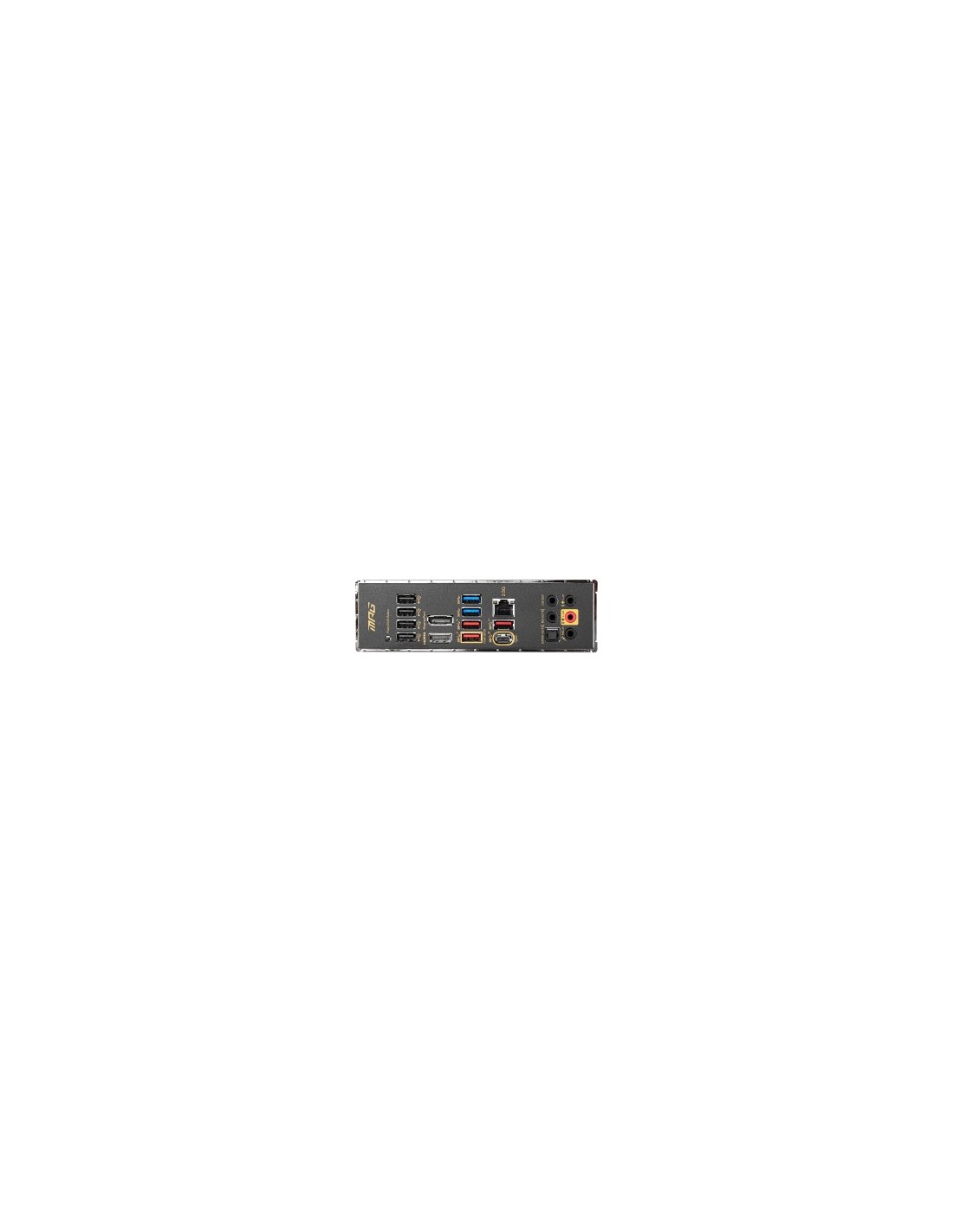

•external connectors:1x HDMI 20b (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 32 (20Gb/s Z590) 3x USB-A 31 (10Gb/s Z590) 2x USB-A 30 (5Gb/s) 4x USB-A 20 (480Mb/s Z590 via Hub GL850G) 1x 25GBase-T (Intel I225-V) 5x jack 1x toslink
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s Z590) 1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20 Z590 via Hub GL850G) 6x SATA 6Gb/s (Z590) 1x TPM-Header 1x Thunderbolt-Header 13-Pin 1x Chassis Intrusion-Header 1x MSI Tuning controller Header 5-Pin
•Header Cooling:1x CPU fan 4-Pin 6x fan 4-Pin 1x pump 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A) 1x 3-Pin Corsair RGB (+5V/DATA/GND)
•buttons/Switches:USB BIOS Flashback (external) LED switch (internal)
•Audio:71 (Realtek ALC4080)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/5/10 (Z590)
•Multi-GPU:AMD 3-Way-CrossFireX (x8/x8 x8/x8/x4)
•Power connections:1x 24-Pin ATX 2x 8-Pin EPS12V 1x 6-Pin PCIe
•Lighting:RGB 2 zones (chipset cooler I/O cover)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (segment indication) Diagnostic LED (LED indicators) I/O-shield integrated 3x M2-passive cooler
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 7D06-003R
