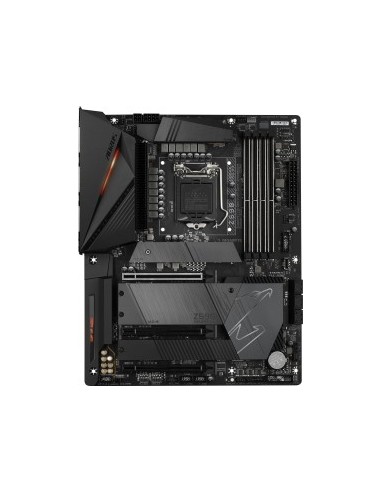

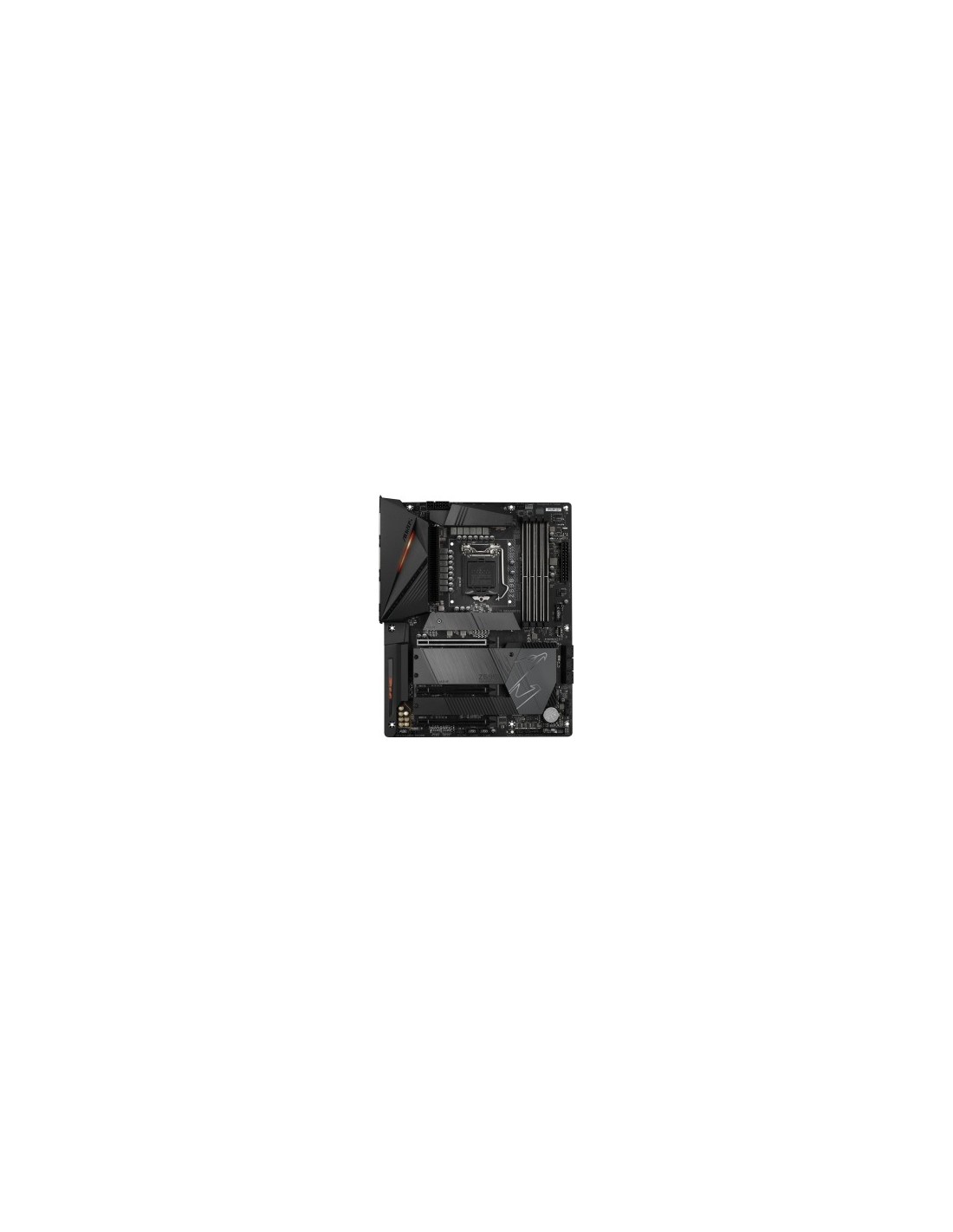

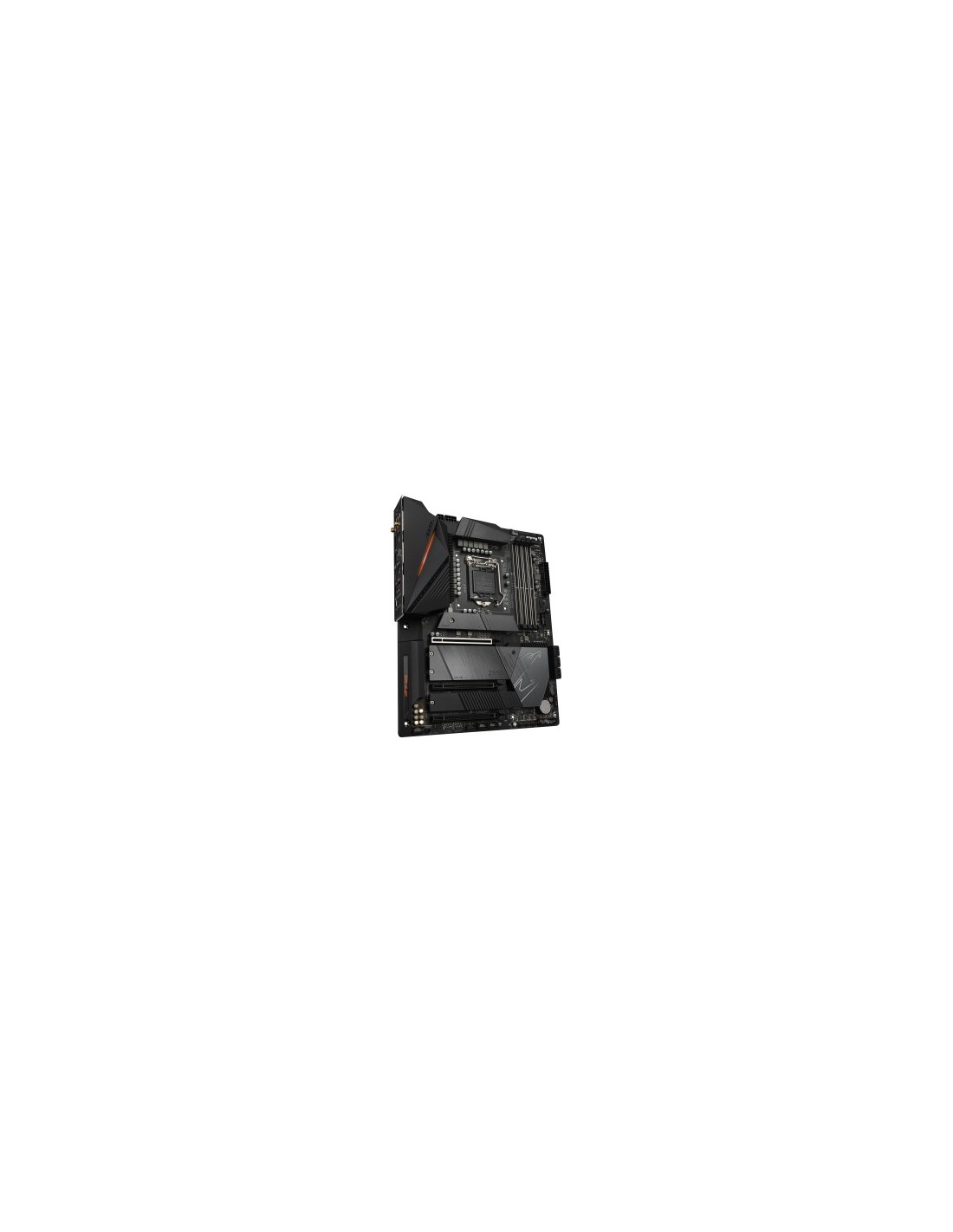

GIGABYTE Z590 AORUS PRO AX motherboard (Z590 AORUS PRO AX)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
13
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
13
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,30 €
.
•shape factor:ATX
•Socket:Intel 1200
•chipset:Intel Z590
•CPU-Compatibility:Core i-11000 (Rocket Lake-S) Core i-11000 (Comet Lake-S Refresh) Core i-10000 Pentium Gold G6000 Celeron G5000
•VRM:12 virtual phases + System agent (12+1)
•MOSFETs CPU:12x 90A (incl SoC)
•MOSFETs SoC:unknown
•RAM:4x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 (CPU) 2x PCIe 30 x16 (x4 Z590) 1x M2/M-Key (PCIe 40 x4 2280/2260/2242 CPU) 2x M2/M-Key (PCIe 40 x4 22110/2280/2260 CPU) 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242 Z590)

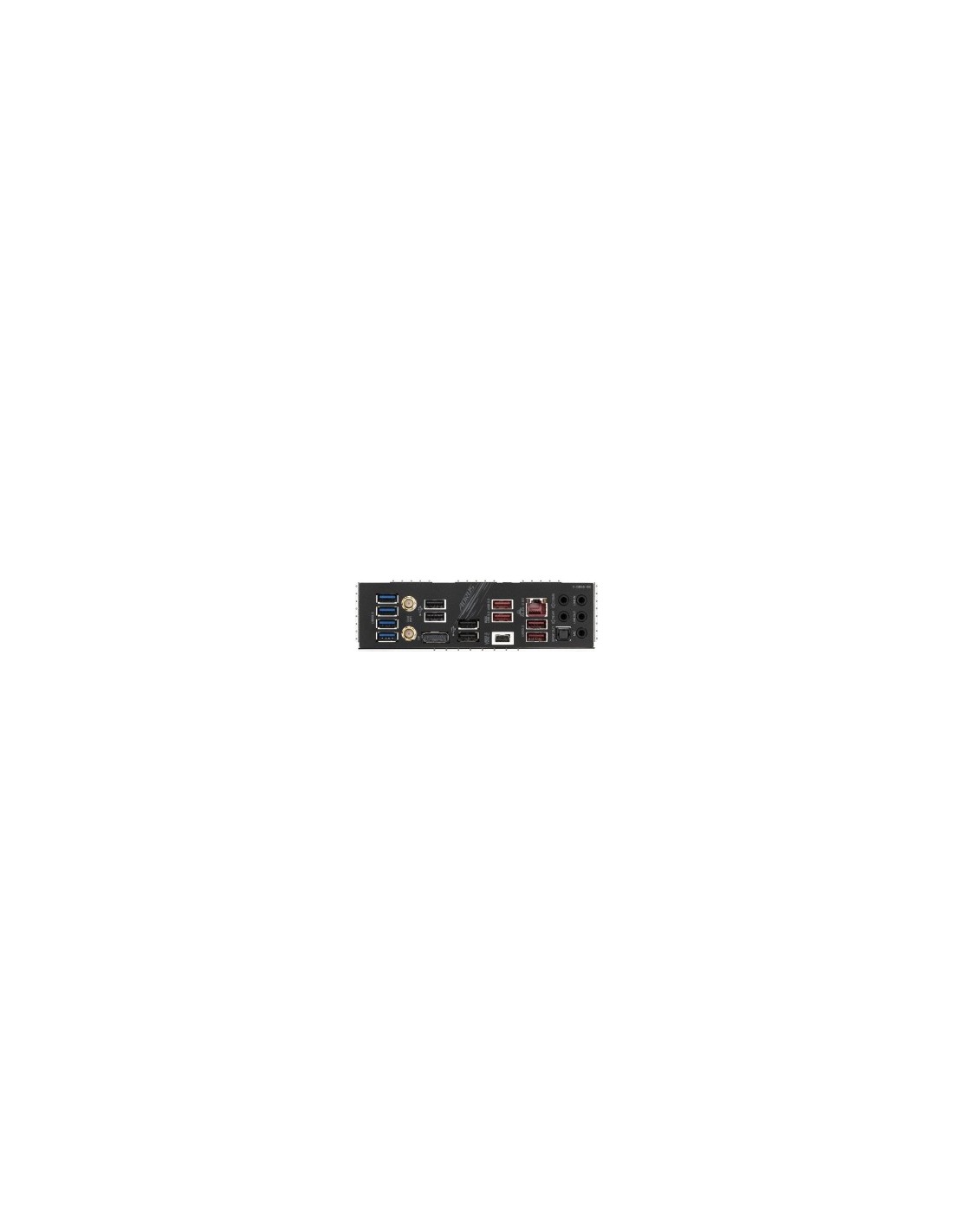

•external connectors:1x DisplayPort 12 (iGPU) 1x USB-C 32 (20Gb/s Z590) 4x USB-A 31 (10Gb/s Z590) 4x USB-A 30 (5Gb/s Z590 via Hub) 4x USB-A 20 (480Mb/s Z590 via Hub) 1x 25GBase-T (Intel I225-V) 5x jack 1x toslink
•Internal connectors:1x USB-C 32 Key-A Header (20Gb/s Z590) 1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20 Z590 via Hub) 6x SATA 6Gb/s (Z590) 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x RTD3-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 4x fan 4-Pin 2x fan/pump 4-Pin 2x Thermal-sensor
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 2A) 2x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (internal)
•Audio:71 (Realtek ALC4080)
•Graphics:iGPU
•Wireless:Wi-Fi 6 (WLAN 80211a/b/g/n/ac/ax 2x2 Intel AX200) Bluetooth 51
•RAID level:0/1/5/10 (Z590)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Lighting:RGB 2 zones (I/O cover audio cover)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 4x M2-passive cooler
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- Z590 AORUS PRO AX
