•shape factor:ATX
•chipset:Intel Z490
•VRM:7 real phases (6+1) 13 virtual phases (12+1) PWM-Controller: RT3609BE (max 8 phases)
•MOSFETs CPU:12x 46A 4C029N/4C024N
•MOSFETs SoC:1x 46A 4C029N/4C024N
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:2x PCIe 30 x16 (1x x16 1x x4) 3x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242)

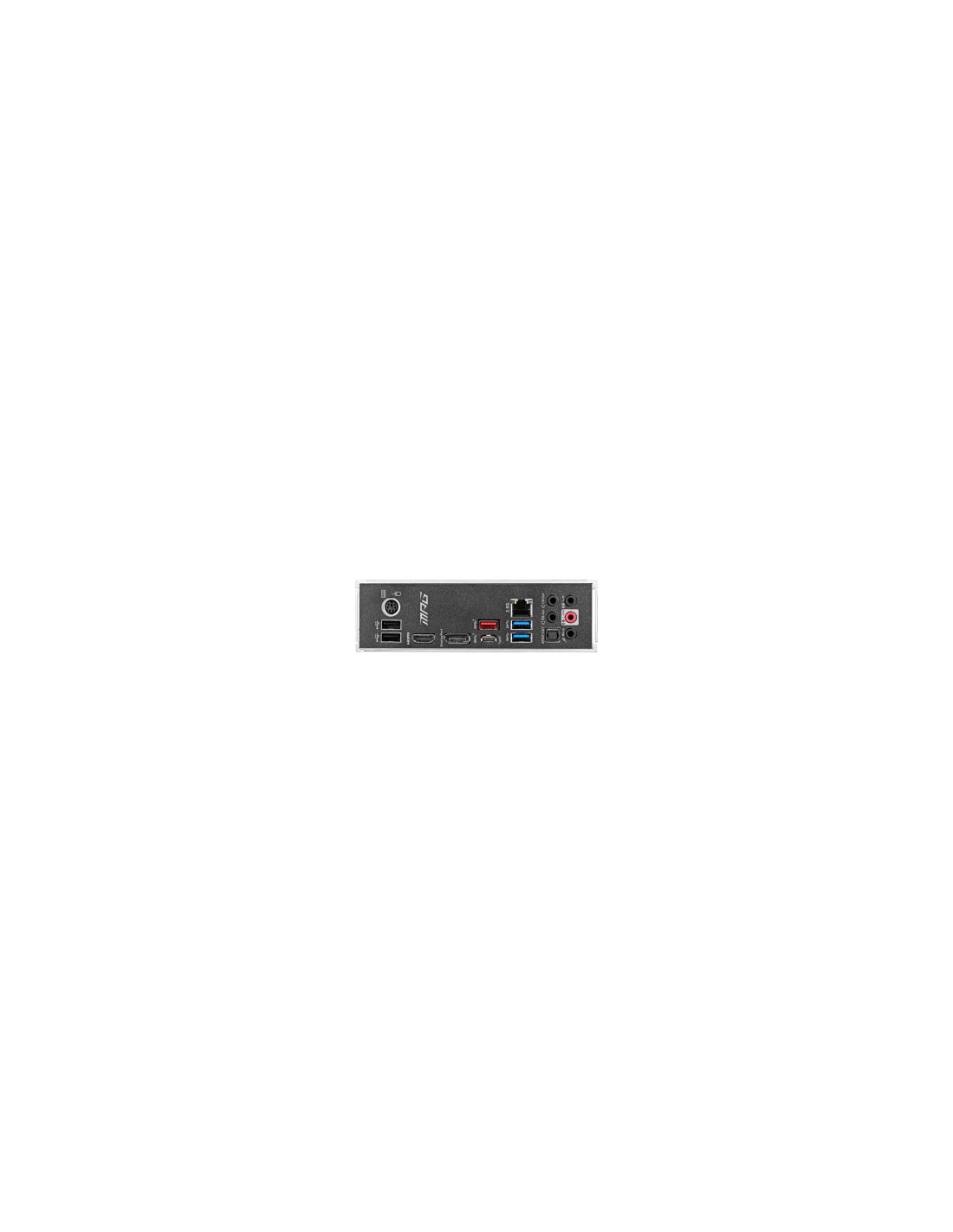

•external connectors:1x HDMI 14b 1x DisplayPort 12 1x USB-C 31 (Z490) 1x USB-A 31 (Z490) 2x USB-A 30 2x USB-A 20 1x 25GBase-T (Realtek RTL8125B-CG) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 30 Key-A Header 2x USB 30 Header (4x USB 30) 2x USB 20 header (4x USB 20) 6x SATA 6Gb/s (Z490) 1x serial 1x TPM-Header 1x Thunderbolt-Header 5-Pin 1x RTD3-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 6x fan 4-Pin 1x pump 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:LED switch (internal)
•Audio:71 (Realtek ALC1220)
•Graphics:CPU
•Wireless:not available
•RAID level:0/1/5/10 (Z490)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Lighting:RGB 1 zone (chipset cooler)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 1x M2-passive cooler
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου
- 7C75-007R
