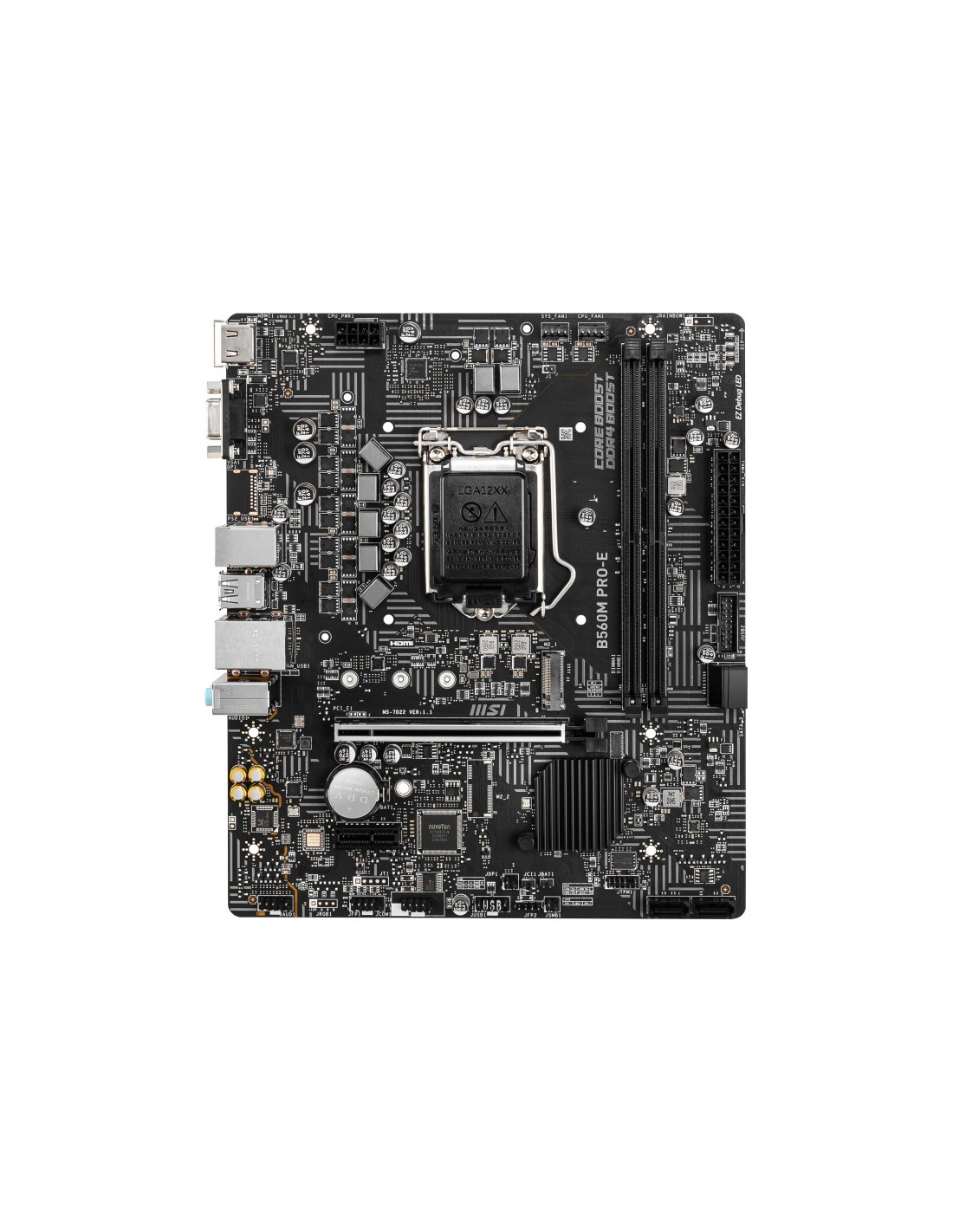

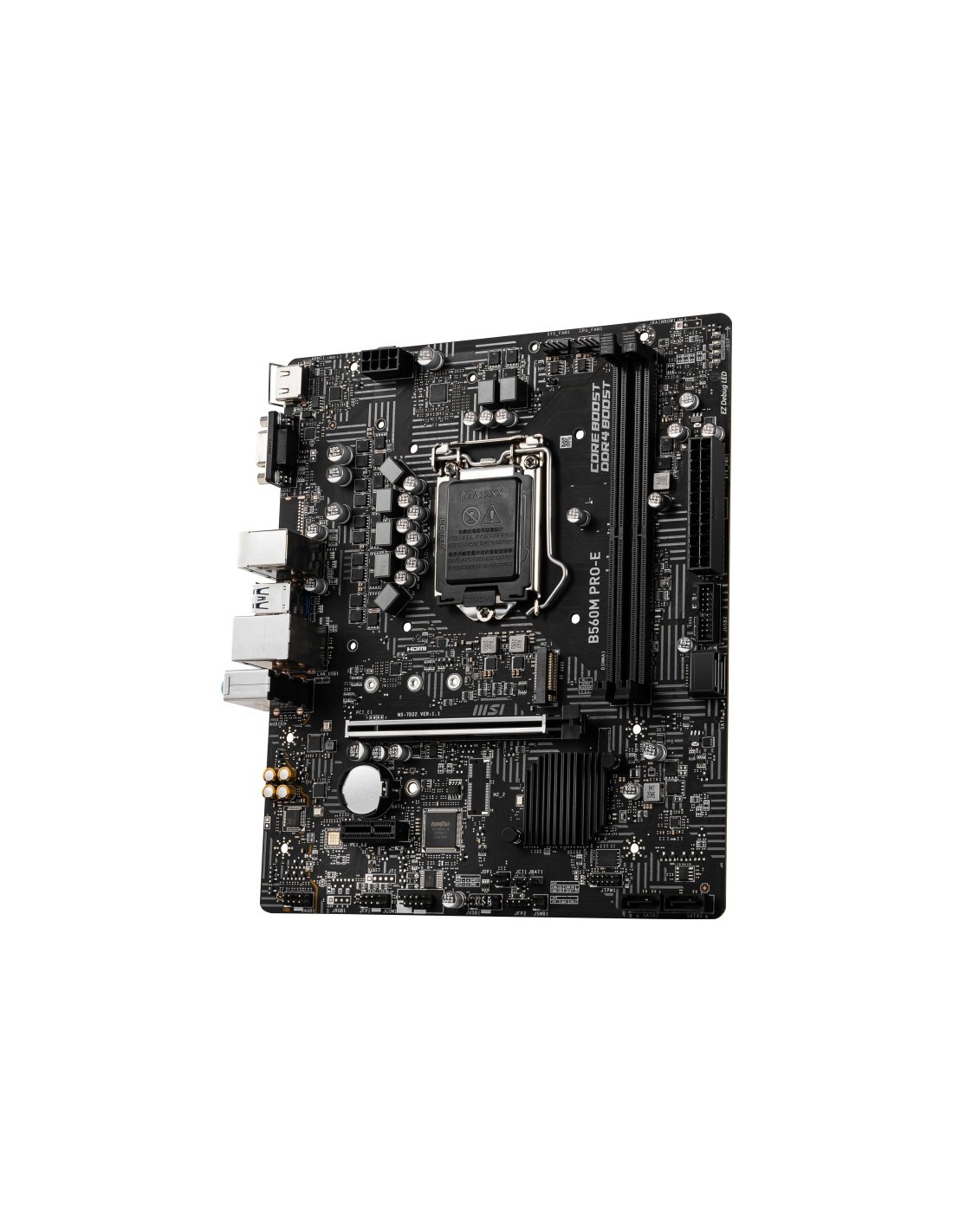

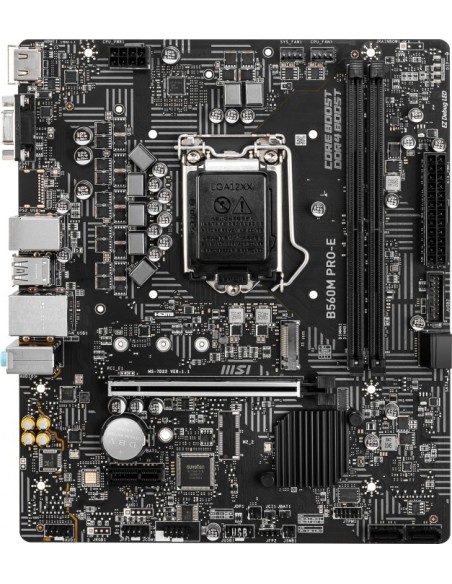

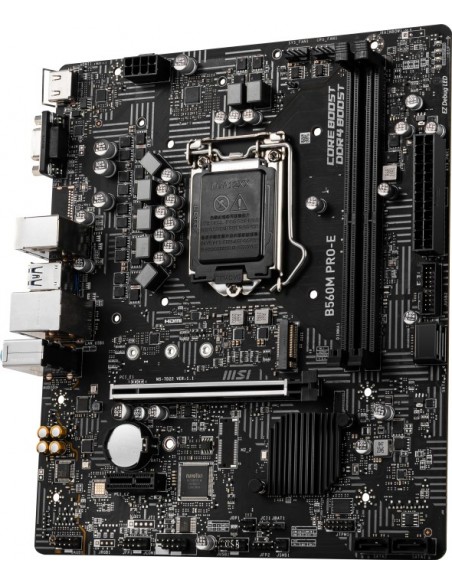

MSI B560M PRO-E motherboard Intel B560 LGA 1200 micro ATX (B560M PRO-E)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
6
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
6
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
0,60 €
.
•shape factor:µATX
•Socket:Intel 1200
•chipset:Intel B560
•CPU-Compatibility:Core i-11000 Core i-10000 Pentium Gold G6000 Celeron G5000
•RAM:2x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242)

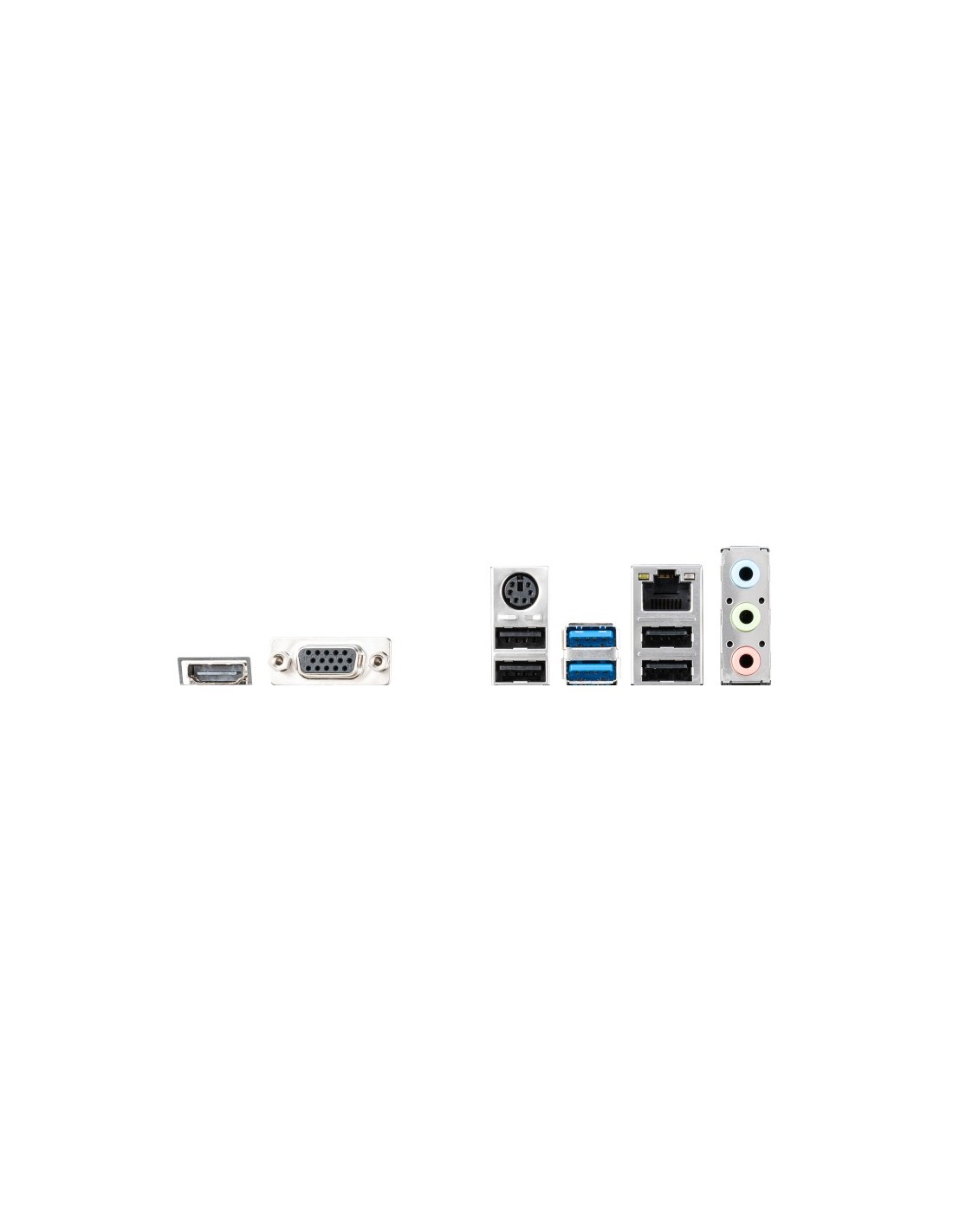

•external connectors:1x VGA (iGPU) 1x HDMI 20b (iGPU) 2x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Intel I219-V) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B560) 1x serial 1x TPM-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 1x fan 4-Pin
•Header Lighting:not available
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:10 virtual phases (8+2) 6 real phases (4+2) PWM-Controller: RT3607CE (max 7 phases)
•MOSFETs CPU:8x PK178BA/PK664BA
•MOSFETs SoC:2x PK178BA/PK664BA
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) onboard TPM 20 support (Intel PTT)
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- B560M PRO-E
