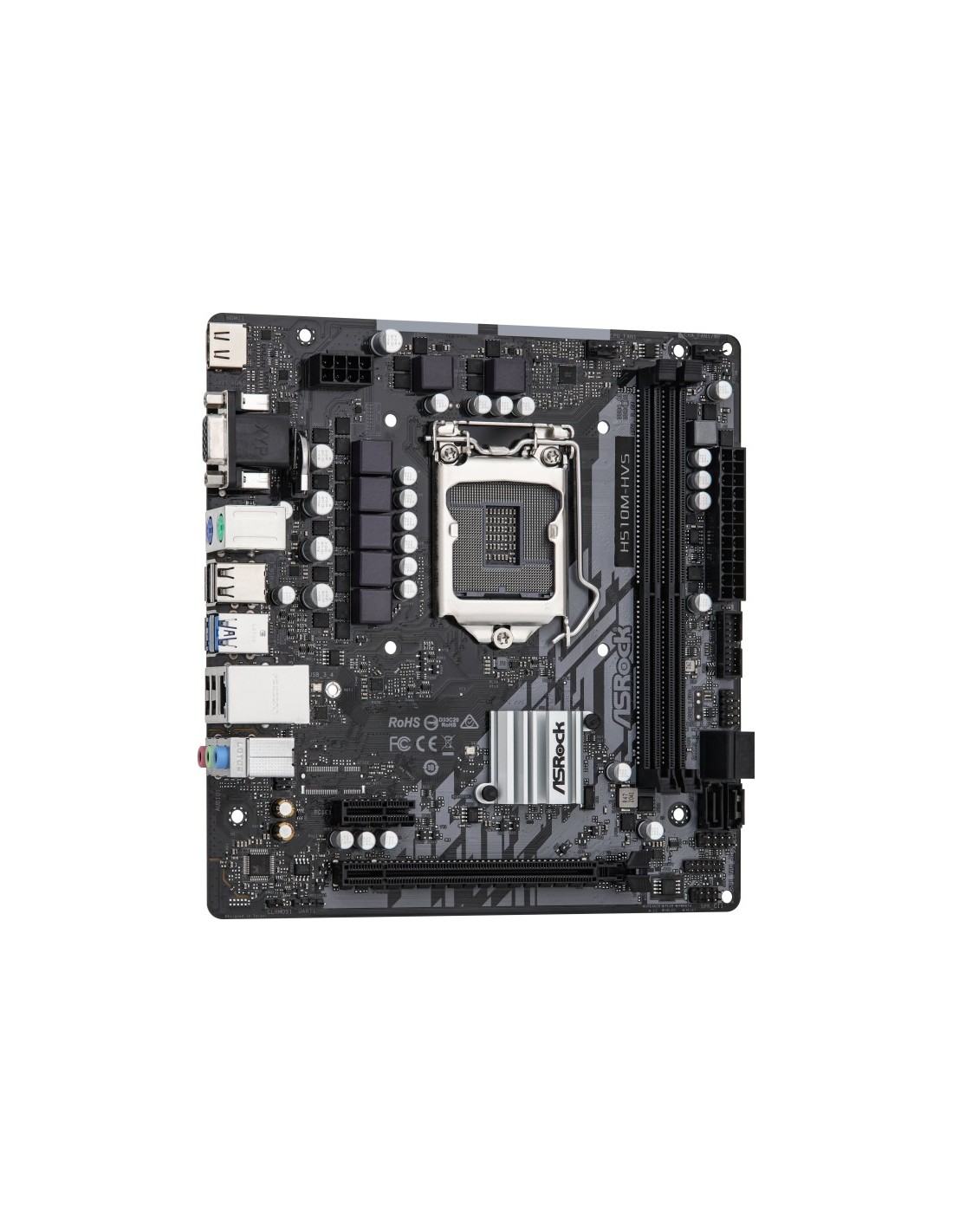

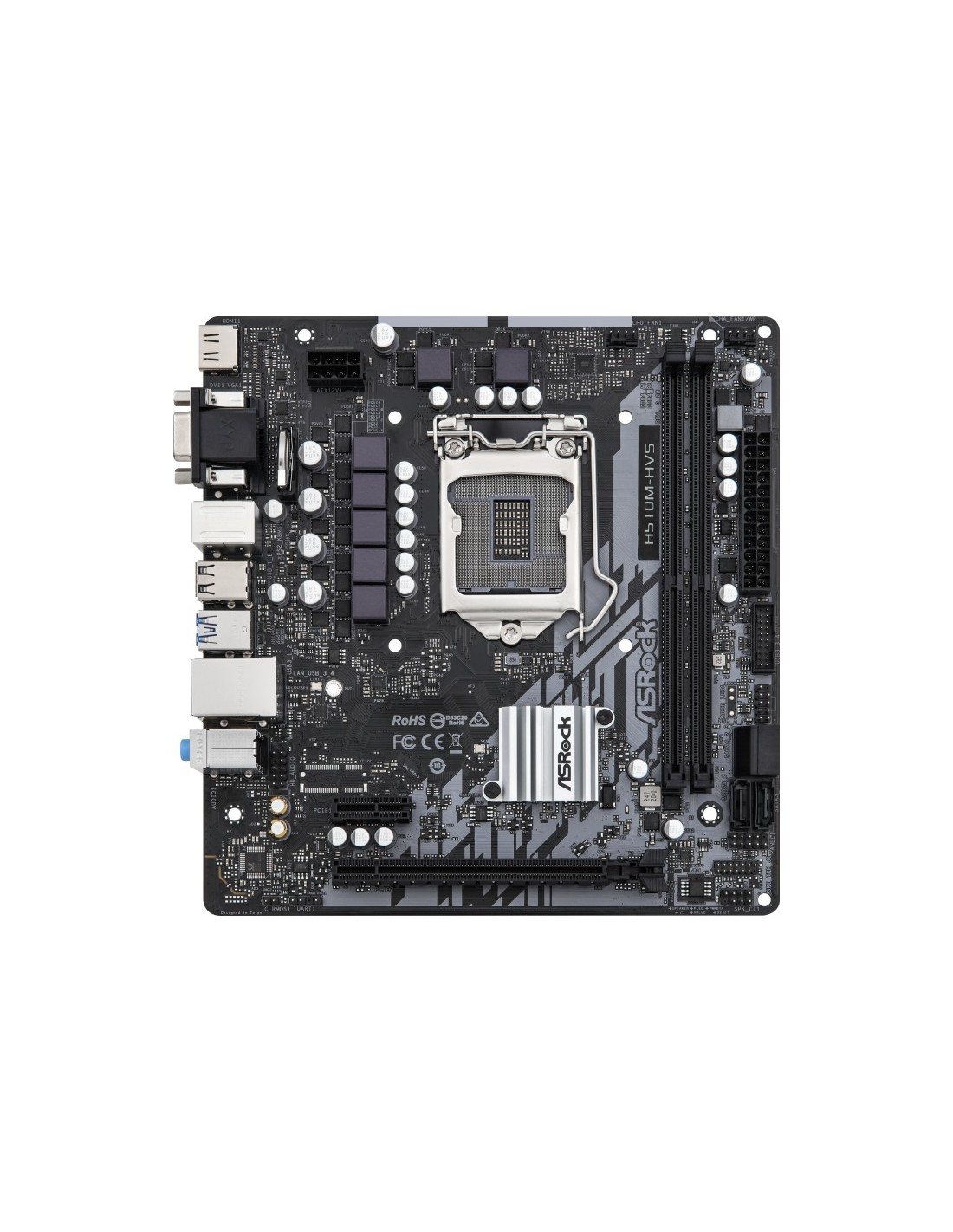

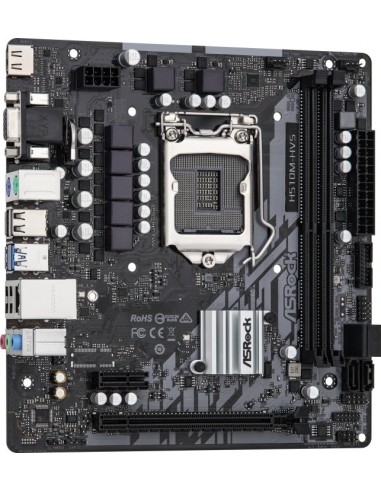

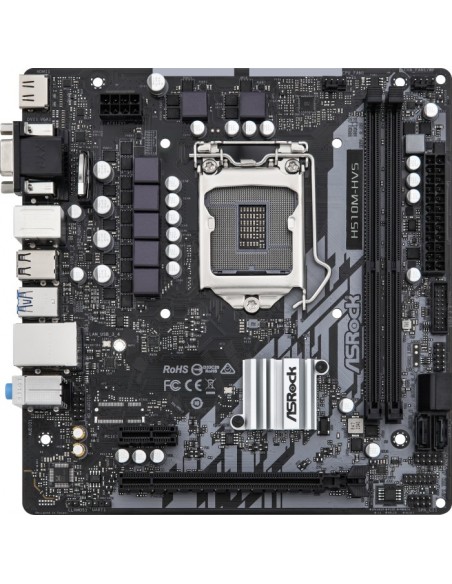

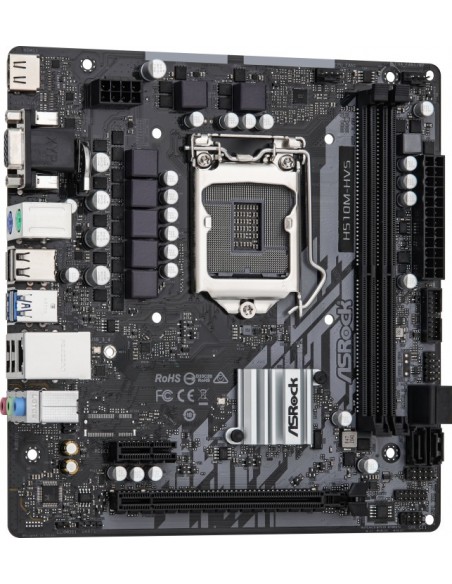

Asrock H510M-HVS R2.0 Intel H510 LGA 1200 micro ATX (H510M-HVS 2.0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
5
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
5
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
0,50 €
.
•shape factor:µATX
•Socket:Intel 1200
•chipset:Intel H510
•CPU-Compatibility:Core i-11000 Core i-10000 Pentium Gold G6000 Celeron G5000
•RAM:2x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x1

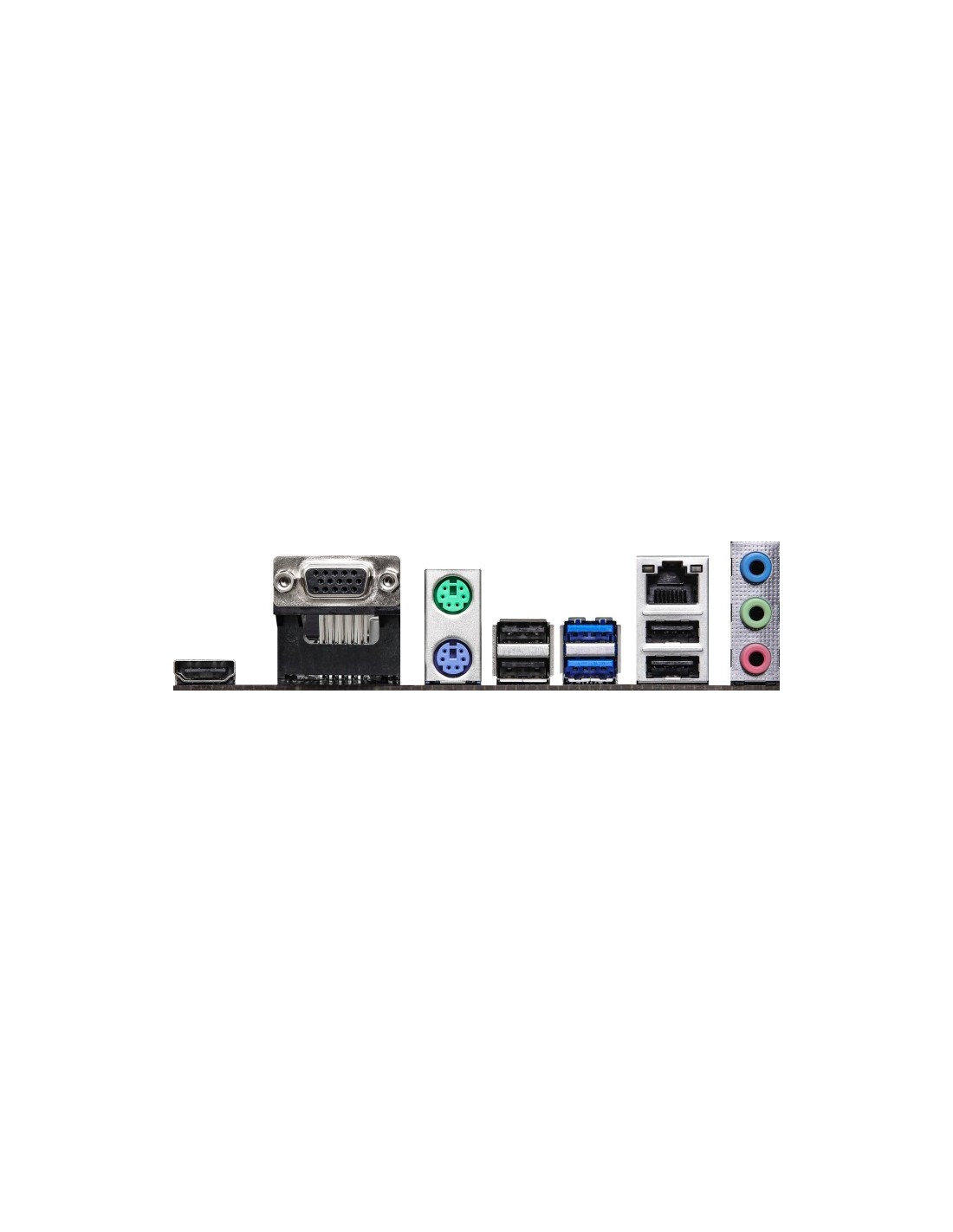

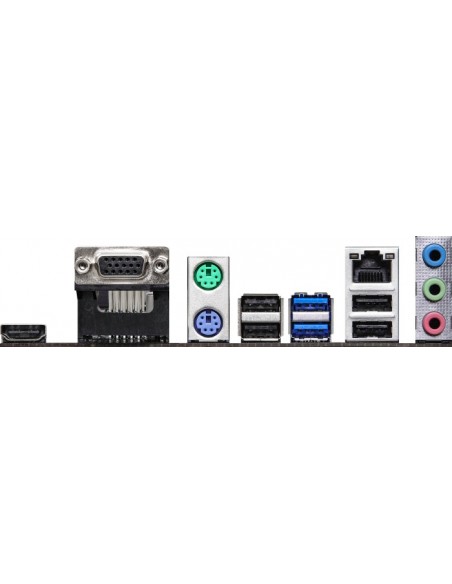

•external connectors:1x VGA (iGPU) 1x HDMI 20b (iGPU) 2x USB-A 30 (5Gb/s) 4x USB-A 20 (480Mb/s) 1x Gb LAN (Realtek RTL8111H) 3x jack 1x PS/2 keyboard 1x PS/2 mouse
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30) 1x USB 20 header (480Mb/s 2x USB 20) 4x SATA 6Gb/s (H510) 1x TPM-Header 1x Speaker-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 1x fan/pump 4-Pin
•Header Lighting:not available
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:6 virtual phases (5+1) 6 real phases (5+1) PWM-Controller: uP9521F (max 8 phases)
•MOSFETs CPU:6x 48A SM4508/12x SM4503
•MOSFETs SoC:1x 48A SM4508/2x SM4503
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- H510M-HVS 2.0
No reviews
