•shape factor:µATX
•Socket:Intel 1200
•chipset:Intel H510
•CPU-Compatibility:Core i-11000 Core i-10000 Pentium Gold G6000 Celeron G5000
•RAM:2x DDR4 DIMM dual PC4-25600U/DDR4-3200 max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260)

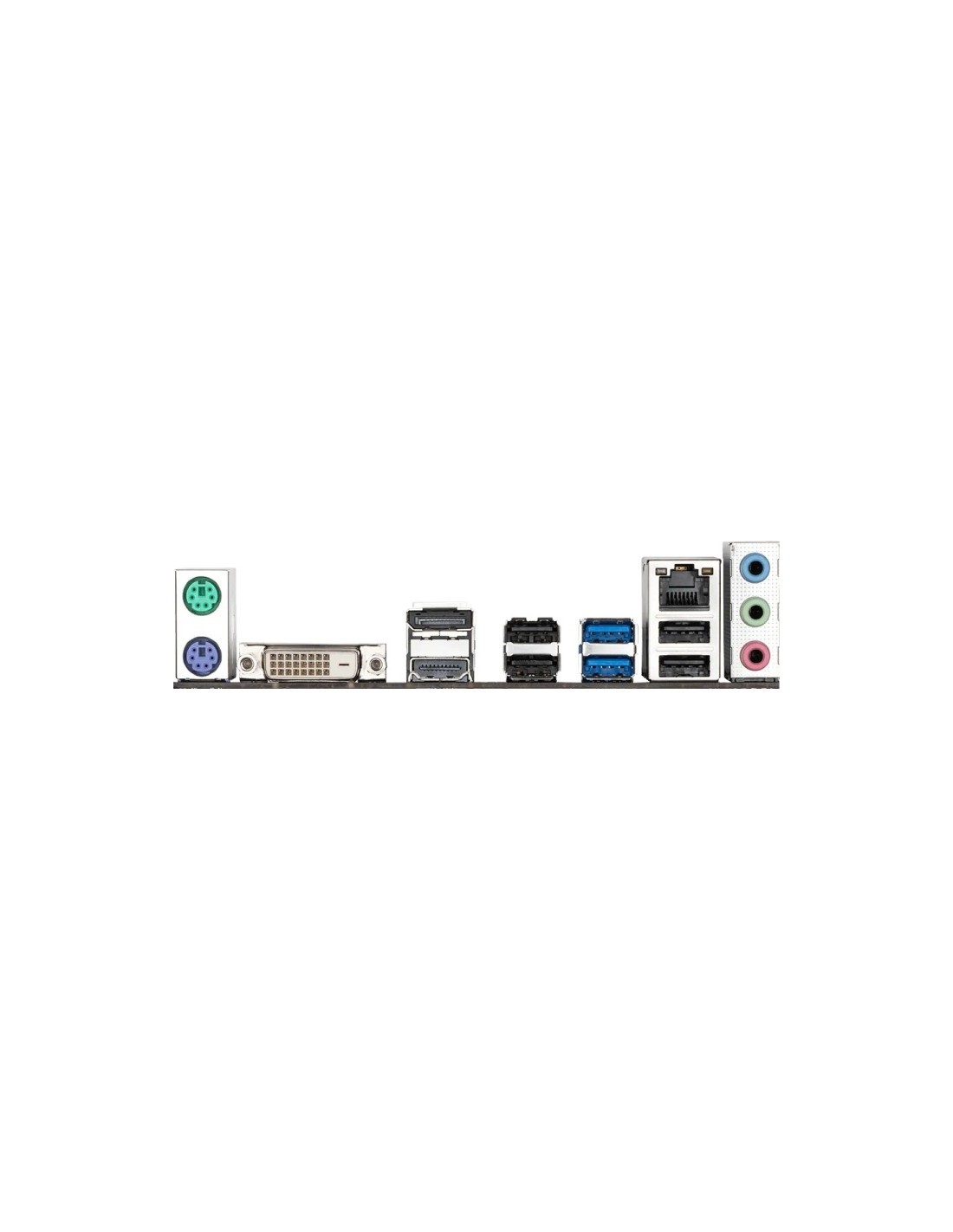

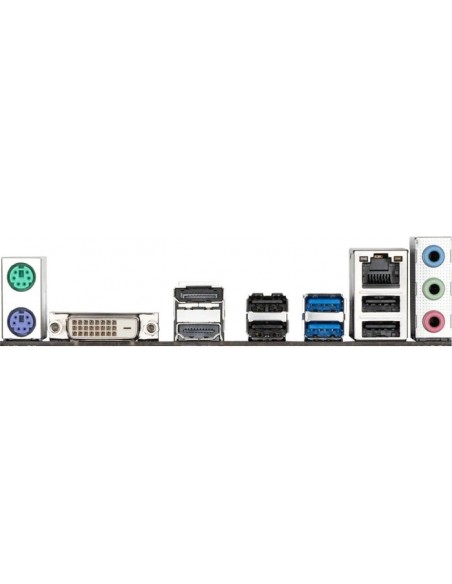

•external connectors:1x DVI-D (iGPU) 1x HDMI 14 (iGPU) 1x DisplayPort 12 (iGPU) 2x USB-A 30 (5Gb/s) 4x USB-A 20 (480Mb/s) 1x Gb LAN (Realtek RTL8118AS) 3x jack 1x PS/2 keyboard 1x PS/2 mouse
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (H510) 1x serial 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:14 virtual phases (12+2) 8 real phases (6+2) PWM-Controller: NCP81229 (max 9 phases)
•MOSFETs CPU:6x 46A 4C10N/12x 4C06N
•MOSFETs SoC:2x 46A 4C10/4x 4C06
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors onboard TPM 20 support (Intel PTT)
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- H510M S2H V2
