•shape factor:µATX
•Socket:Intel 1200
•chipset:Intel B560
•CPU-Compatibility:Core i-11000 Core i-10000 Pentium Gold G6000 Celeron G5000
•VRM:12 virtual phases
•MOSFETs CPU:unknown
•MOSFETs SoC:unknown
•RAM:4x DDR4 DIMM dual PC4-32000U/DDR4-4000 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4 2280) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242) 1x M2/E-Key (PCIe/Intel CNVi 2230)

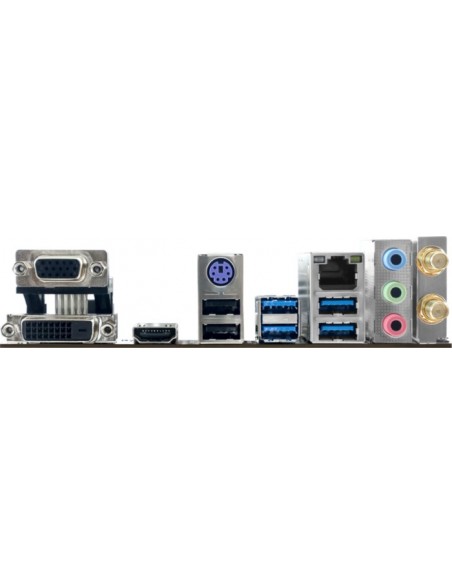

•external connectors:1x VGA (iGPU) 1x DVI-D (iGPU) 1x HDMI 20b (iGPU) 4x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Intel I219-V) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B560) 1x serial 1x TPM-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 1x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:not available
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:not available
•Special features:audio+solid capacitors Diagnostic LED (LED indicators)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- B560MX-E PRO
