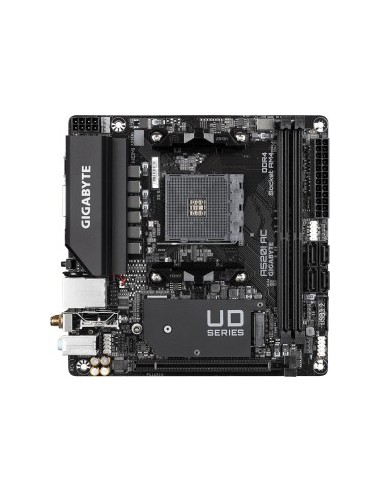

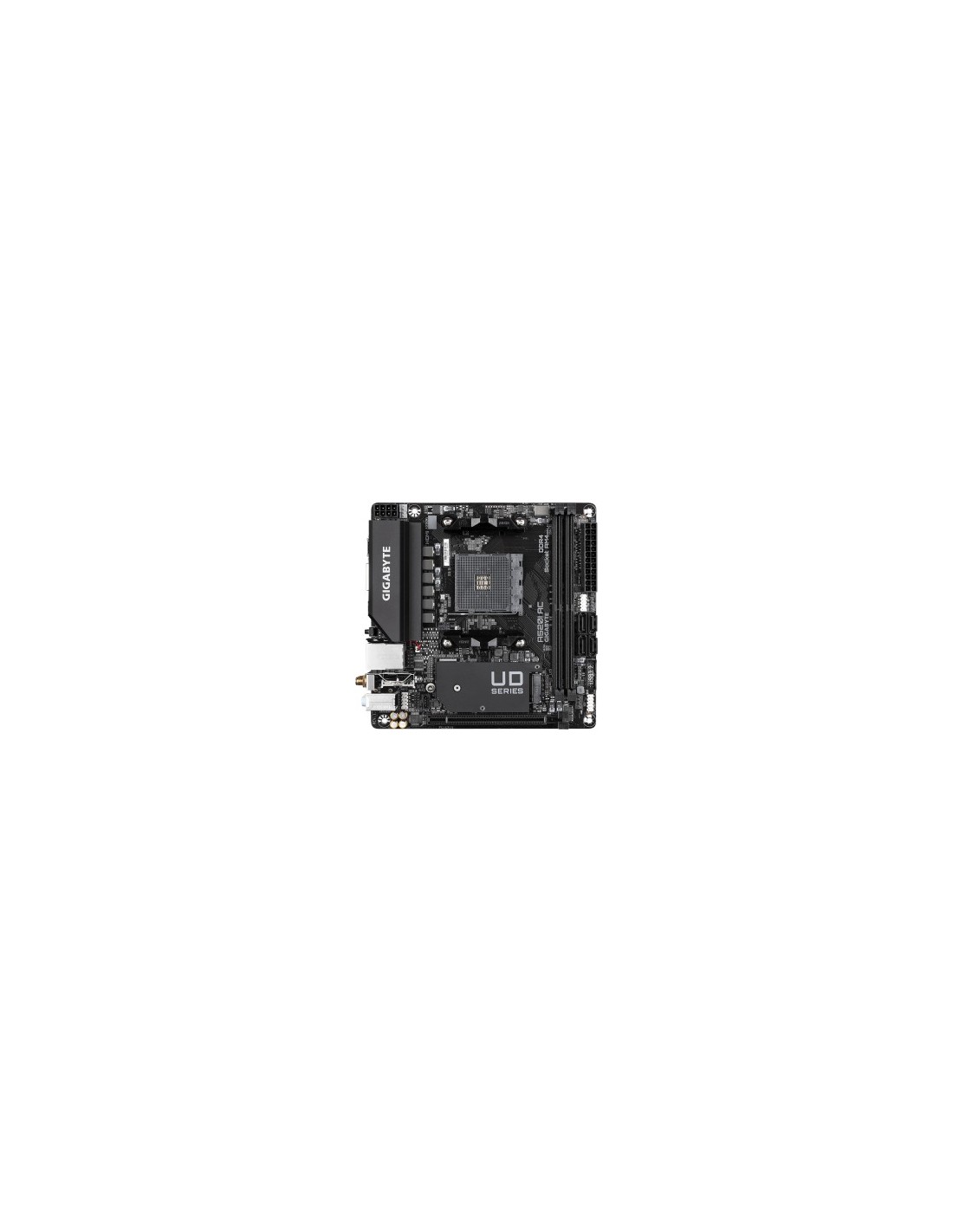

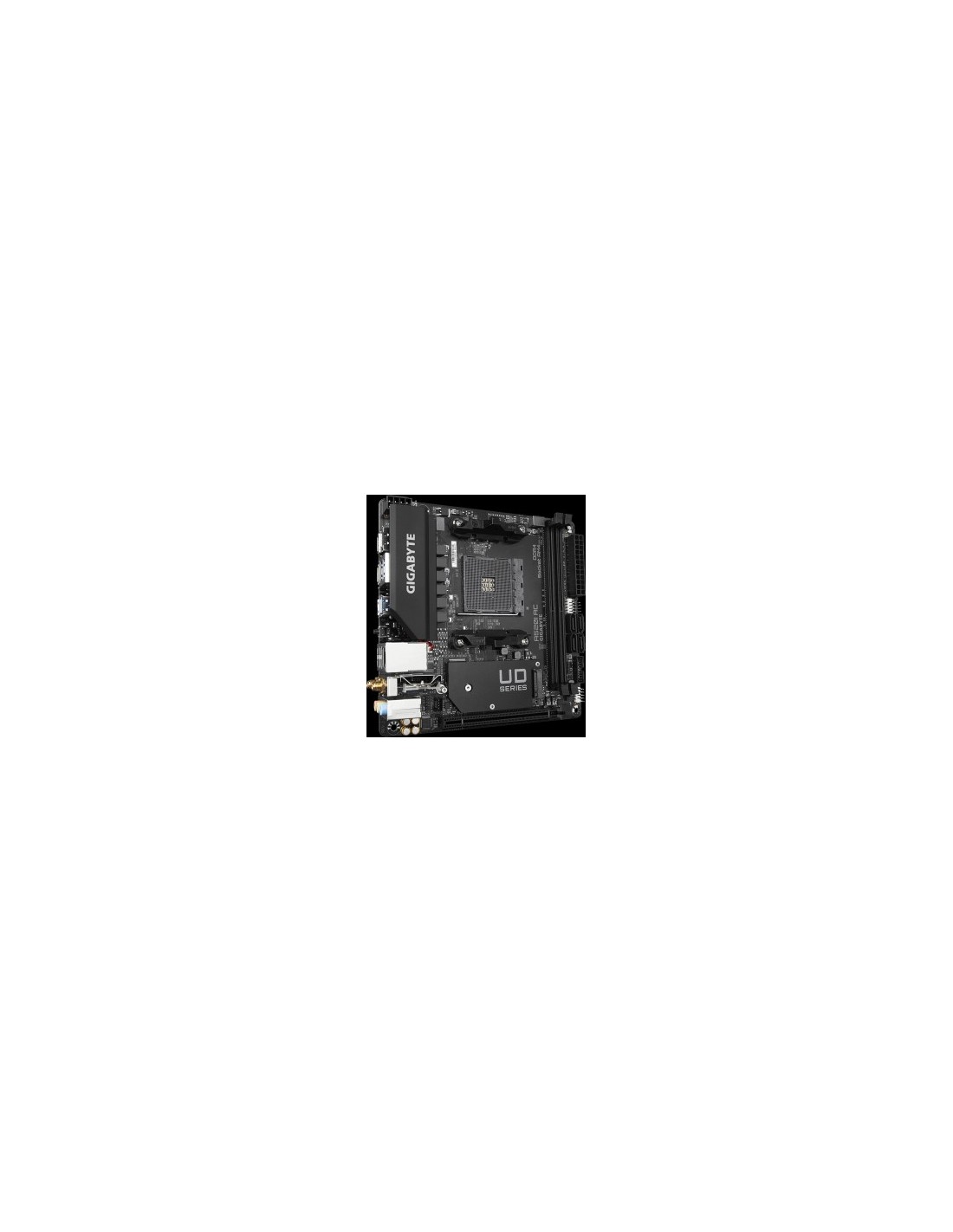

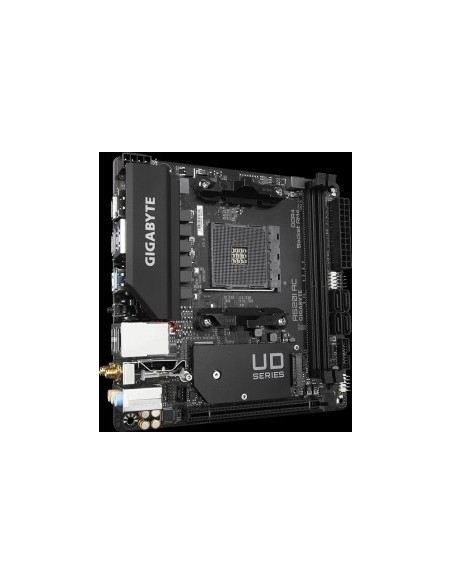

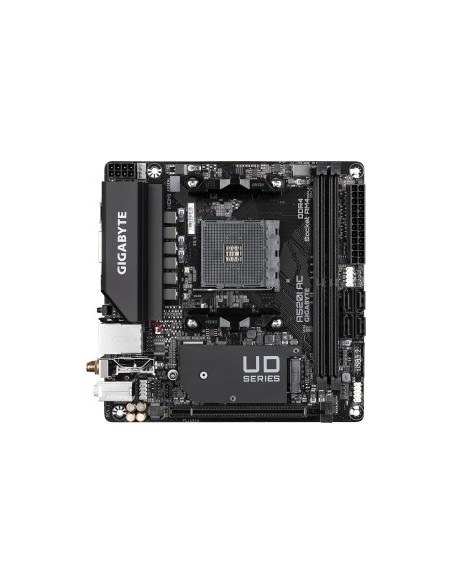

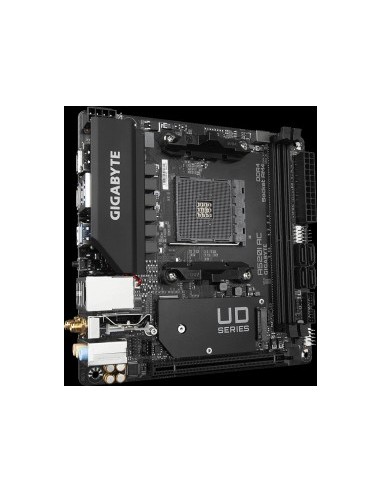

•shape factor:mini-ITX
•chipset:AMD A520
•CPU-Compatibility:Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•RAM:2x DDR4 DIMM dual PC4-42400U/DDR4-5300 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 30 x16 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260) 1x M2/E-Key (PCIe 2230 occupied with WiFi+BT module)

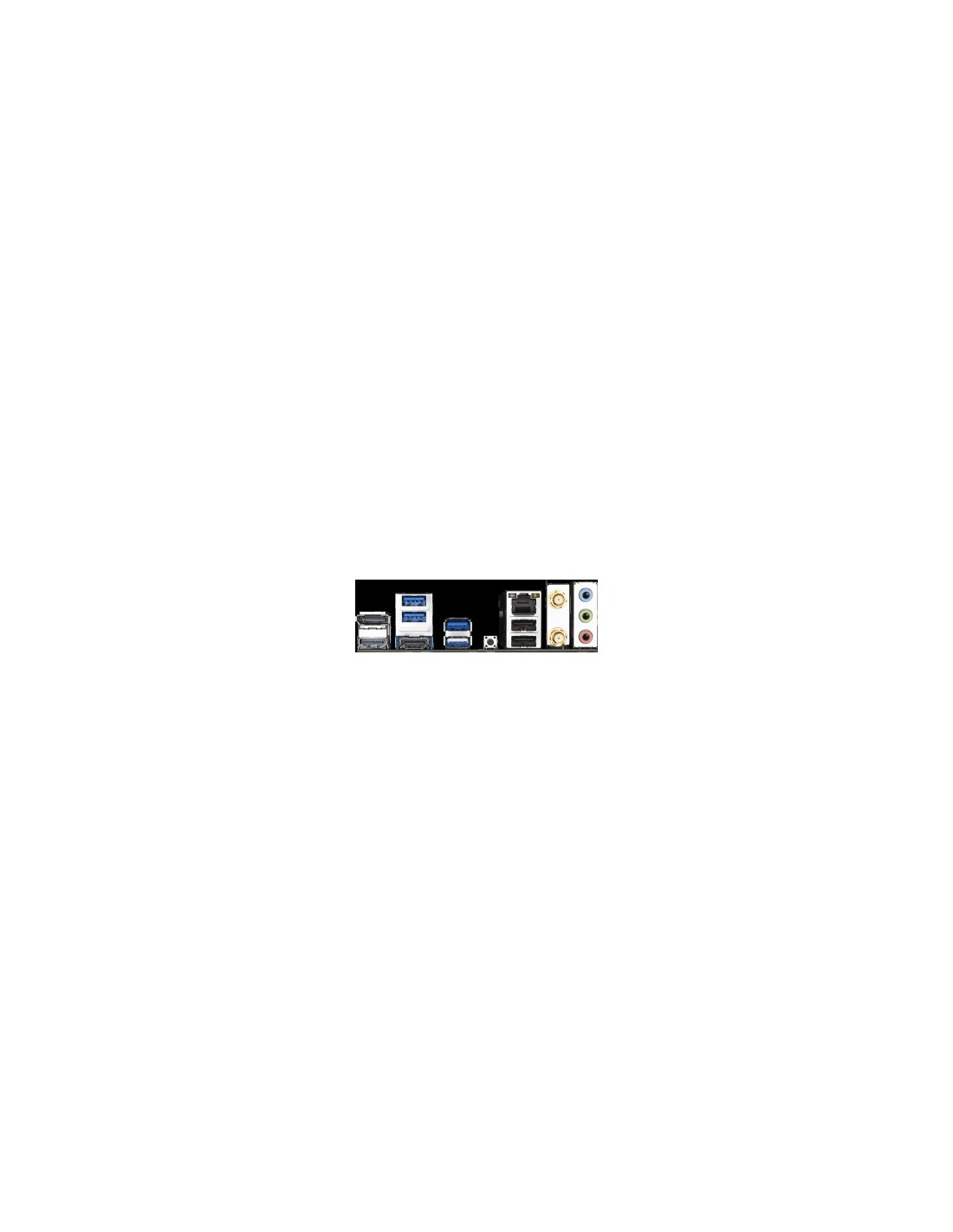

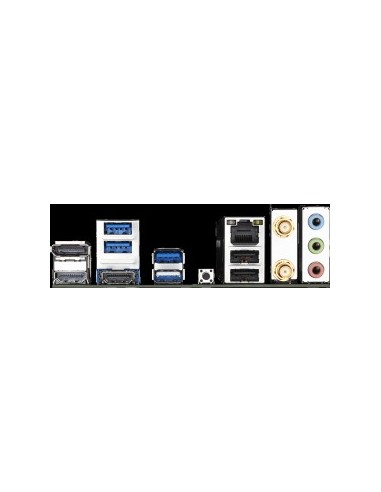

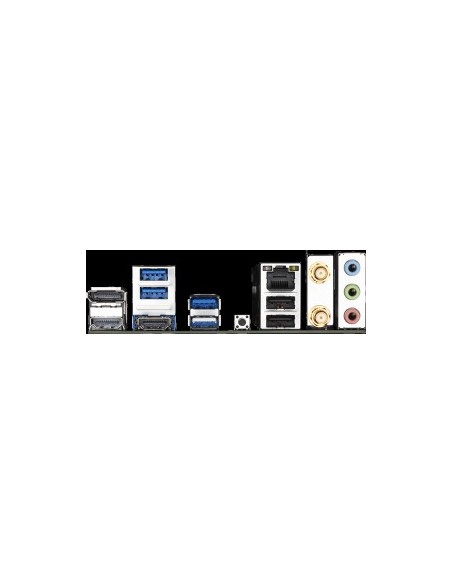

•external connectors:2x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 4x USB-A 30 2x USB-A 20 1x Gb LAN (Realtek RTL8118AS) 3x jack
•Internal connectors:1x USB 30 Header (2x USB 30) 1x USB 20 header (2x USB 20) 4x SATA 6Gb/s (A520) 1x serial 1x TPM-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 2A) 1x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (external)
•Audio:71 (Realtek ALC887)
•onboard-Graphics:iGPU
•Wireless:WLAN 80211a/b/g/n/ac (1x1 Intel 3168) Bluetooth 42
•RAID level:0/1/10 (A520)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:not available
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors 1x M2-passive cooler ECC-support
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- A520I AC
