•shape factor:ATX
•chipset:AMD A520
•CPU-Compatibility:Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•RAM:4x DDR4 DIMM dual PC4-37866U/DDR4-4733 (OC) max 128GB (UDIMM)
•Extension slots:2x PCIe 30 x16 (1x x16 1x x2) 3x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242)

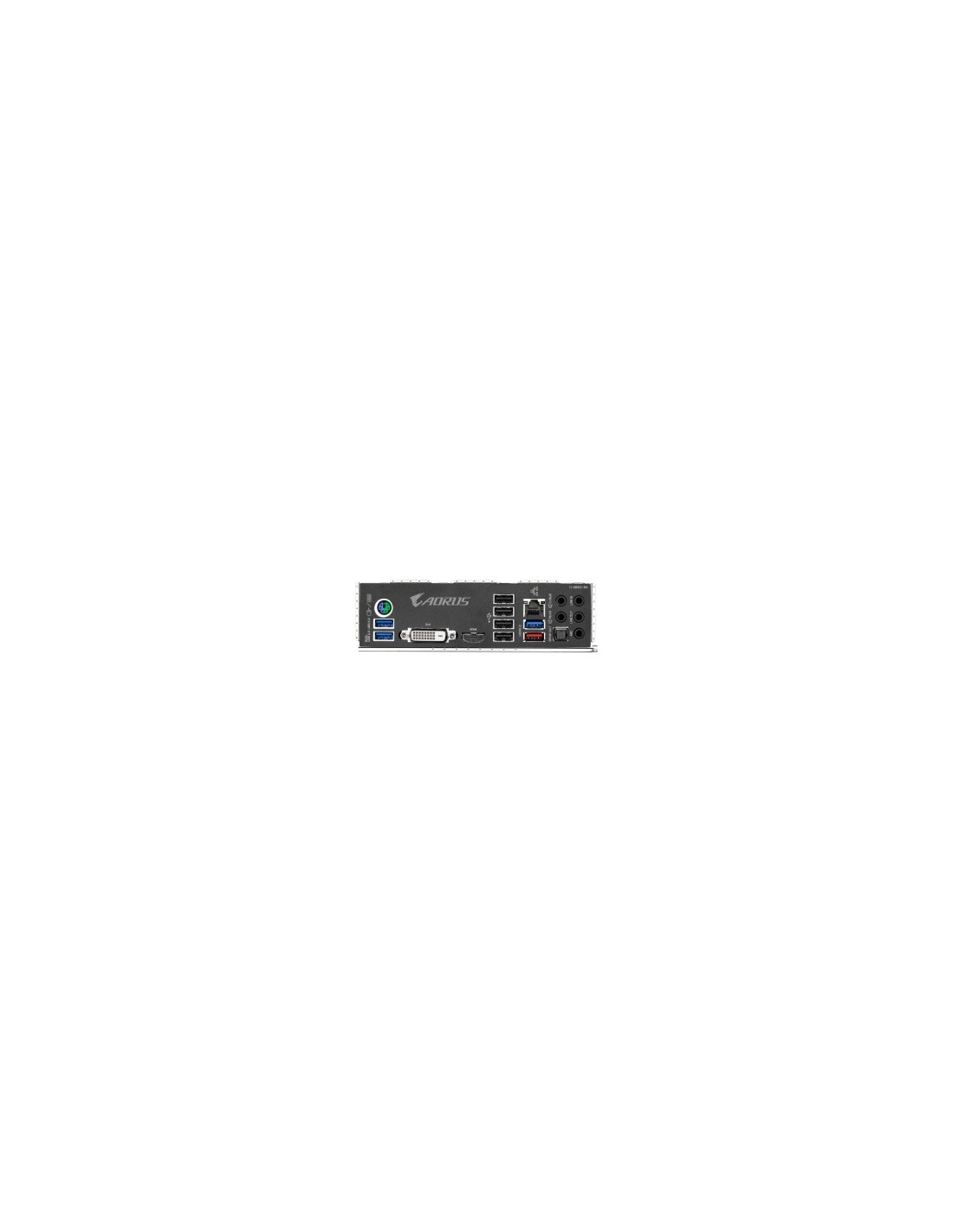

•external connectors:1x DVI-D (iGPU) 1x HDMI 21 (iGPU) 1x USB-A 31 (A520) 3x USB-A 30 4x USB-A 20 1x Gb LAN (Realtek RTL8118AS) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (A520) 1x serial 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 3x fan 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 2A) 2x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (internal)
•Audio:71 (Realtek ALC1200)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (A520)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:RGB 1 zone (page right)
•BIOS:1x 16MB (128Mb)
•Special features:audio+solid capacitors ECC-support
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου

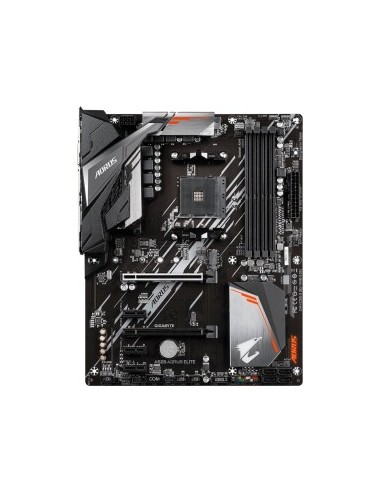

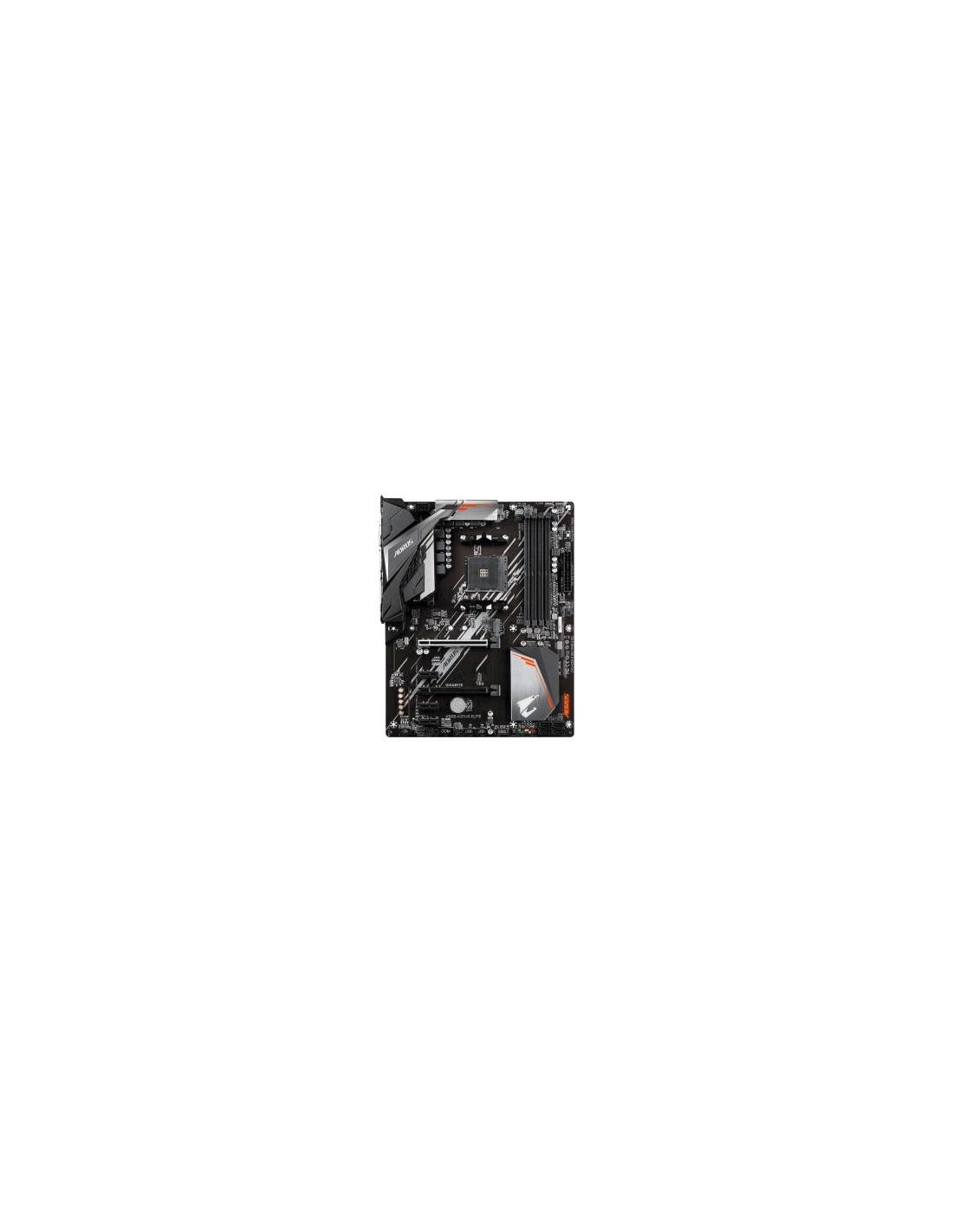

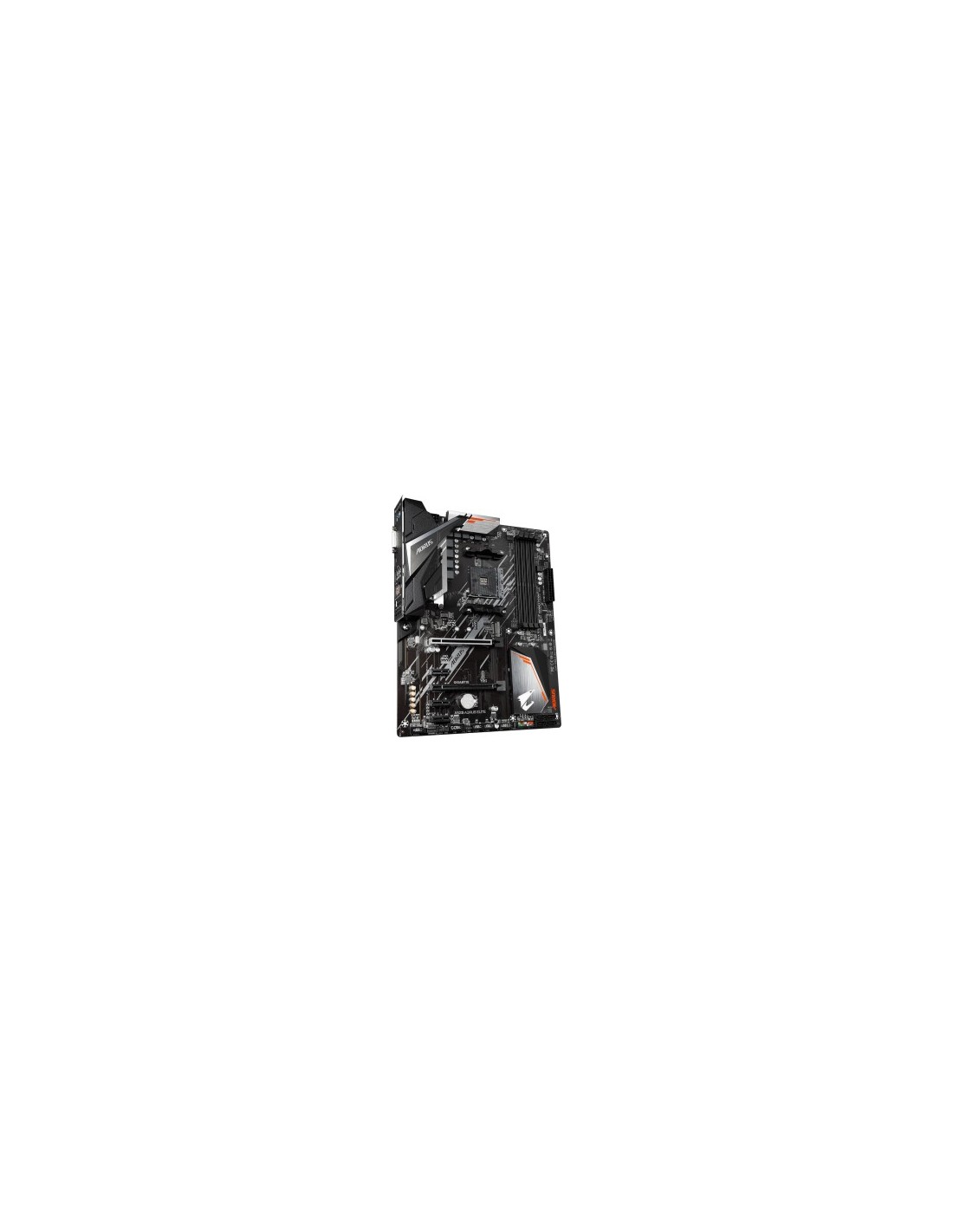

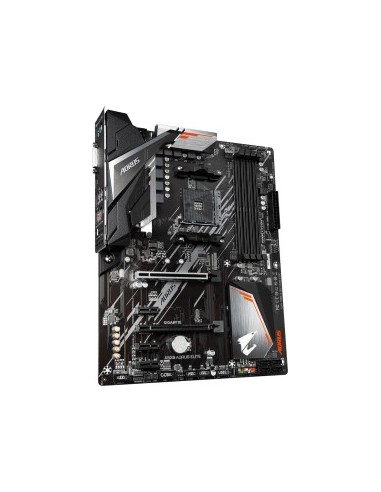

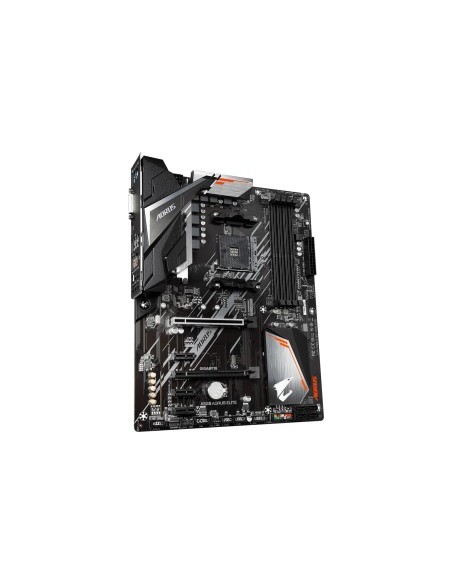

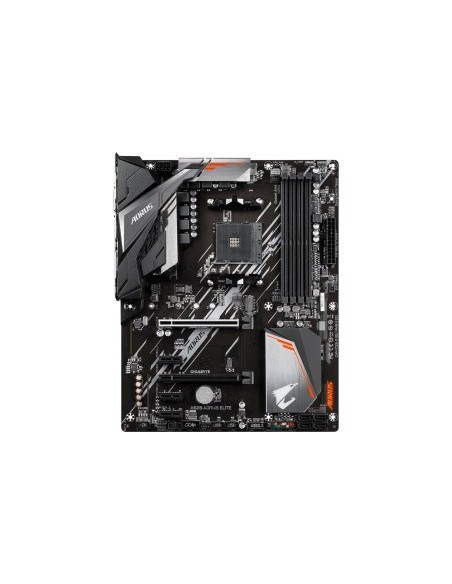

- A520 AORUS ELITE
