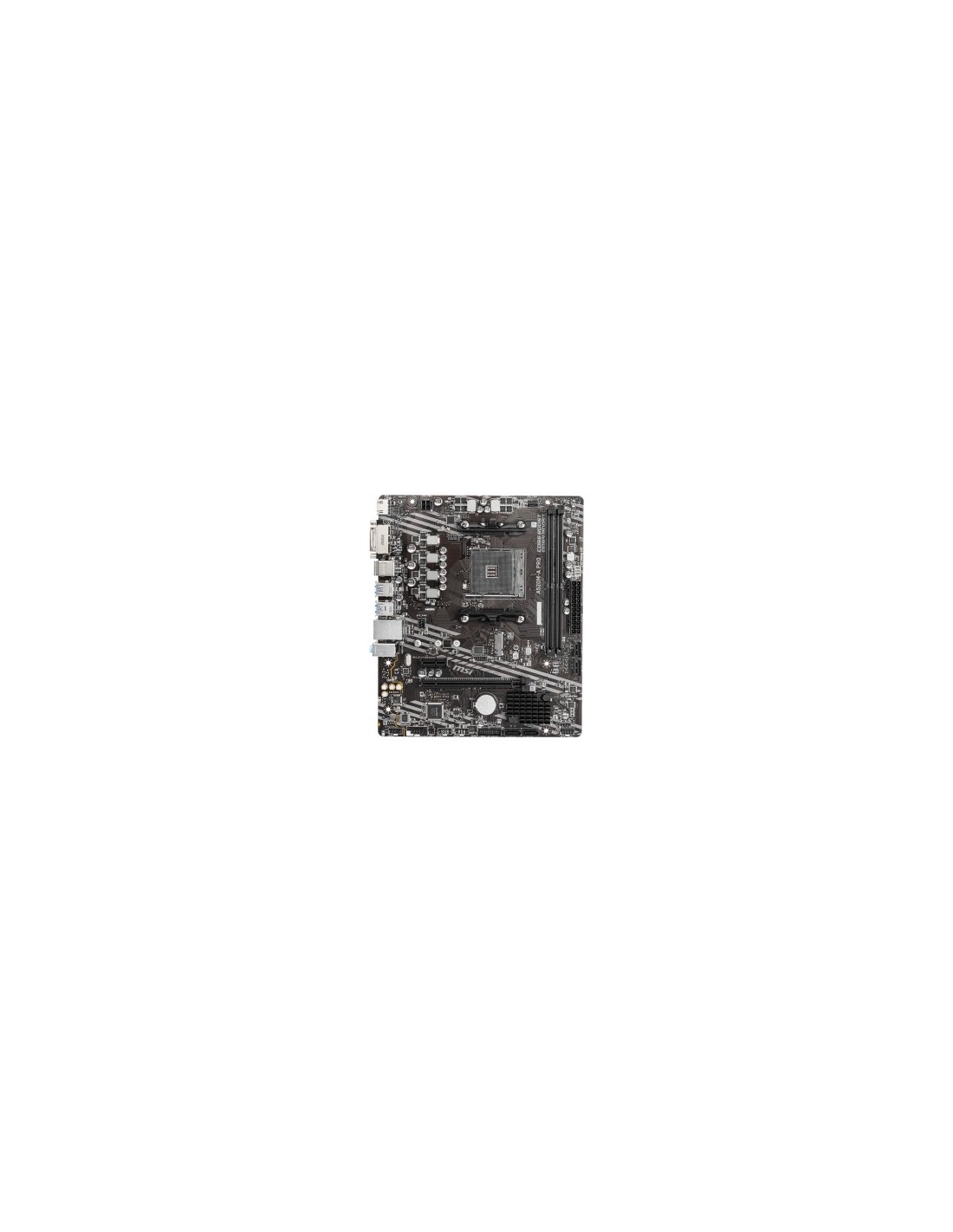

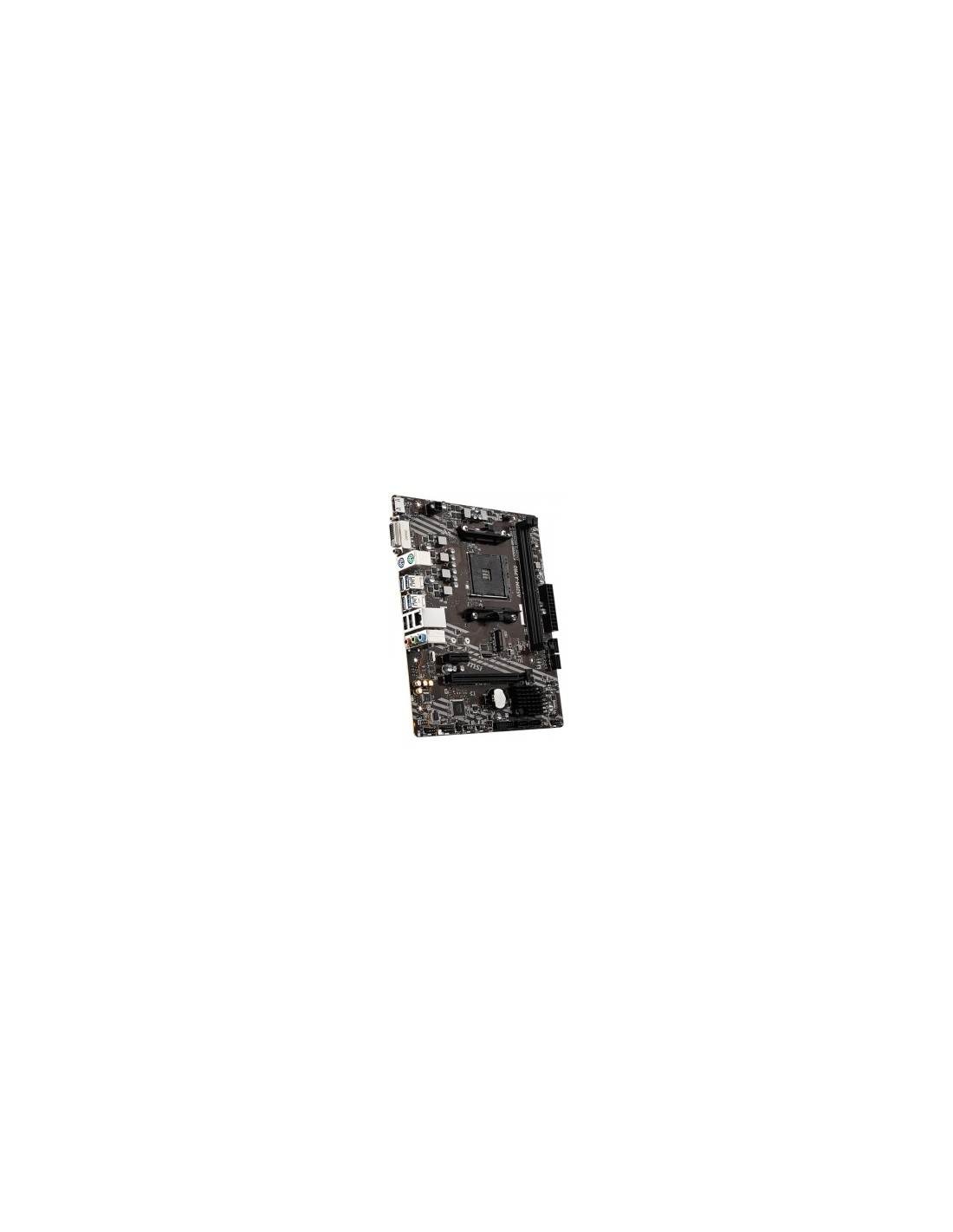

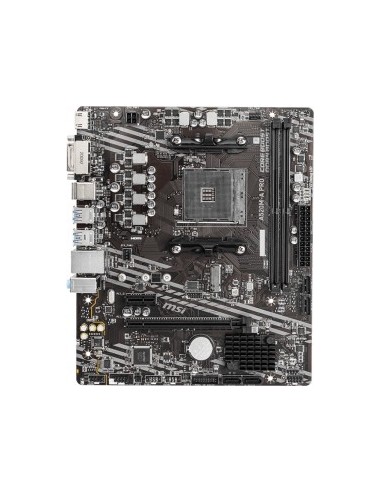

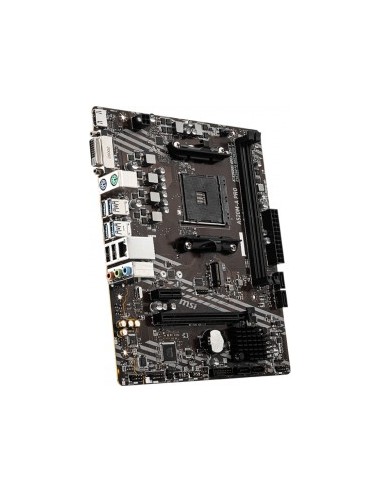

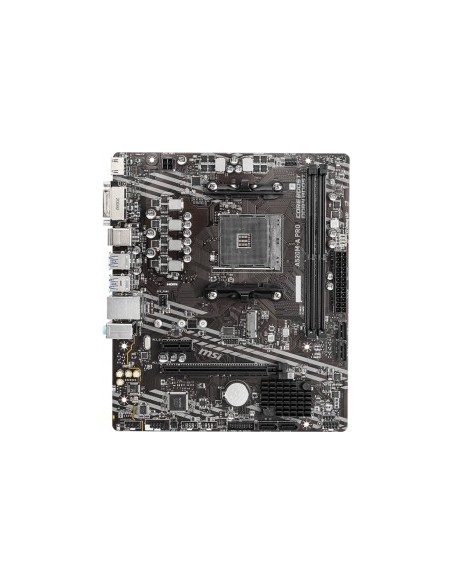

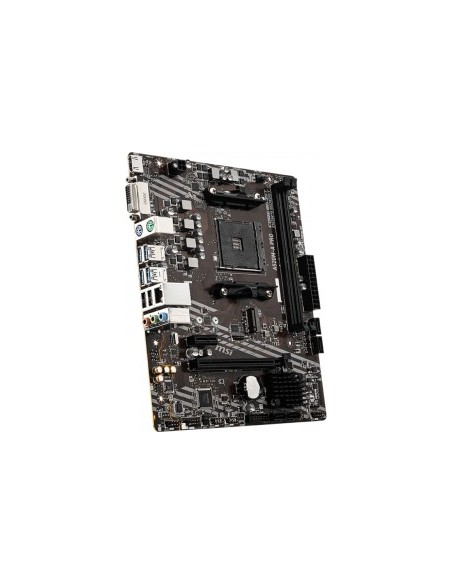

MSI A520M-A Pro, AMD A520 motherboard - socket AM4 (7C96-001R)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
5
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
5
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
0,50 €
.
•shape factor:\u00b5ATX
•chipset:AMD A520
•CPU-Compatibility:Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:6 real phases (4+2) PWM-Controller: RT8894 (max 6 phases)
•MOSFETs CPU:4x 46A 4C029N/8x 4C024N
•MOSFETs SoC:4x 46A 4C029N/4C024N
•RAM:2x DDR4 DIMM dual PC4-36800U/DDR4-4600 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 30 x16 1x PCIe 30 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242)

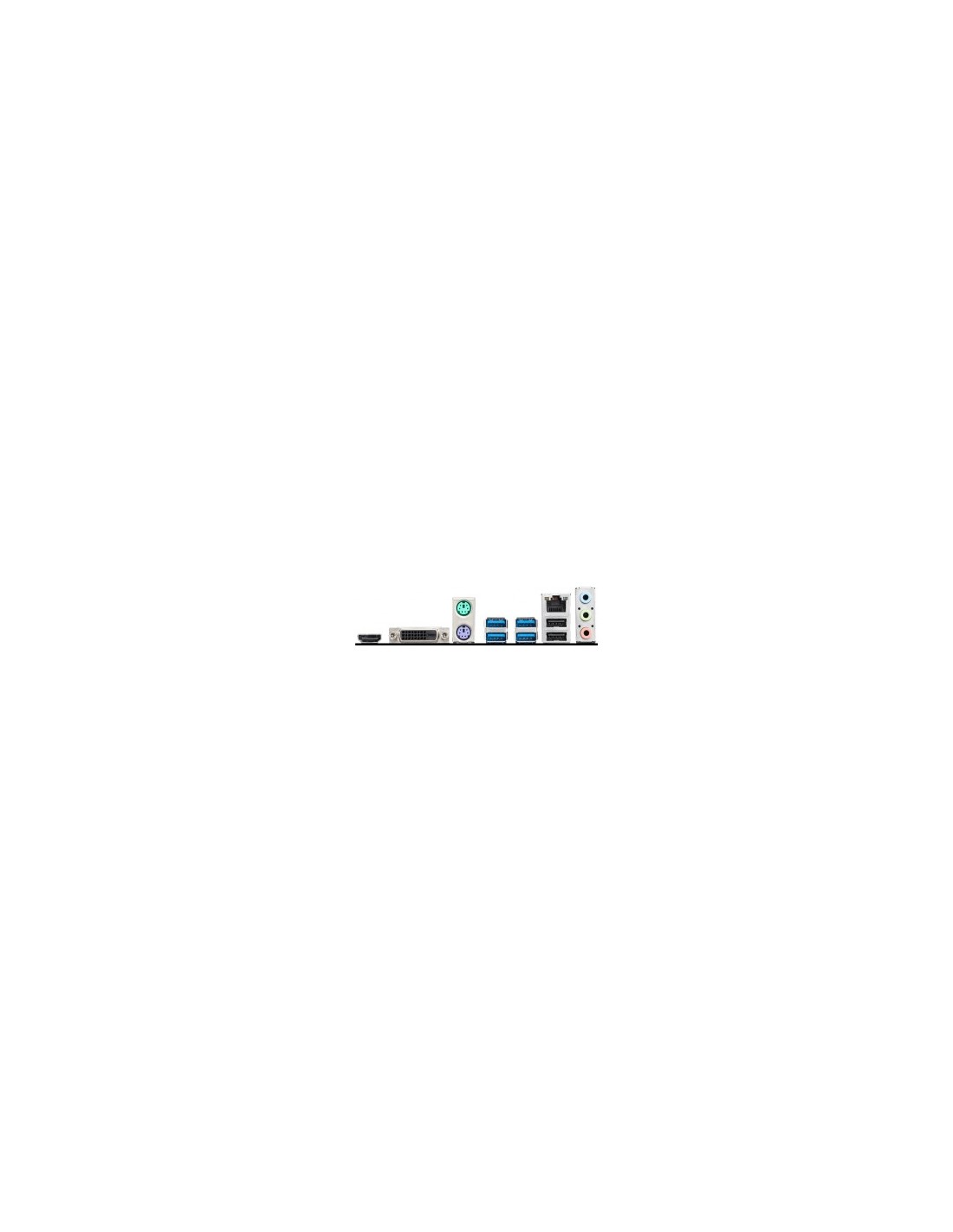

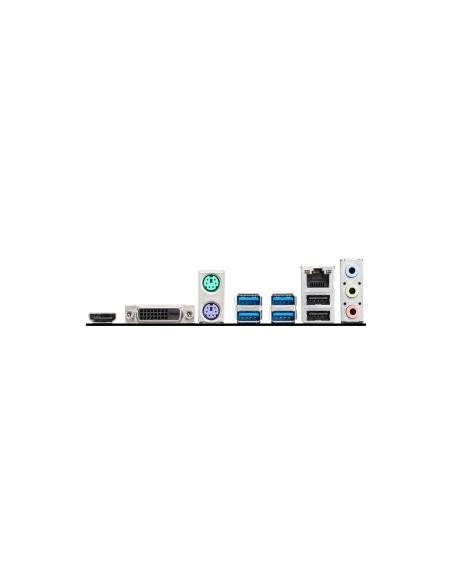

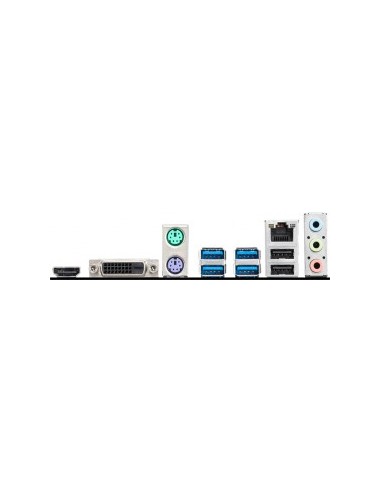

•external connectors:1x DVI-D (iGPU) 1x HDMI 21 (iGPU) 4x USB-A 30 2x USB-A 20 1x Gb LAN (Realtek RTL8111H) 3x jack 1x PS/2 keyboard 1x PS/2 mouse
•Internal connectors:1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (A520) 1x TPM-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 1x fan 4-Pin
•Header Lighting:not available
•buttons/Switches:not available
•Audio:71 (Realtek ALC892)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (A520)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 4-Pin ATX12V
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators)
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου
- 7C96-001R
