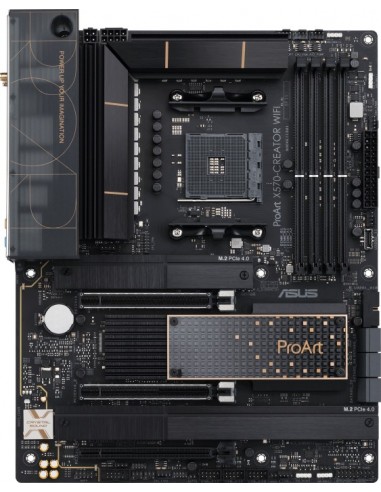

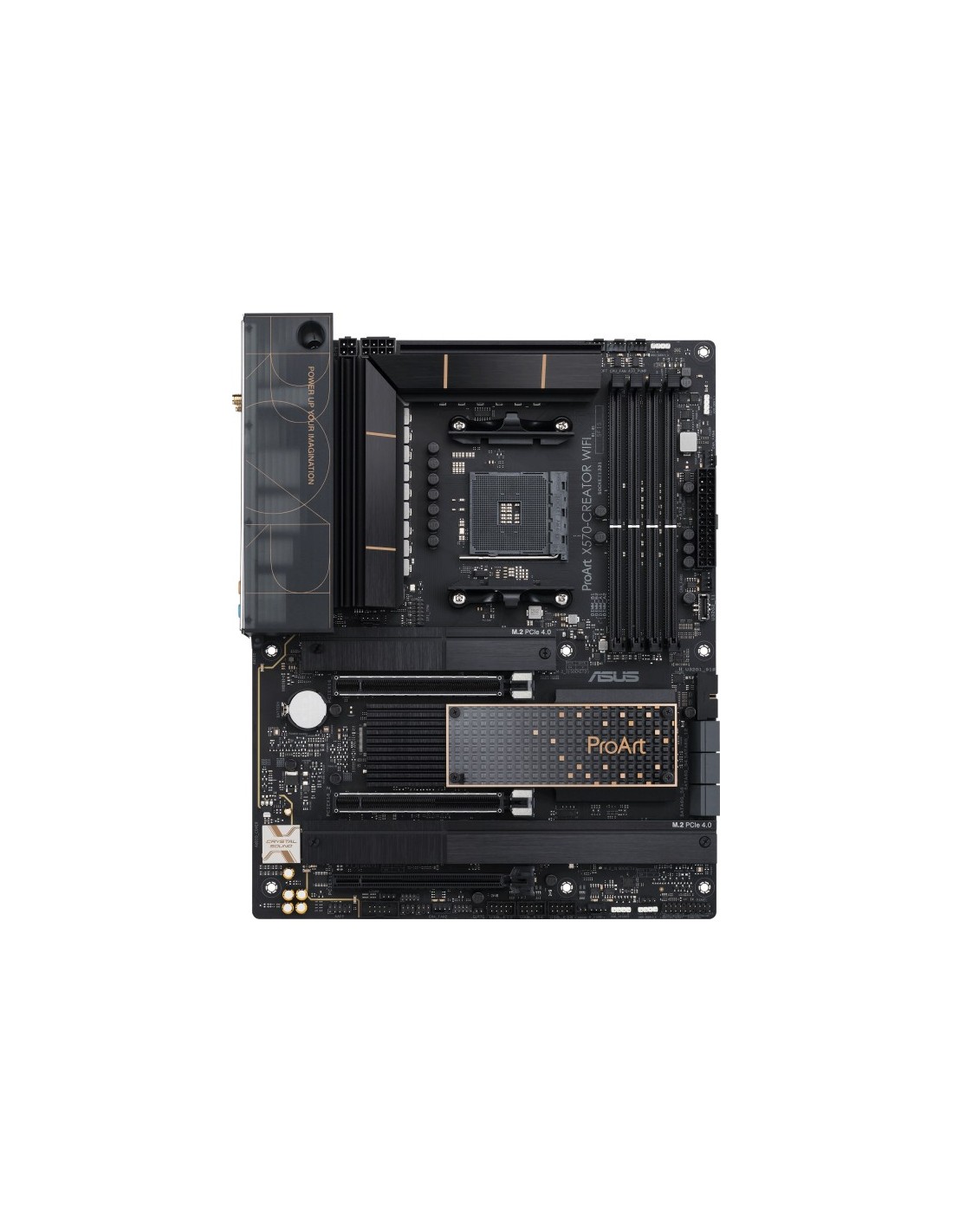

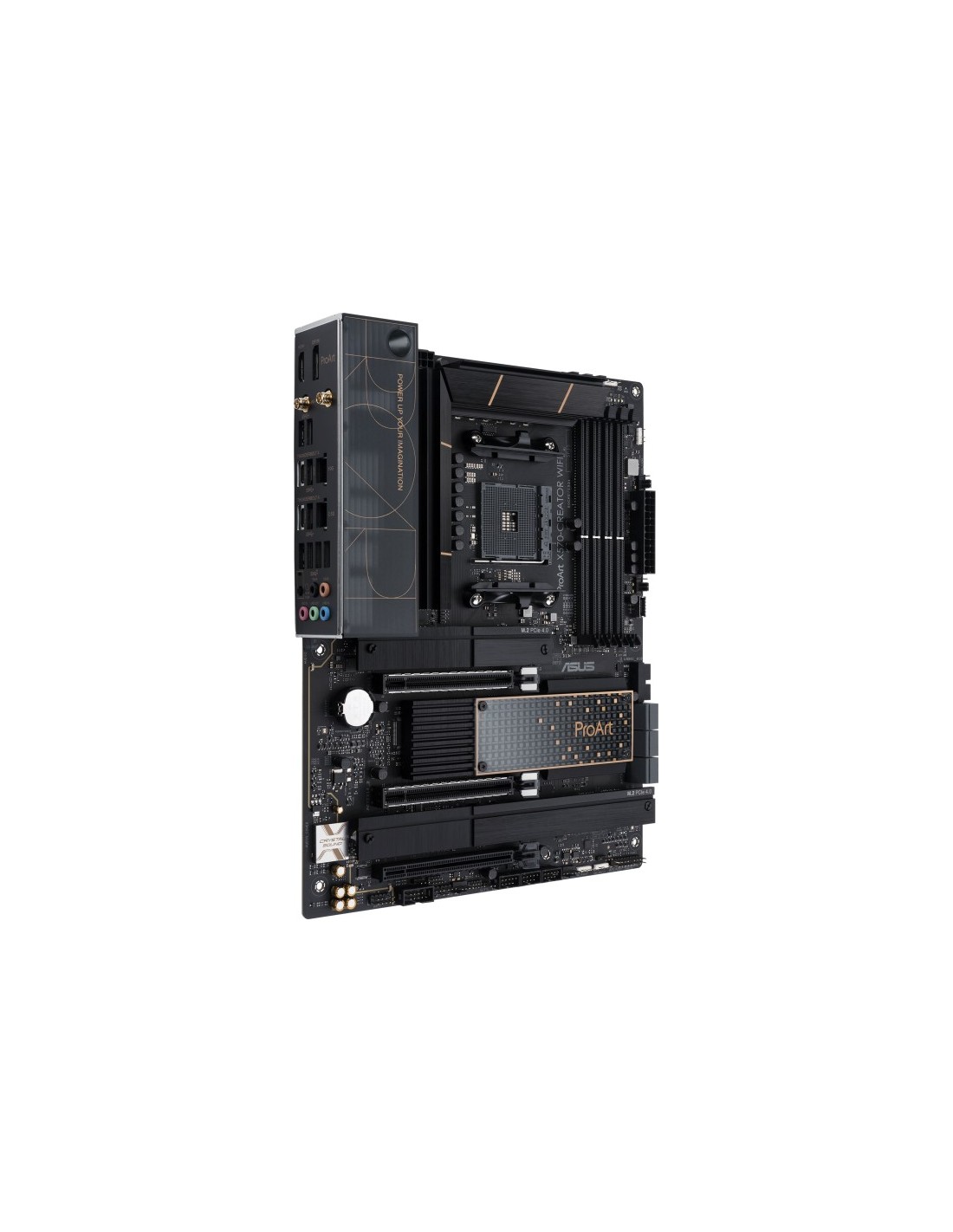

ASUS PROART X570-CREATOR WIFI, MAINBOARD (90MB18Z0-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
41
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
41
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
4,10 €
.
•shape factor:ATX
•Socket:AMD AM4
•chipset:AMD X570
•CPU-Compatibility:Ryzen 5000G Ryzen 5000 Ryzen 4000G Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G without TDP limitation (Manufacturer-list)
•VRM:8 real phases (7+1) 16 virtual phases (14+2) PWM-Controller: ASP1405I (max 8 phases IR35201)
•MOSFETs CPU:14x 70A FDMF3170
•MOSFETs SoC:2x 70A FDMF3170
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:3x PCIe 40 x16 (1x x16 1x x8 1x x4) 2x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 40 x4 2280/2260/2242)

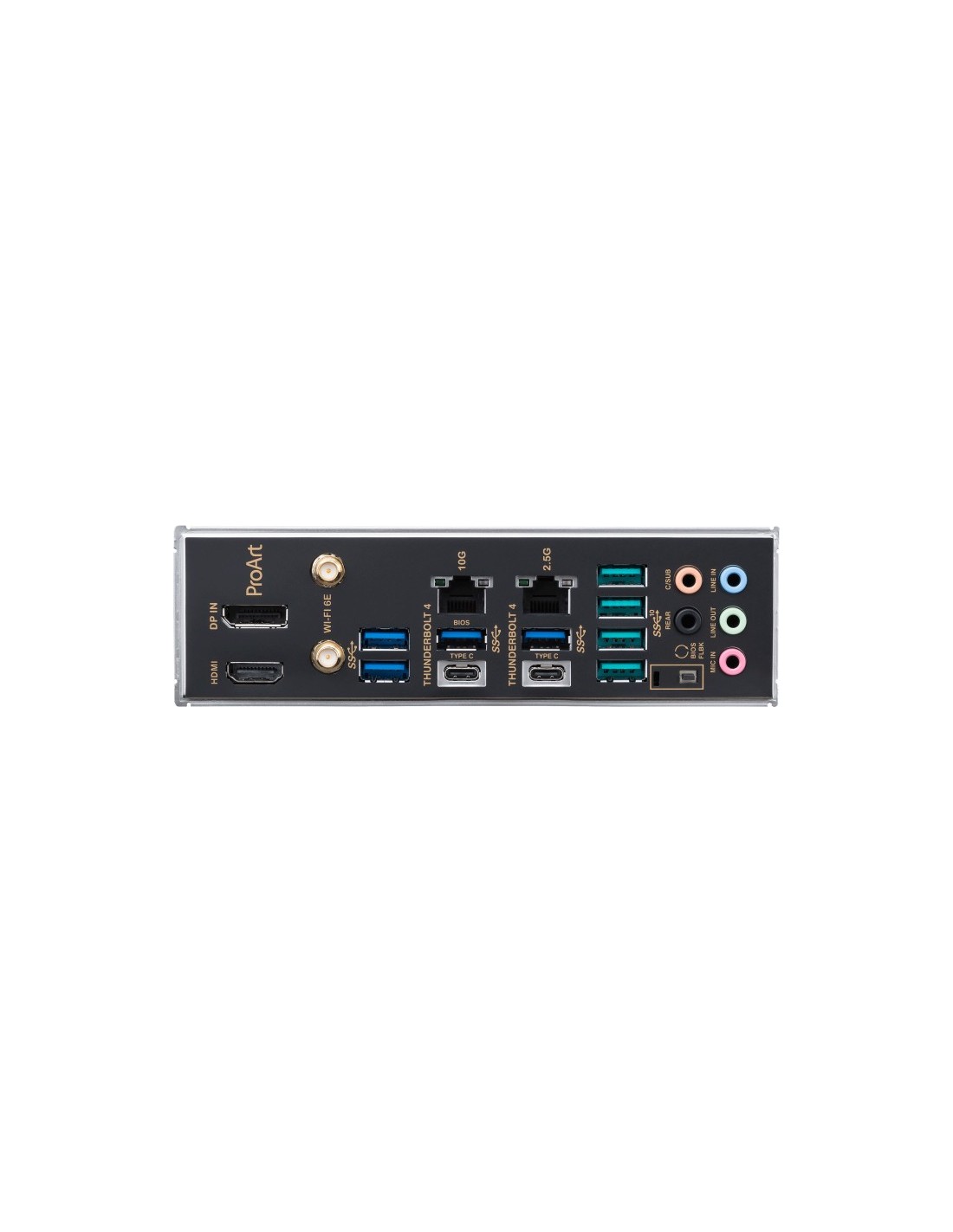

•external connectors:1x HDMI 21 (iGPU) 4x USB-A 31 (10Gb/s) 4x USB-A 30 (5Gb/s) 2x Thunderbolt 4 (Intel JHL8540) 1x 10GBase-T (Marvell AQtion AQC113CS) 1x Gb LAN (Intel I225-V) 5x jack 1x toslink 1x DisplayPort-In
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s) 1x USB 30 Header (5Gb/s 2x USB 30) 3x USB 20 header (480Mb/s 6x USB 20) 6x SATA 6Gb/s (X570) 1x serial 1x TPM-Header
•Header Cooling:2x CPU fan 4-Pin 4x fan 4-Pin 1x AIO-pump 4-Pin 1x pump 4-Pin 1x Thermal-sensor
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 3A) 3x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:USB BIOS Flashback (external)
•Audio:71 (Realtek ALC1220)
•Graphics:iGPU
•Wireless:Wi-Fi 6E (WLAN 80211a/b/g/n/ac/ax 2x2 Intel AX210) Bluetooth 52
•RAID level:0/1/10 (X570)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 3x M2-passive cooler ECC-support
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB18Z0-M0EAY0
No reviews
