•Form factor:ATX
•Chipset:AMD X570
•CPU-Compatibility:Ryzen 3000 Ryzen 3000G/GE Ryzen 2000 TDP-Limit: 105W (Manufacturer)
•VRM:8 real phases (6+2) PWM-Controller: IR35201 (max 8 phases)
•MOSFETs CPU:12x 60A IR3555
•MOSFETs SoC:2x 60A IR3555
•RAM:4x DDR4 DIMM dual PC4-36800U/DDR4-4600 (OC) max 128GB (UDIMM)
•Extension slots:3x PCIe 40 x16 (1x x16 1x x8 1x x4) 2x PCIe 40 x1 1x M2/M-Key (PCIe 40 x4 22110/2280/2260/2242) 2x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242) 1x M2/E-Key (PCIe 2230 occupied with WiFi+BT module)

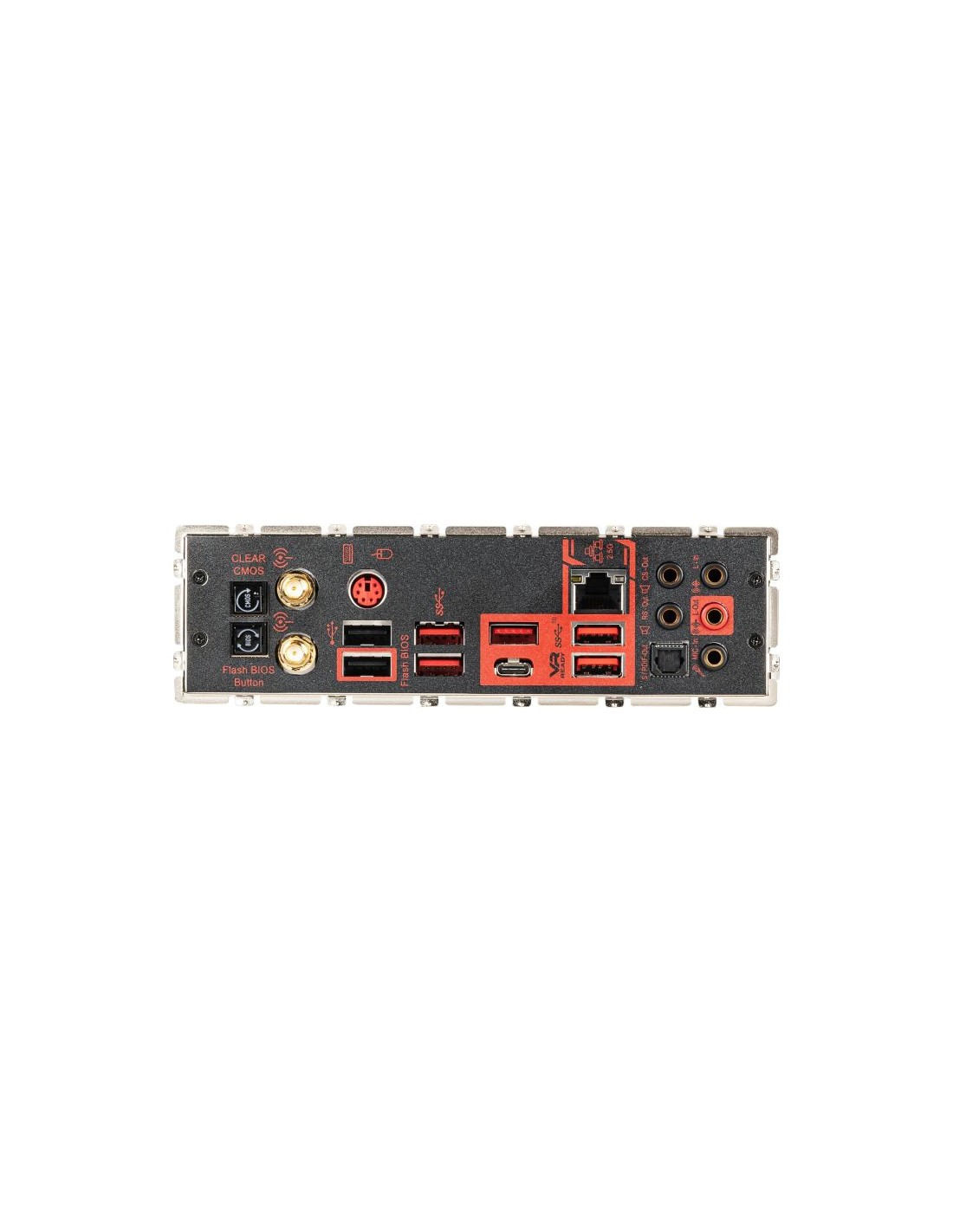

•External connectors:1x USB-C 31 (CPU) 1x USB-A 31 (CPU) 2x USB-A 31 (X570) 2x USB-A 30 2x USB-A 20 1x 25GBase-T (Realtek RTL8125AG) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 31 (20-Pin Key-A Header X570) 4x USB 30 4x USB 20 4x SATA 6Gb/s (X570) 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 5x fan 4-Pin 1x pump 4-Pin
•Header Lighting:1x RGB-Header 4-Pin (5050) 2x RGB-Header 3-Pin (WS2812B) 1x LED-Header 2-Pin 1x Corsair-RGB-Header
•Buttons/Switches:Power-Button (internal) Reset-Button (internal) clear-CMOS-Button (external) USB BIOS Flashback (external)
•Audio:71 (Realtek ALC1220)
•RAID level:0/1/10 (X570)
•Multi-GPU:NVIDIA 2-Way SLI (x8/x8) AMD 3-Way-CrossFireX (x8/x8 x8/x8/x4)
•Power connections:1x 24-Pin ATX 2x 8-Pin EPS12V
•Graphics:not available
•Lighting:not available
•Special features:AMD X570 with fan audio+solid capacitors Diagnostic LED (segment indication) Diagnostic LED (LED indicators) 3x M2-passive cooler Bluetooth 50 + WLAN 80211a/b/g/n/ac/ax (2x2 Intel AX200)
•Warranty:three years (from date of manufacture handling by merchant)
•Note:USB nomenclature
- SKU - Κωδικός Εργοστασίου
- 7C35-010R
No reviews
