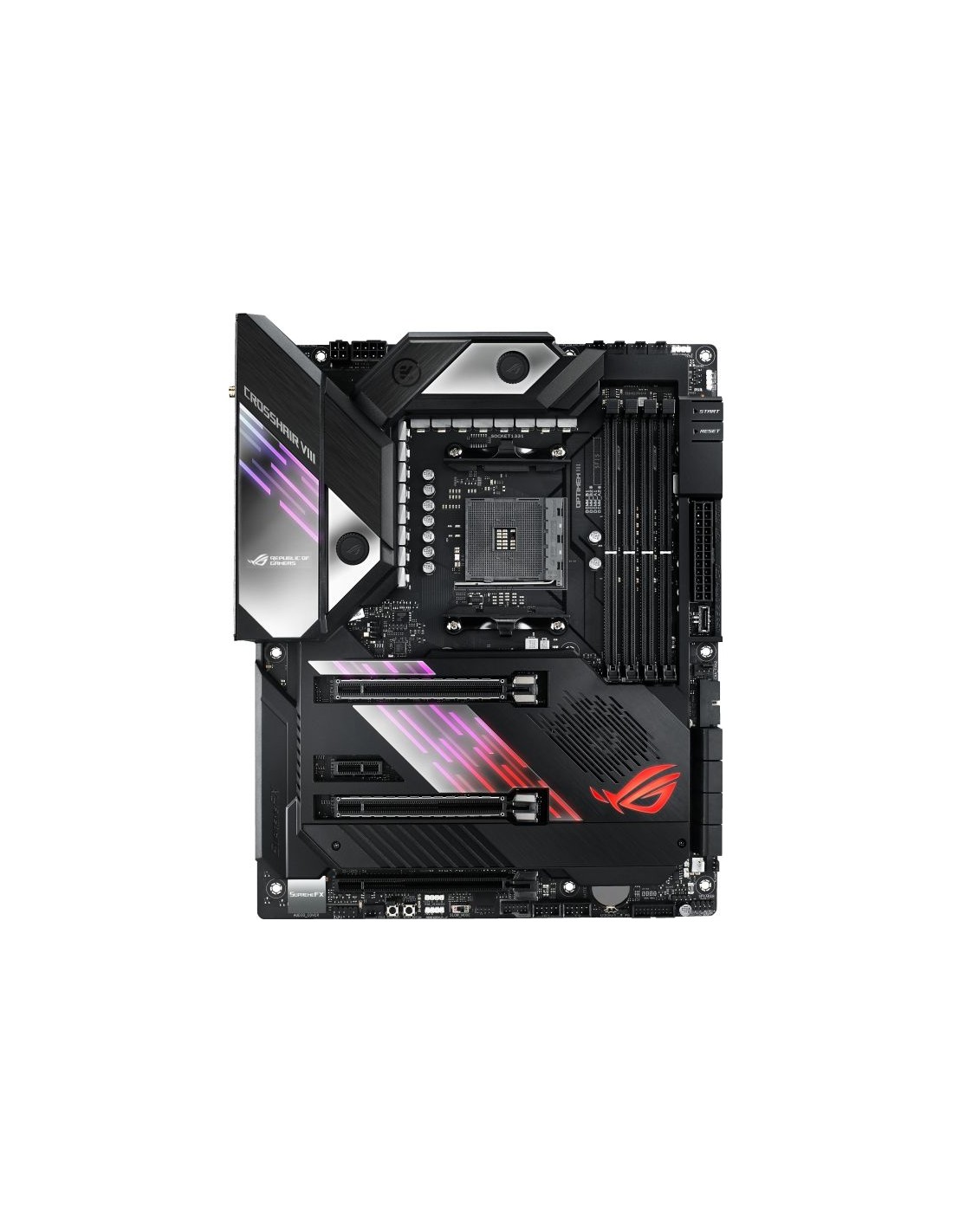

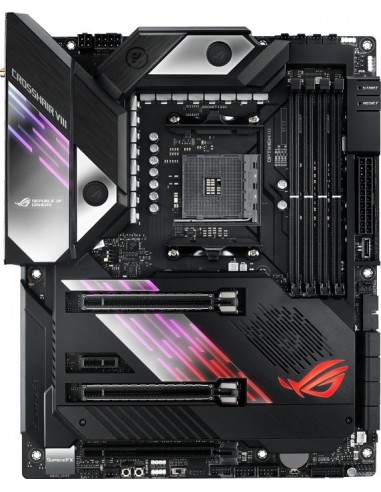

ASUS ROG CROSSHAIR VIII FORMULA, motherboard, (90MB10Z0-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
37
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
37
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
3,70 €
.
•Form factor:ATX
•Chipset:AMD X570
•CPU-Compatibility:Ryzen 3000 Ryzen 3000G/GE Ryzen 2000 Ryzen 2000G/GE TDP-Limit: 105W (Manufacturer)
•VRM:8 real phases (7+1) PWM-Controller: ASP1405 (IR35201) (max 8 phases)
•MOSFETs CPU:12x 60A IR3555
•MOSFETs SoC:4x 60A IR3555
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:3x PCIe 40 x16 (1x x16 1x x8 1x x4) 1x PCIe 40 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242)

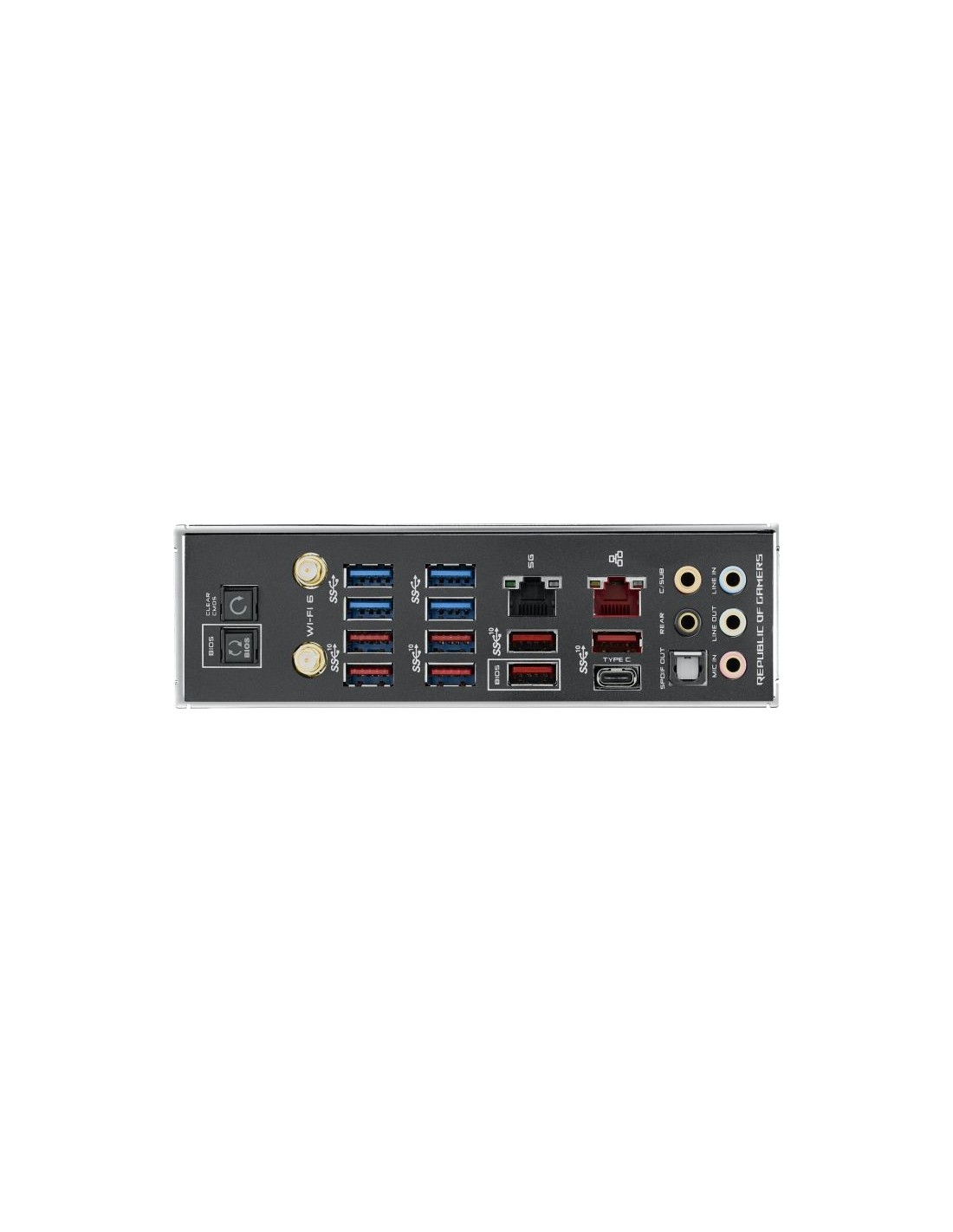

•External connectors:1x USB-C 31 (X570) 3x USB-A 31 (X570) 4x USB-A 31 (CPU) 4x USB-A 30 1x 25GBase-T (Aquantia AQtion AQC111C) 1x Gb LAN (Intel I211-AT) 5x jack 1x toslink
•Internal connectors:1x USB-C 31 (20-Pin Key-A Header X570) 4x USB 30 2x USB 20 8x SATA 6Gb/s (X570) 1x ASUS Node
•Header Cooling:2x CPU fan 4-Pin 5x fan 4-Pin 1x AIO-pump 4-Pin 1x pump 4-Pin 1x Thermal-sensor 1x flow rate-sensor
•Header Lighting:2x RGB-Header 4-Pin (5050) 2x RGB-Header 3-Pin (WS2812B)
•Buttons/Switches:Power-Button (internal) Reset-Button (internal) SafeBoot-Button (internal) Retry-Button (internal) clear-CMOS-Button (external) USB BIOS Flashback (external) SlowMode switch (internal)
•Audio:71 (Realtek ALC1220/ASUS SupremeFX) DAC (ESS ES9023P Sabre)
•RAID level:0/1/10 (X570)
•Multi-GPU:NVIDIA 3-Way SLI (x8/x8 x8/x8/x4) AMD 3-Way-CrossFireX (x8/x8 x8/x8/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Graphics:not available
•Lighting:RGB 3 zones (chipset cooler I/O cover audio cover)
•Special features:AMD X570 with fan audio+solid capacitors Diagnostic LED (LED indicators) 2x M2-passive cooler pre-installed water cooling block (VRM) I/O-shield integrated Backplate front panel Bluetooth 50 + WLAN 80211a/b/g/n/ac/ax (2x2 Intel Wi-Fi 6 AX200)
•Warranty:three years (handling by merchant)
•Note:USB nomenclature
- SKU - Κωδικός Εργοστασίου
- 90MB10Z0-M0EAY0
No reviews
