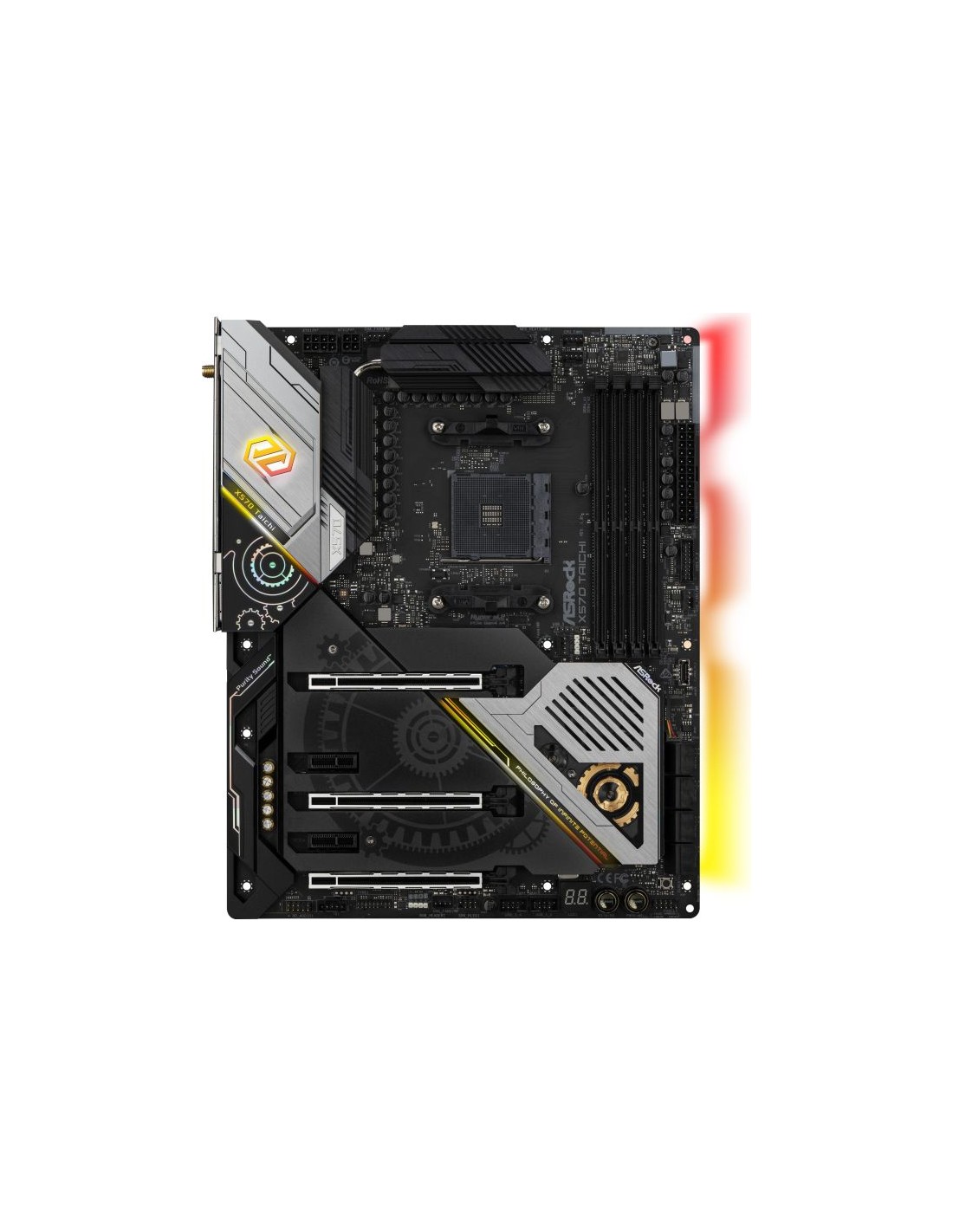

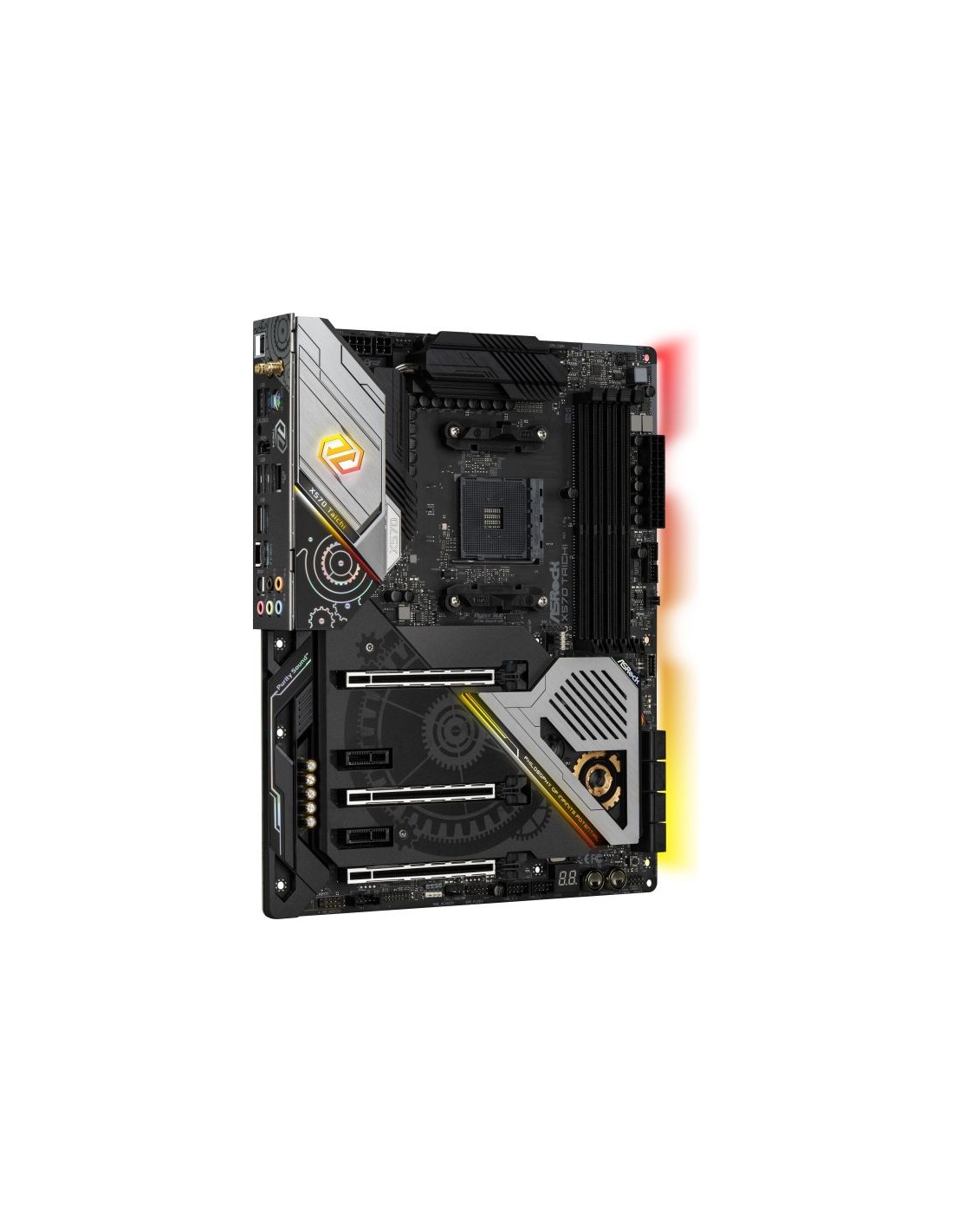

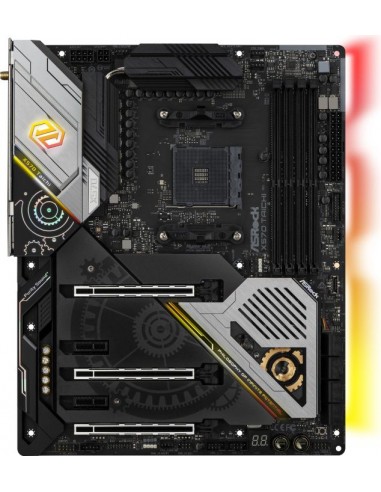

ASRock X570 Taichi, AMD X570 motherboard - socket AM4 (90-MXBA80-A0UAYZ)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
26
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
26
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
2,60 €
.
•Form factor:ATX
•Chipset:AMD X570
•CPU-Compatibility:Ryzen 3000 Ryzen 3000G/GE Ryzen 2000 TDP-Limit: 105W (Manufacturer)
•VRM:7 real phases (6+1) PWM-Controller: ISL69147 (max 7 phases)
•MOSFETs CPU:12x 50A SIC634
•MOSFETs SoC:2x 50A SIC634
•RAM:4x DDR4 DIMM dual PC4-37333U/DDR4-4666 (OC) max 128GB (UDIMM)
•Extension slots:3x PCIe 40 x16 (1x x16 1x x8 1x x4) 2x PCIe 40 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242/2230) 1x M2/M-Key (PCIe 40 x4 2280/2260/2242) 1x M2/M-Key (PCIe 40 x4 2280/2260) 1x M2/E-Key (PCIe 2230 occupied with WiFi+BT module)

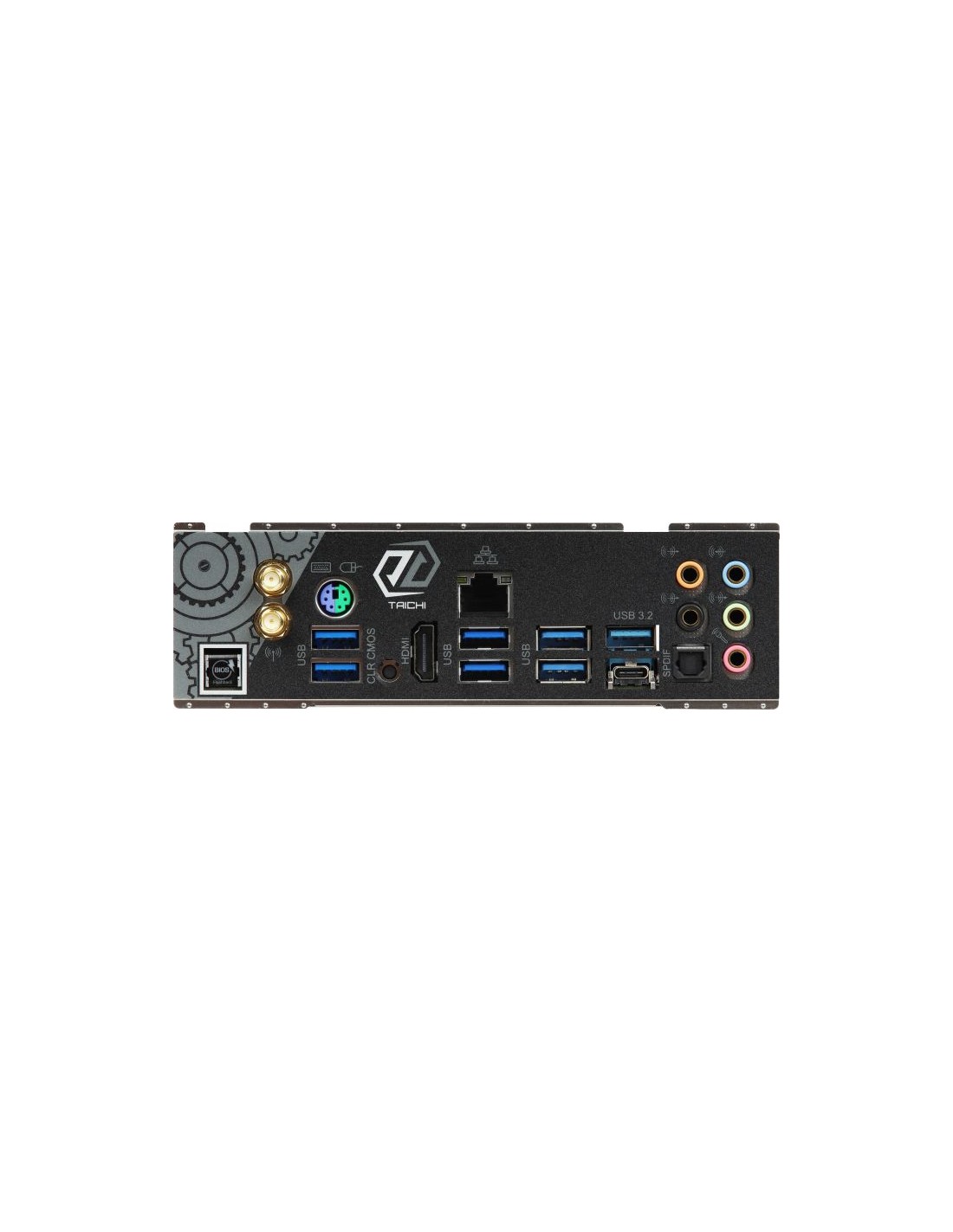

•External connectors:1x HDMI 20 (CPU) 1x USB-C 31 (X570) 1x USB-A 31 (X570) 6x USB-A 30 1x Gb LAN (Intel I211-AT) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 31 (20-Pin Key-A Header X570) 2x USB 30 4x USB 20 8x SATA 6Gb/s (X570) 1x Thunderbolt-Header 5-Pin 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 4x fan/pump 4-Pin 1x USB-Header 4-Pin (AMD LED Fan USB Header)
•Header Lighting:2x RGB-Header 4-Pin (5050) 1x RGB-Header 3-Pin (WS2812B)
•Buttons/Switches:Power-Button (internal) Reset-Button (internal) clear-CMOS-Button (internal) clear-CMOS-Button (external) USB BIOS Flashback (external)
•Audio:71 (Realtek ALC1220) DTS Connect
•RAID level:0/1/10 (X570)
•Multi-GPU:NVIDIA 2-Way SLI (x8/x8) AMD 3-Way-CrossFireX (x8/x8 x8/x8/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•Graphics:CPU
•Lighting:RGB 3 zones (chipset cooler I/O cover page right)
•Special features:AMD X570 with fan audio+solid capacitors Diagnostic LED (segment indication) 3x M2-passive cooler I/O-shield integrated Backplate front panel Bluetooth 50 + WLAN 80211a/b/g/n/ac/ax (2x2 Intel)
•Warranty:three years (handling by merchant)
•Note:USB nomenclature
- SKU - Κωδικός Εργοστασίου
- 90-MXBA80-A0UAYZ
No reviews
