•shape factor:\u00b5ATX
•chipset:AMD B450
•CPU-Compatibility:Ryzen 3000 Ryzen 3000G Ryzen 2000 Ryzen 2000G Ryzen 1000 Athlon 3000G Athlon 200G without TDP limitation (Manufacturer-list)
•RAM:4x DDR4 DIMM dual PC4-35200U/DDR4-4400 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 30 x16 1x PCIe 20 x16 (x4) 1x PCIe 20 x1 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242) 1x M2/M-Key (PCIe 30 x2/SATA 2280/2260/2242)

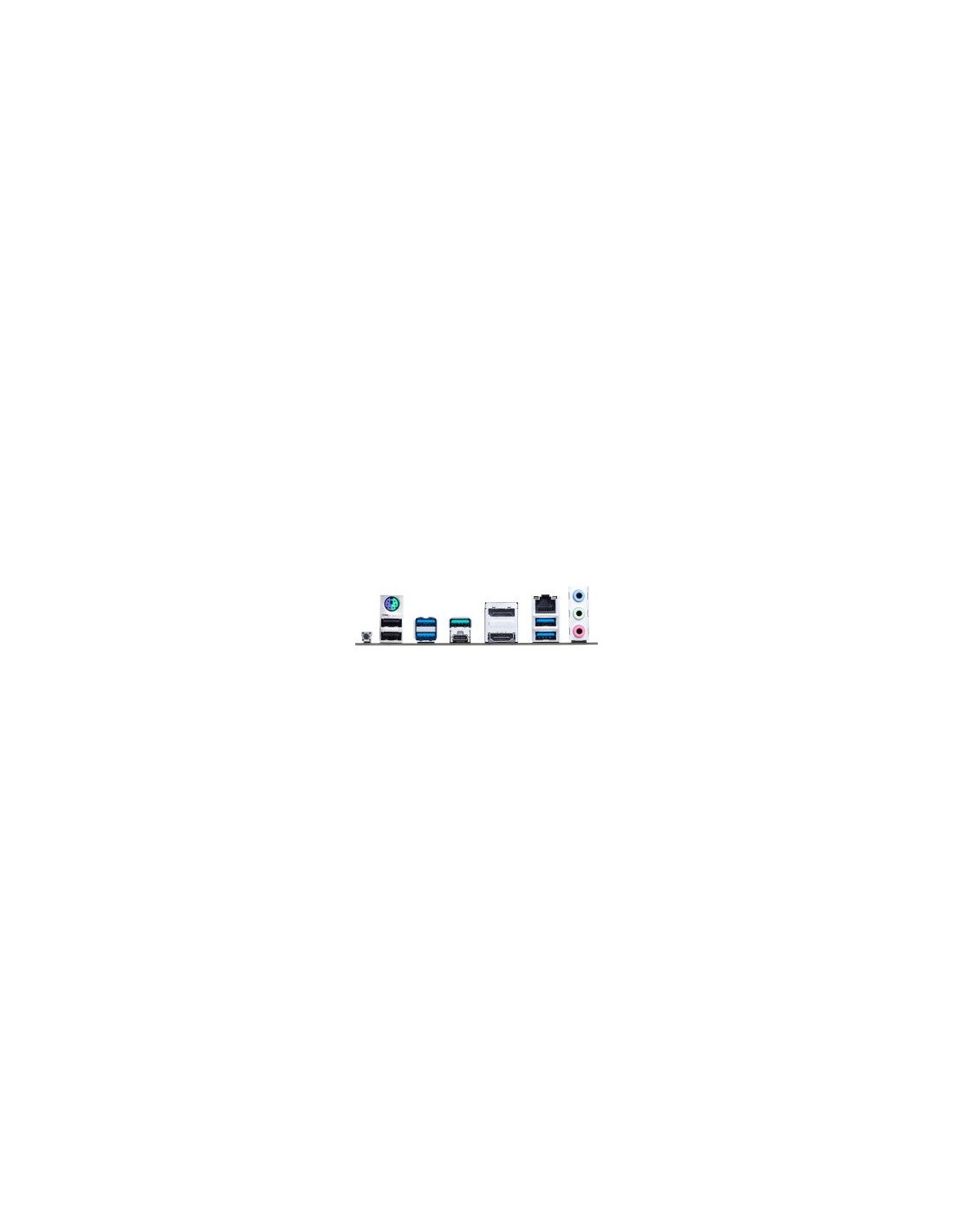

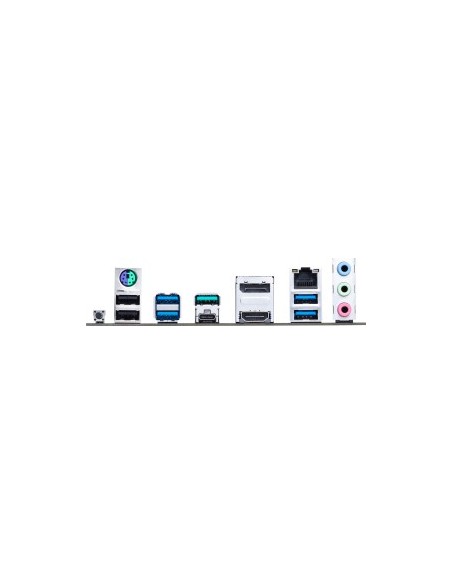

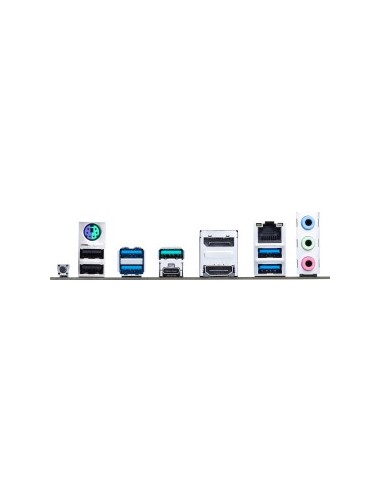

•external connectors:1x HDMI 20b (iGPU) 1x DisplayPort 12 (iGPU) 1x USB-C 31 (B450) 1x USB-A 31 (B450) 4x USB-A 30 2x USB-A 20 1x Gb LAN (Realtek RTL8111H) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (B450) 2x SATA 6Gb/s (CPU) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A)
•buttons/Switches:USB BIOS Flashback (external)
•Audio:71 (Realtek ALC1200) DTS Custom audio
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B450)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:RGB 1 zone (page right)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors ECC-support
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB1610-M0EAY0
