•Form factor:ATX
•Chipset:AMD B450
•CPU-Compatibility:Ryzen 3000 Ryzen 2000 Ryzen 2000G/GE Ryzen 1000 TDP-Limit: 105W (Manufacturer)
•VRM:6 real phases (4+2) PWM-Controller: RT8894A (max 6 phases)
•MOSFETs CPU:8x 46A 4C029N/4C024N
•MOSFETs SoC:4x 46A 4C029N/4C024N
•RAM:4x DDR4 DIMM dual PC4-33066U/DDR4-4133 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 30 x16 1x PCIe 20 x16 (x4) 4x PCIe 20 x1 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242)

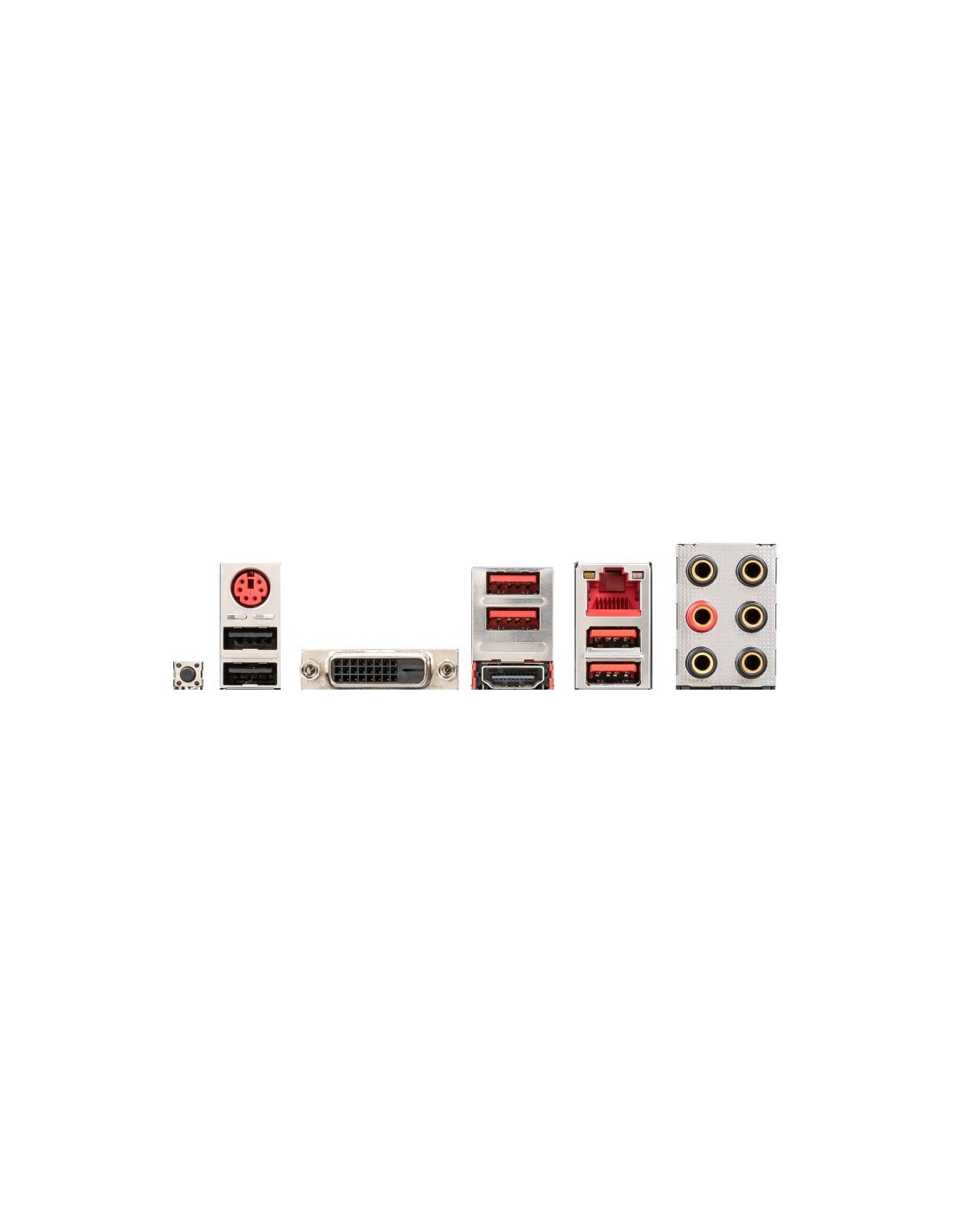

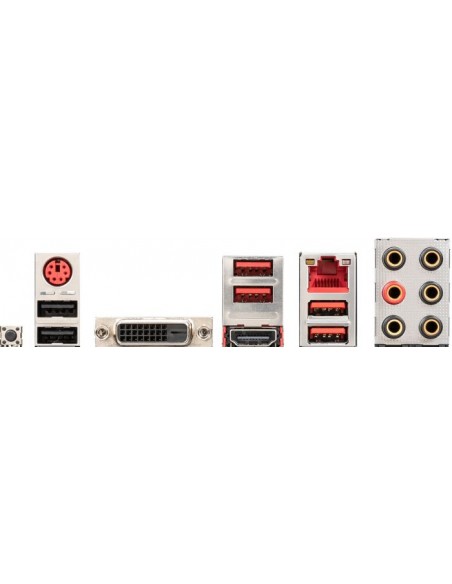

•External connectors:1x DVI-D 1x HDMI 14 2x USB-A 31 (B450) 2x USB-A 30 2x USB-A 20 1x Gb LAN (Realtek RTL8111H) 6x jack 1x PS/2 Combo
•Internal connectors:2x USB 30 4x USB 20 4x SATA 6Gb/s (B450) 2x SATA 6Gb/s (CPU) 1x serial 1x parallel 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 4x fan 4-Pin 1x fan/pump 4-Pin
•Header Lighting:2x RGB-Header 4-Pin (5050)
•Buttons/Switches:USB BIOS Flashback (external)
•Audio:71 (Realtek ALC892)
•RAID level:0/1/10 (B450)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Graphics:CPU
•Lighting:not available
•Special features:audio+solid capacitors Diagnostic LED (LED indicators)
•Warranty:three years (from date of manufacture handling by merchant)
•Note:motherboard certified for HDMI 14 HDMI 20 possible with Ryzen 2000 and higher
- SKU - Κωδικός Εργοστασίου
- 7B86-016R
No reviews
