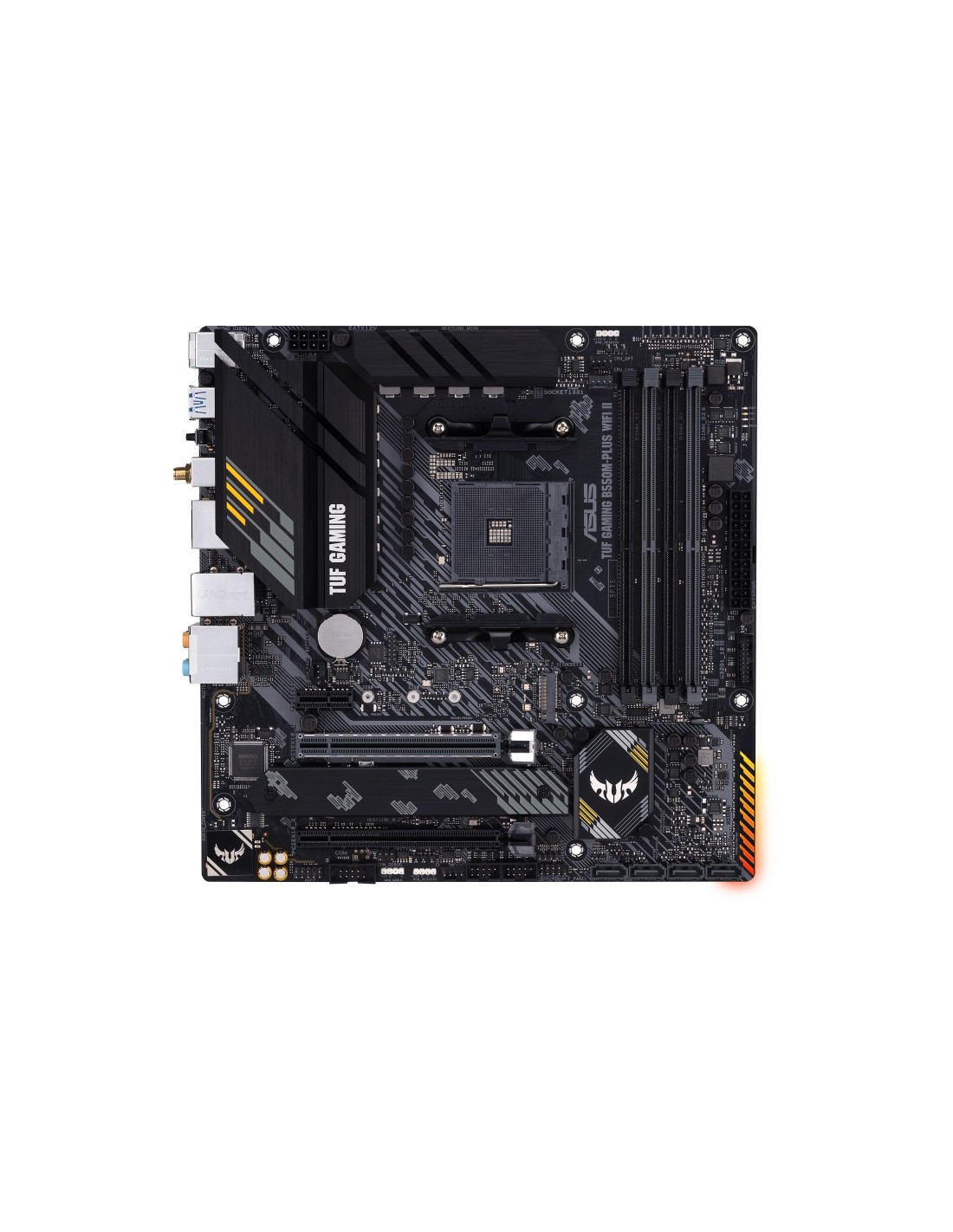

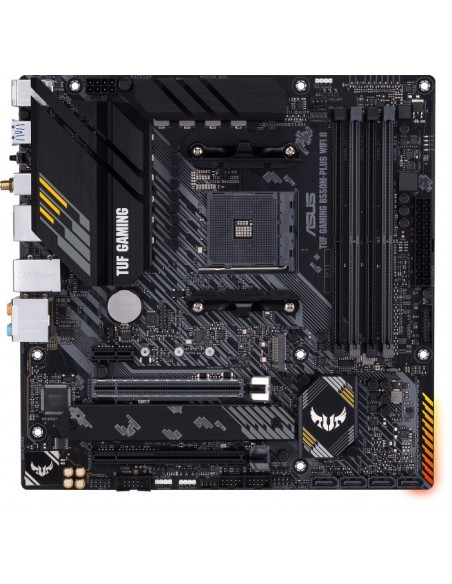

ASUS TUF GAMING B550M-PLUS WI-FI II, Motherboard (90MB19Y0-M0EAY0)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
12
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
12
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,20 €
.
•shape factor:µATX
•Socket:AMD AM4
•chipset:AMD B550
•CPU-Compatibility:Ryzen 5000G Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•RAM:4x DDR4 DIMM dual PC4-38933U/DDR4-4866 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242)

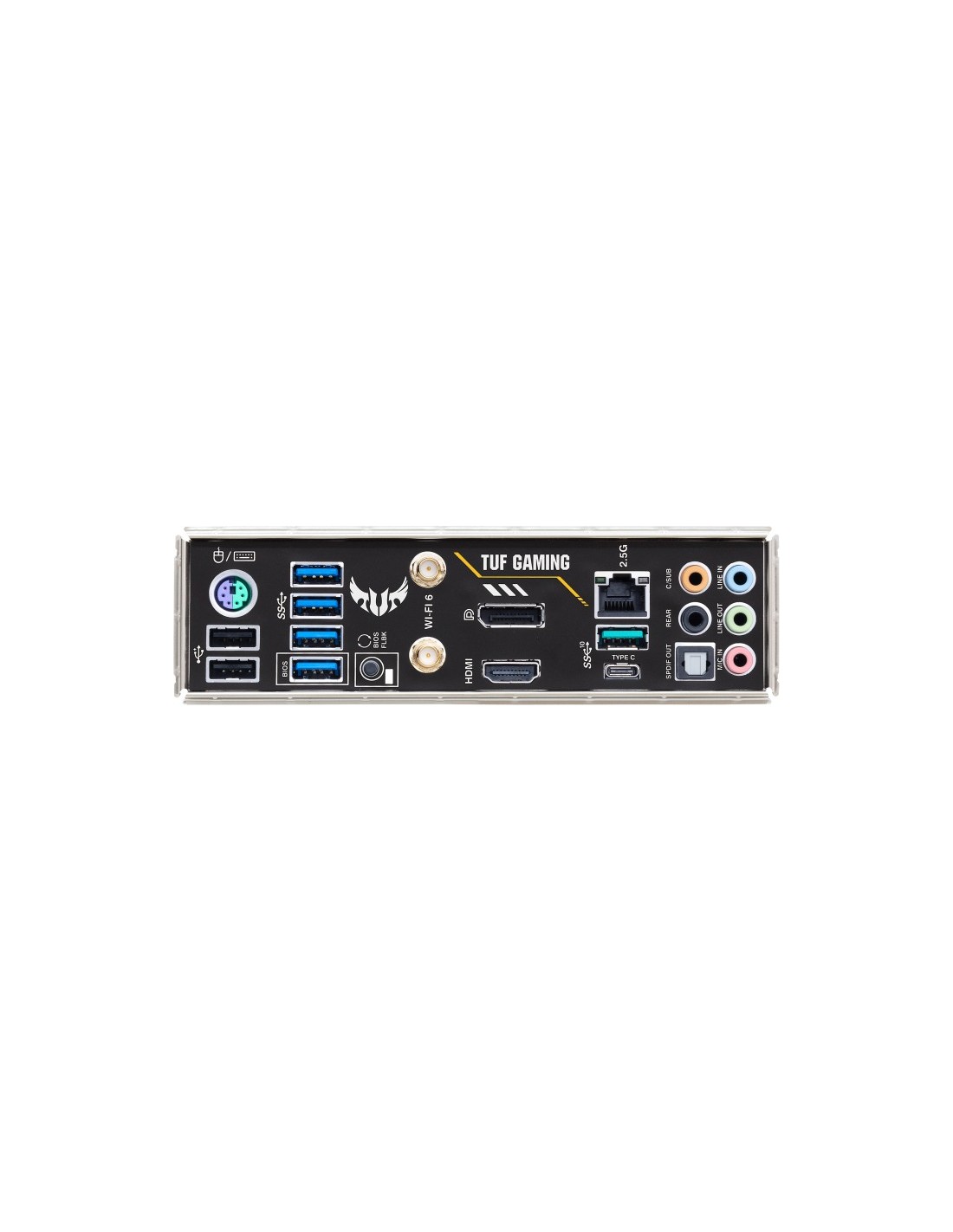

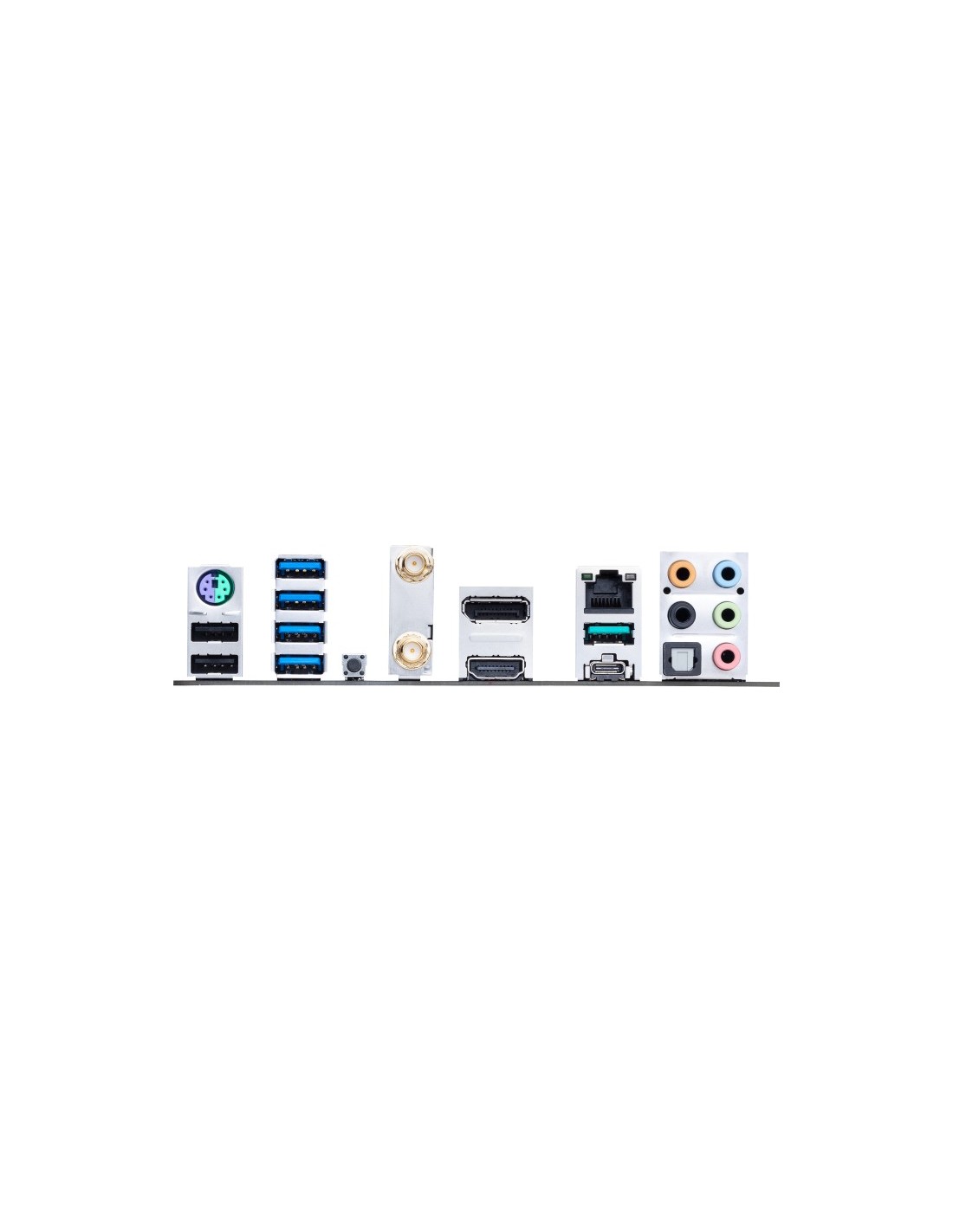

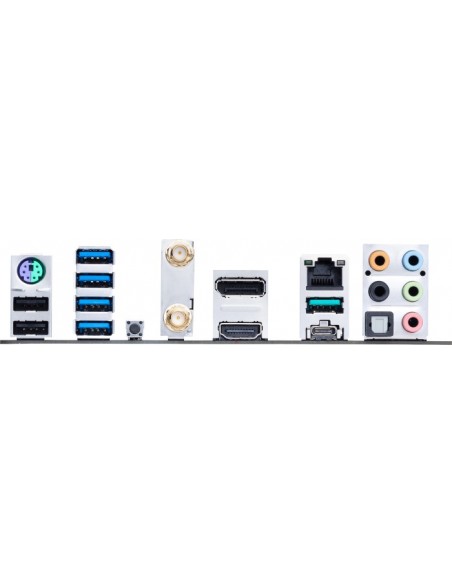

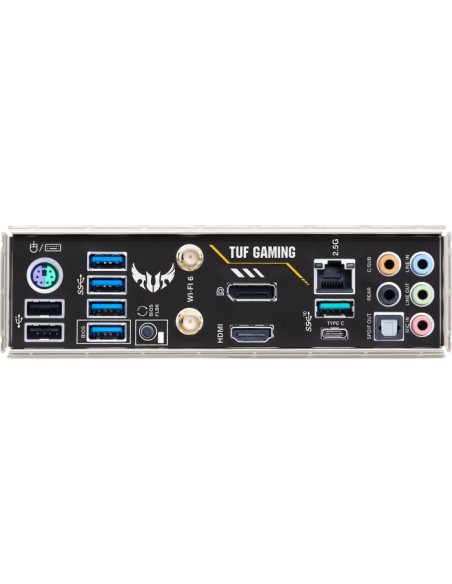

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 12 (iGPU) 1x USB-C 31 (10Gb/s B550) 1x USB-A 31 (10Gb/s B550) 4x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Realtek RTL8125B) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (5Gb/s 2x USB 30) 2x USB 20 header (480Mb/s 4x USB 20) 4x SATA 6Gb/s (B550) 1x serial 1x TPM-Header 1x Speaker-Header 1x COM Debug-Header
•Header Cooling:2x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 1x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:USB BIOS Flashback (external)
•Audio:71 (Realtek ALC897) DTS Custom audio
•Graphics:iGPU
•Wireless:Wi-Fi 6 (WLAN 80211a/b/g/n/ac/ax 2x2 Intel AX200) Bluetooth 52
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•VRM:10 virtual phases (8+2) 6 real phases (4+2) PWM-Controller: ASP1106 (RT3667BE max 6 phases)
•MOSFETs CPU:8x 50A SiC639
•MOSFETs SoC:2x 50A SiC639
•Lighting:RGB 1 zone (page right)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 1x M2-passive cooler ECC-support onboard TPM 20 support (AMD fTPM additional Manufacturer link pay attention)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90MB19Y0-M0EAY0
