•shape factor:ATX
•Socket:AMD AM4
•chipset:AMD B550
•CPU-Compatibility:Ryzen 5000G Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•RAM:4x DDR4 DIMM dual PC4-39466U/DDR4-4933 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x16 (1x x4 1x x1) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242) 1x M2/E-Key (PCIe 2230)

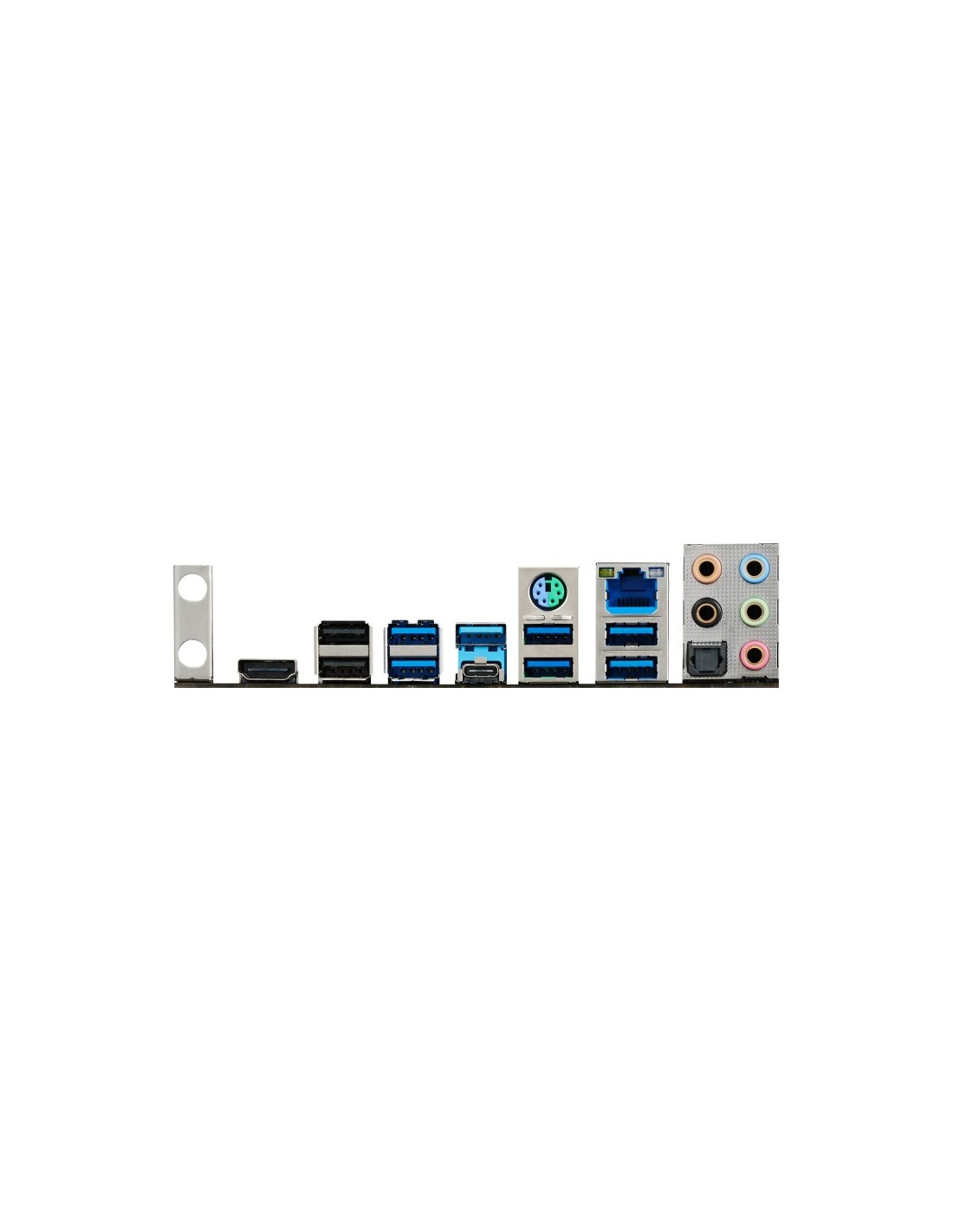

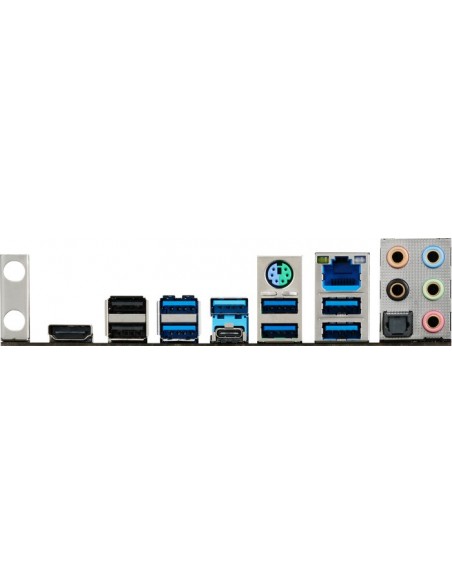

•external connectors:1x HDMI 21 (iGPU) 1x USB-C 31 (10Gb/s B550) 1x USB-A 31 (10Gb/s B550) 6x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x 25GBase-T (Killer E3100G) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 31 Key-A Header (10Gb/s B550) 2x USB 30 Header (5Gb/s 4x USB 30 ASM1074) 3x USB 20 header (480Mb/s 6x USB 20) 6x SATA 6Gb/s (B550) 1x Thunderbolt-Header 5-Pin 1x TPM-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 5x fan/pump 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V 1x 4-Pin ATX12V
•VRM:10 virtual phases (8+2) 6 real phases (4+2) PWM-Controller: uP9505P (max 6 phases)
•MOSFETs CPU:8x 50A SiC654
•MOSFETs SoC:2x 50A SiC654
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 1x M2-passive cooler ECC-support incl Graphics Cards-Mounting onboard TPM 20 support (AMD fTPM)
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 90-MXBGH0-A0UAYZ
