•shape factor:µATX
•Socket:AMD AM4
•chipset:AMD B550
•CPU-Compatibility:Ryzen 5000G Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:unknown
•MOSFETs CPU:unknown
•MOSFETs SoC:unknown
•RAM:4x DDR4 DIMM dual PC4-39466U/DDR4-4933 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242) 1x M2/E-Key (PCIe 2230)

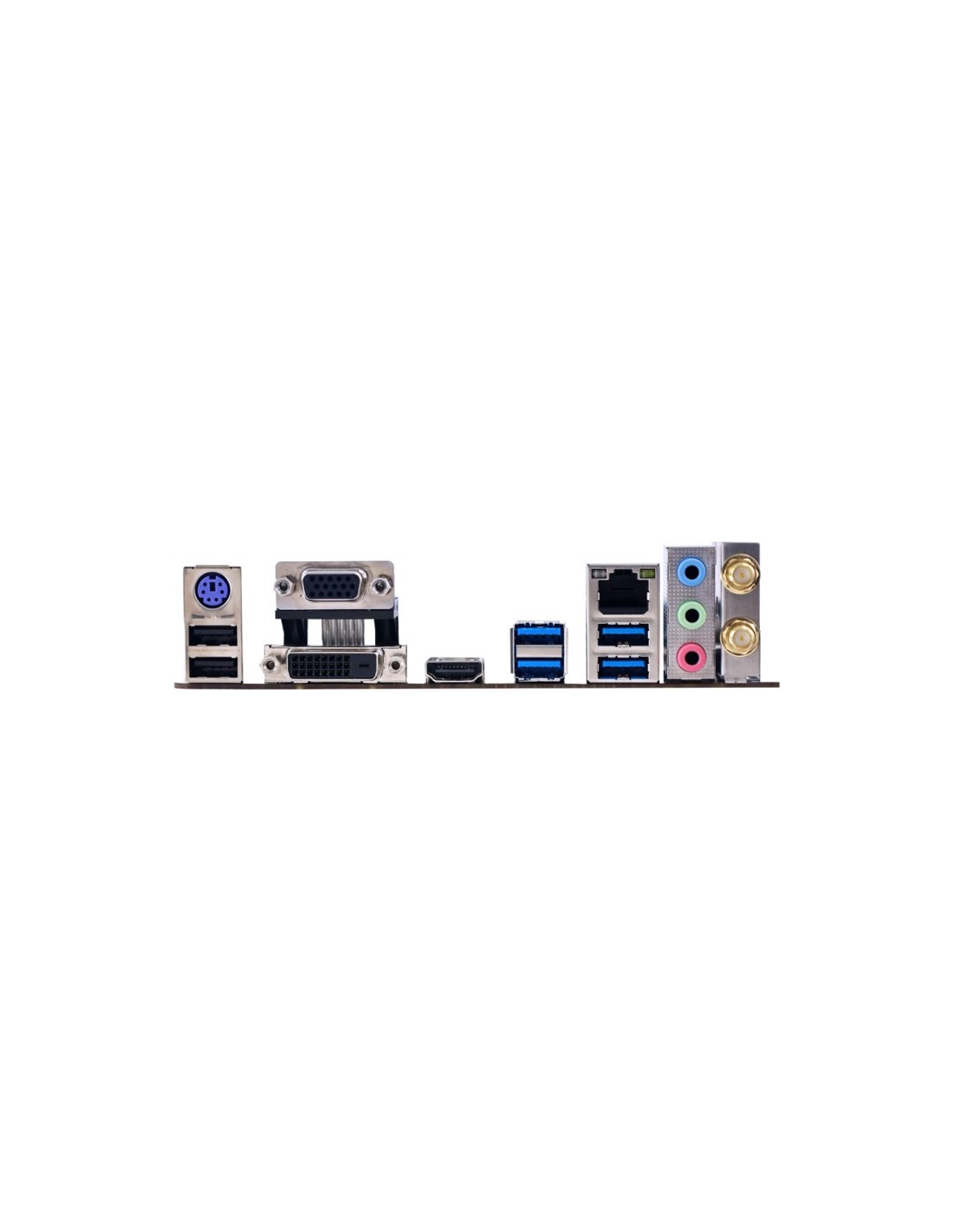

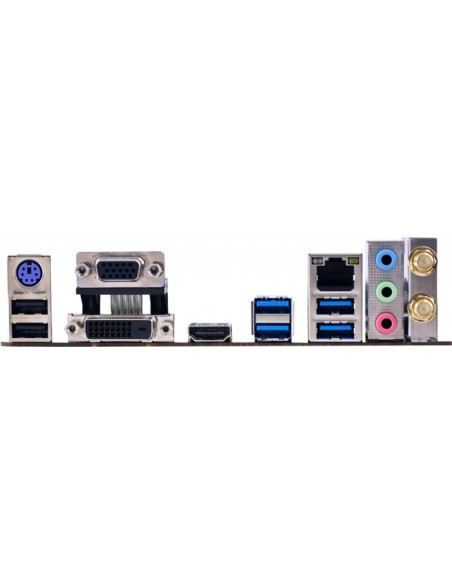

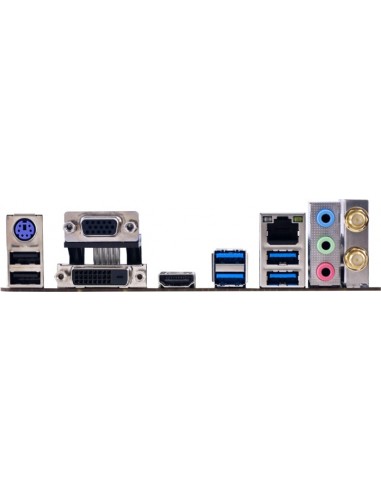

•external connectors:1x VGA (iGPU) 1x DVI-D (iGPU) 1x HDMI 21 (iGPU) 4x USB-A 30 (5Gb/s) 2x USB-A 20 (480Mb/s) 1x Gb LAN (Realtek RTL8111H) 3x jack 1x PS/2 Combo
•Internal connectors:2x USB 30 Header (5Gb/s 4x USB 30) 1x USB 20 header (480Mb/s 2x USB 20) 4x SATA 6Gb/s (B550) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:not available
•buttons/Switches:not available
•Audio:71 (Realtek ALC897)
•Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:not available
•Special features:All solid capacitors Diagnostic LED (LED indicators) ECC-support
•Warranty:three years (handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- B550MX/E PRO
