•shape factor:\u00b5ATX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:6 real phases (4+2) PWM-Controller: RT8894 (max 6 phases)
•MOSFETs CPU:8x 46A 4C029N/4C024N
•MOSFETs SoC:4x 46A 4C029N/4C024N
•RAM:4x DDR4 DIMM dual PC4-35200U/DDR4-4400 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260/2242) 1x M2/M-Key (PCIe 30 x4 2280/2260/2242)

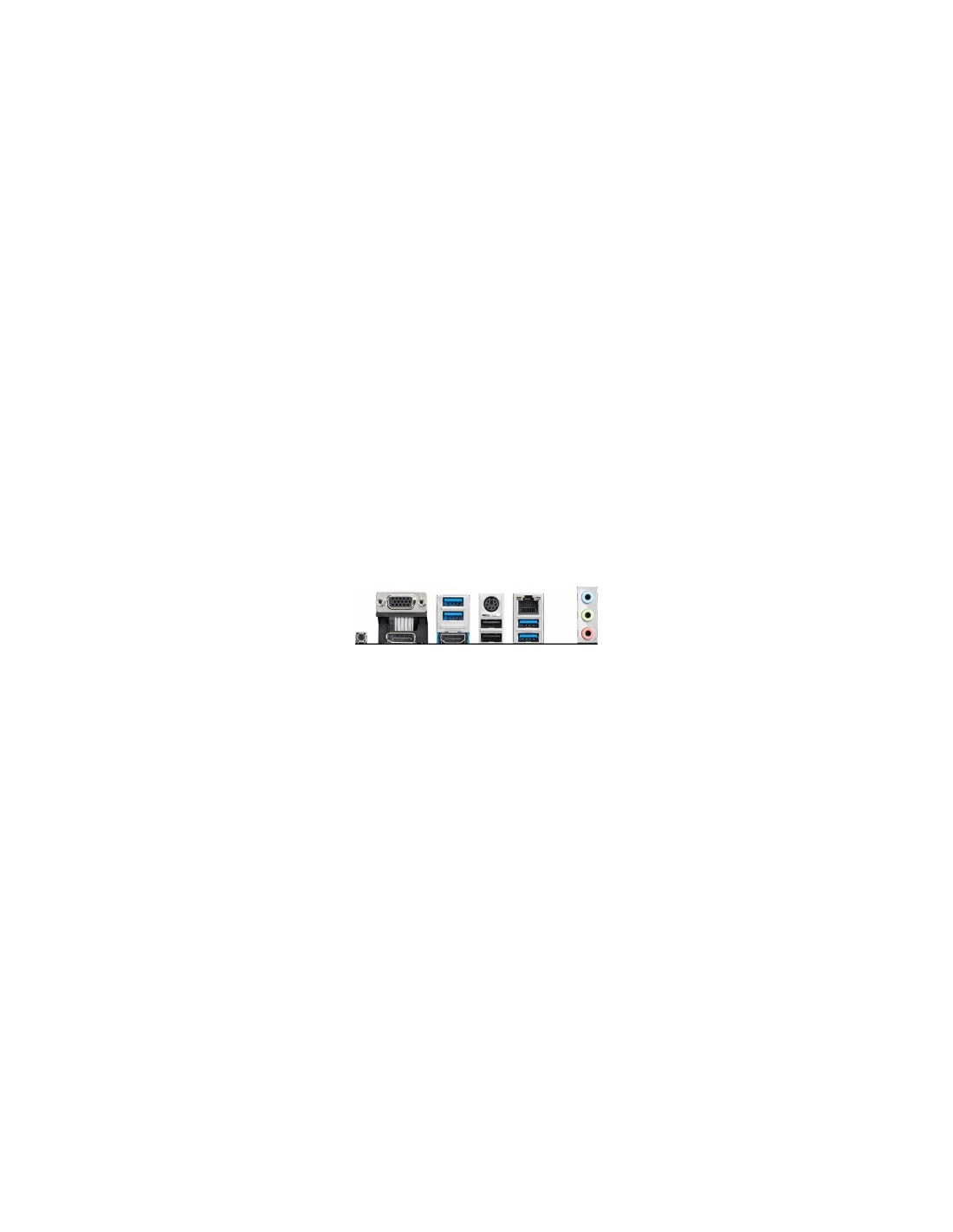

•external connectors:1x VGA (iGPU) 1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 4x USB-A 30 2x USB-A 20 1x Gb LAN (Realtek RTL8111HN) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB-C 30 Key-A Header 1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (B550) 1x serial 1x TPM-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 3x fan 4-Pin 1x fan/pump 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:USB BIOS Flashback (external) LED switch (internal)
•Audio:71 (Realtek ALC892)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) 1x M2-passive cooler ECC-support
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- 7C95-017R
