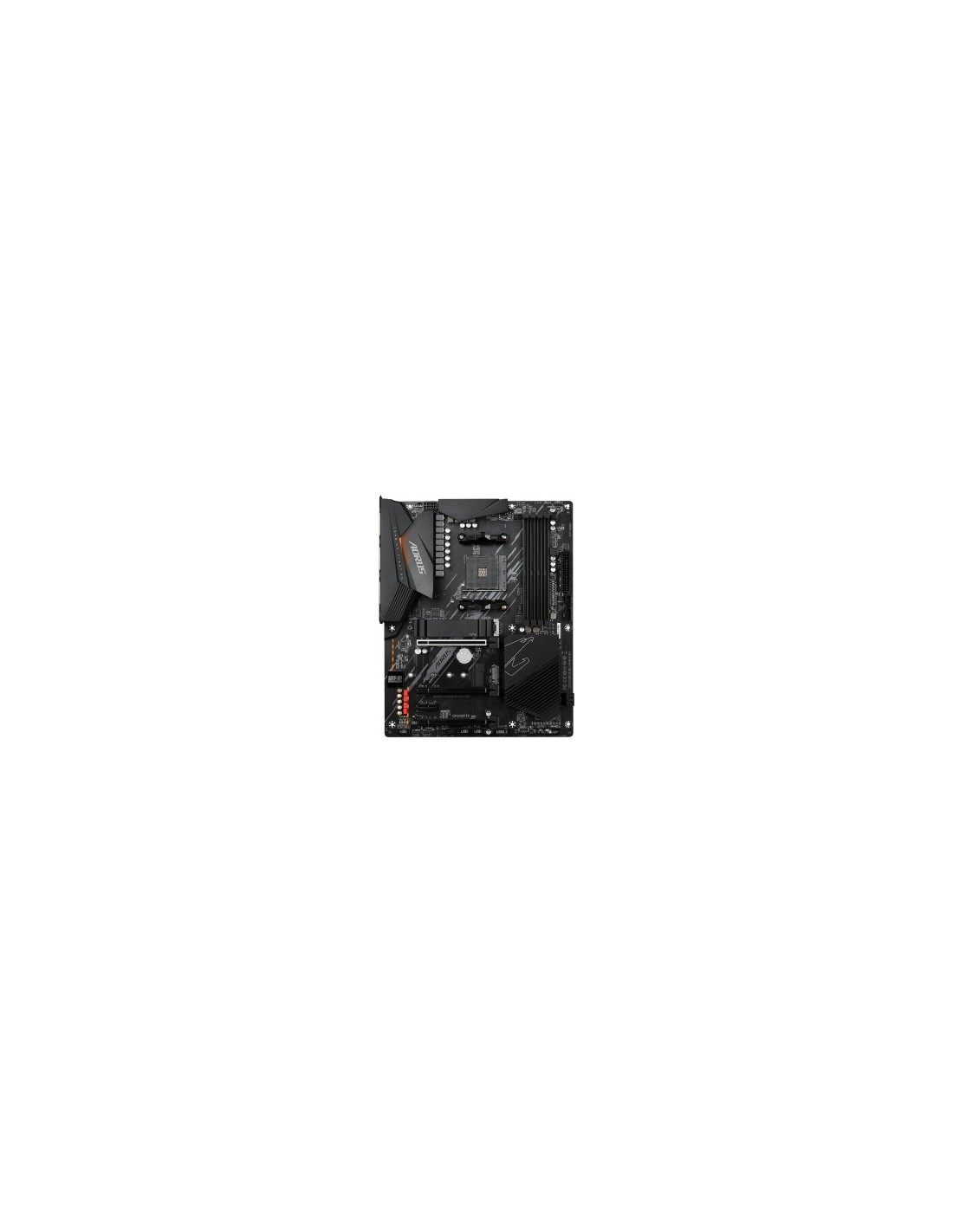

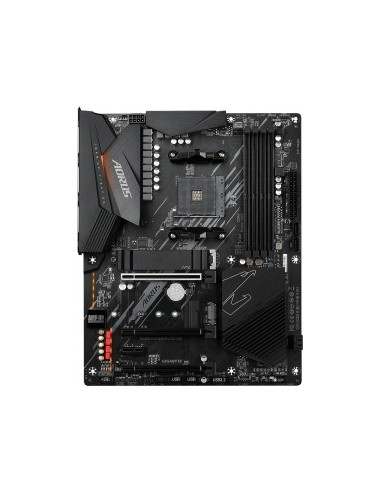

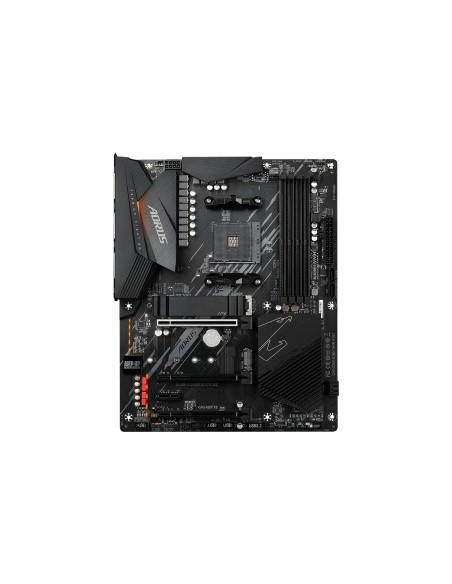

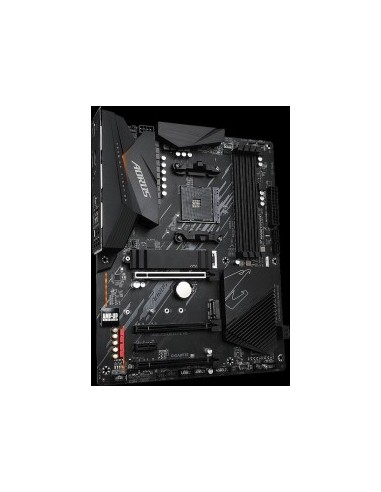

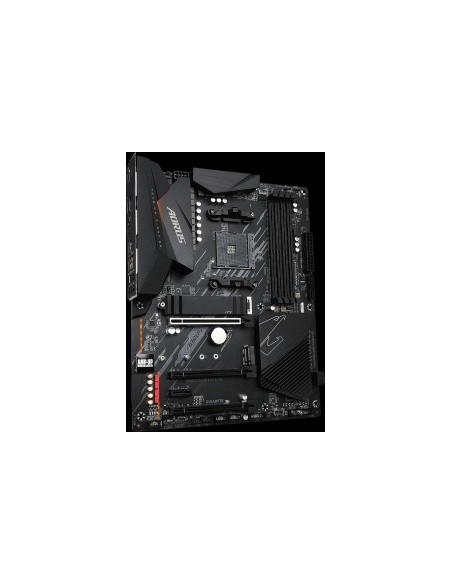

GIGABYTE B550 AORUS ELITE V2 motherboard (B550 AORUS ELITE V2)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
12
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
12
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,20 €
.
•shape factor:ATX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 5000 Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:8 real phases (6+2) 14 virtual phases (12+2) PWM-Controller: RAA 229004 (max 8 phases)
•MOSFETs CPU:12x 50A SiC651C
•MOSFETs SoC:2x 50A SiC651ACD
•RAM:4x DDR4 DIMM dual PC4-37866U/DDR4-4733 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x16 (1x x2 1x x1) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 22110/2280/2260/2242)

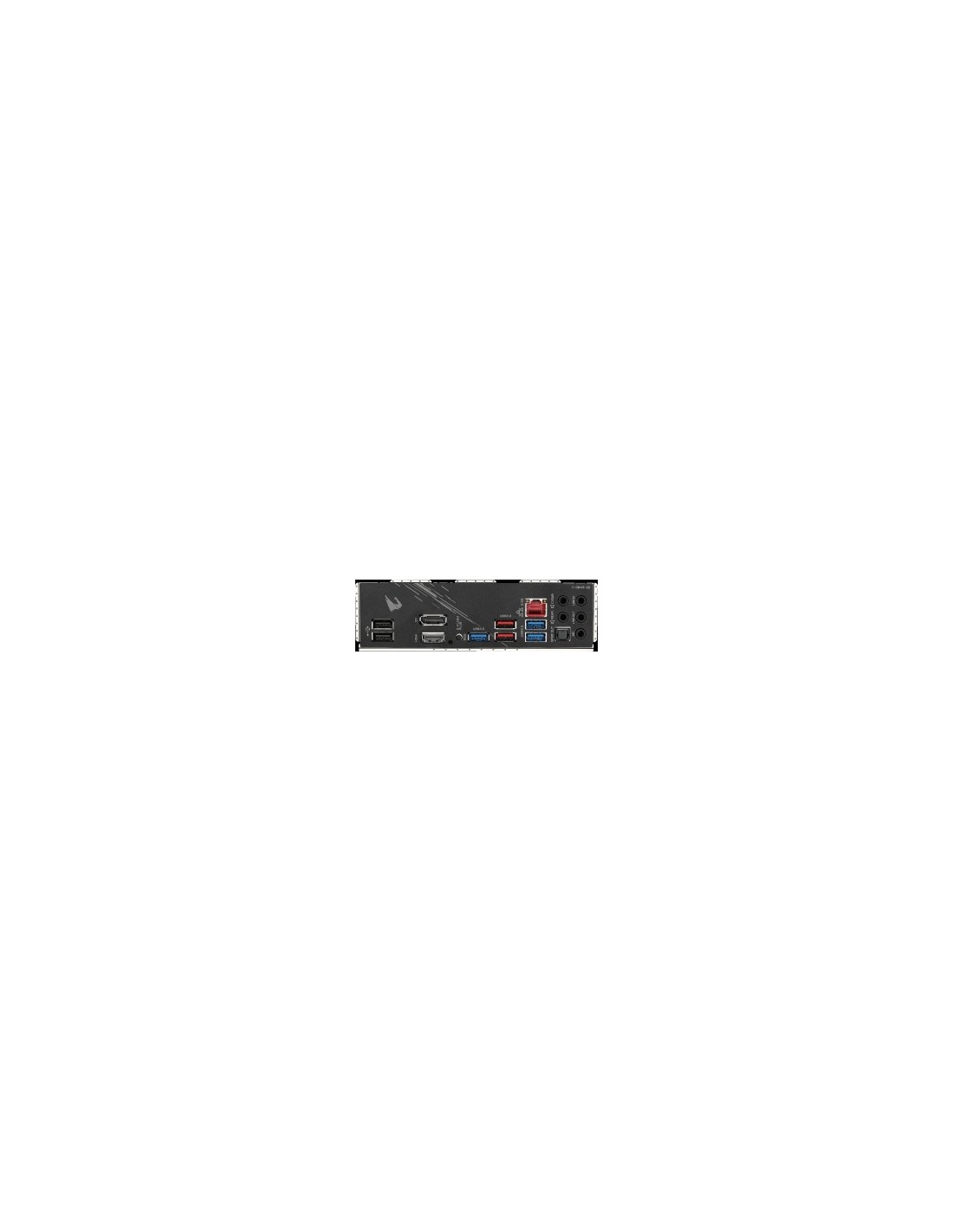

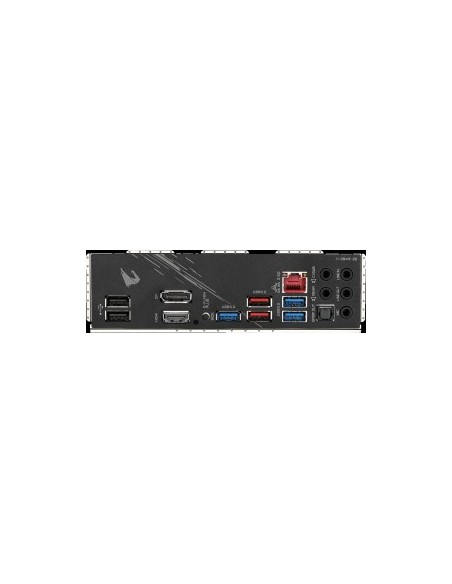

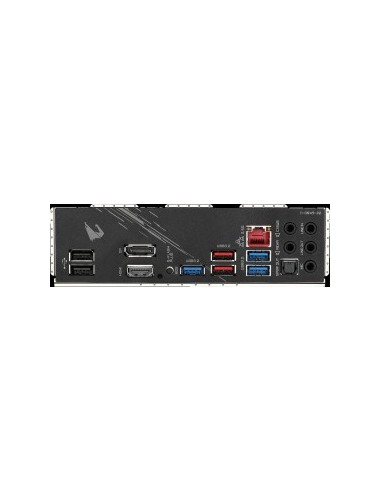

•external connectors:1x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 2x USB-A 31 (B550) 3x USB-A 30 2x USB-A 20 1x 25GBase-T (Realtek RTL8125B-CG) 5x jack 1x toslink
•Internal connectors:1x USB-C 30 Key-A Header 1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (B550) 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 1x CPU fan/pump 4-Pin 3x fan 4-Pin
•Header Lighting:3x 4-Pin RGB (+12V/G/R/B max 2A) 2x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (external)
•Audio:71 (Realtek ALC1200)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:RGB 1 zone (Audio Trace Path)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors I/O-shield integrated 1x M2-passive cooler ECC-support
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Li
- SKU - Κωδικός Εργοστασίου
- B550 AORUS ELITE V2
