•shape factor:\u00b5ATX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:8 virtual phases (4+4) 6 real phases (4+2) PWM-Controller: ASP1106 (RT8877C max 6 phases)
•MOSFETs CPU:4x 58A SiRA14DP/8x SiRA12DP
•MOSFETs SoC:4x 58A SiRA14DP/SiRA12DP
•RAM:4x DDR4 DIMM dual PC4-38400U/DDR4-4800 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 2x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260/2242)

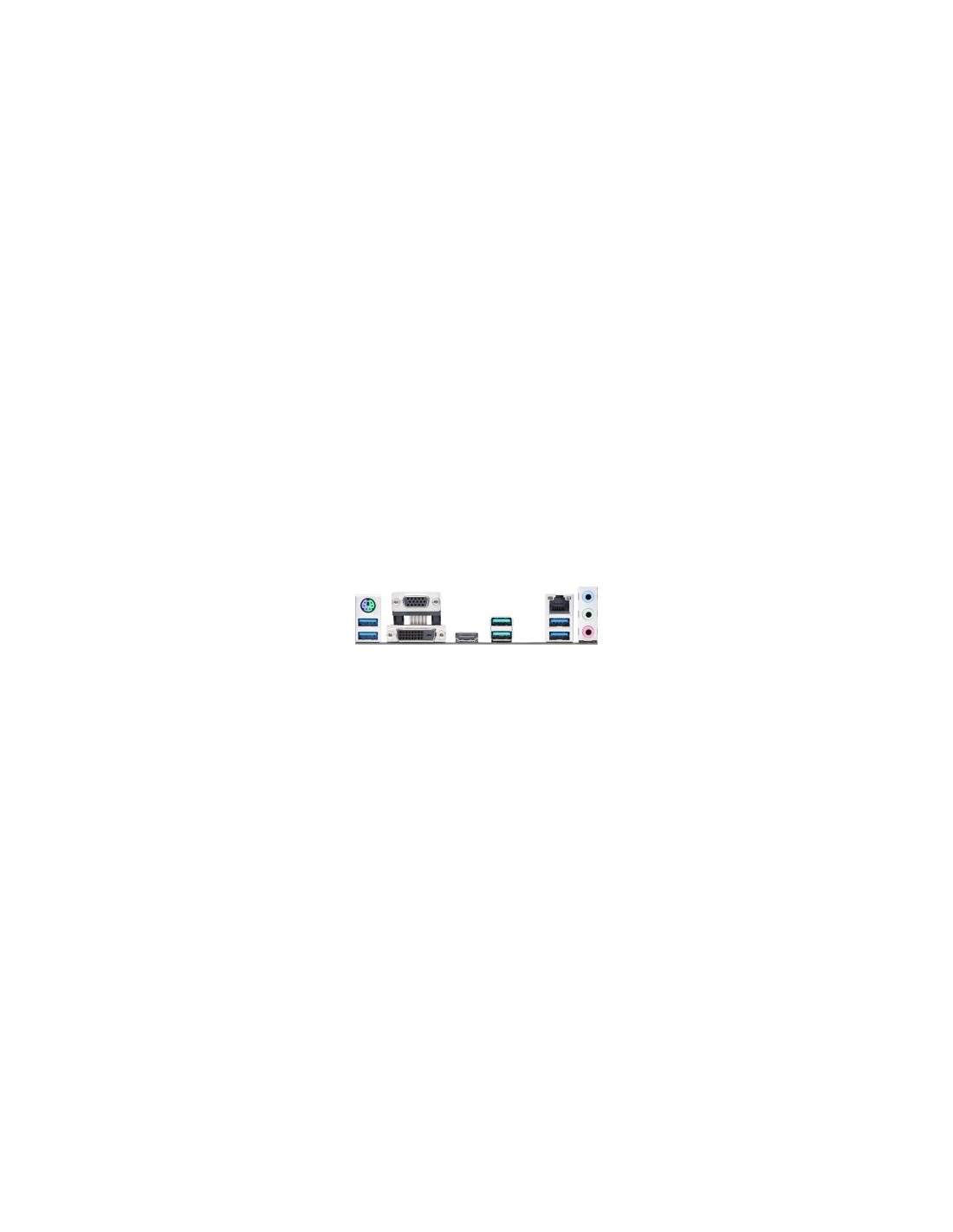

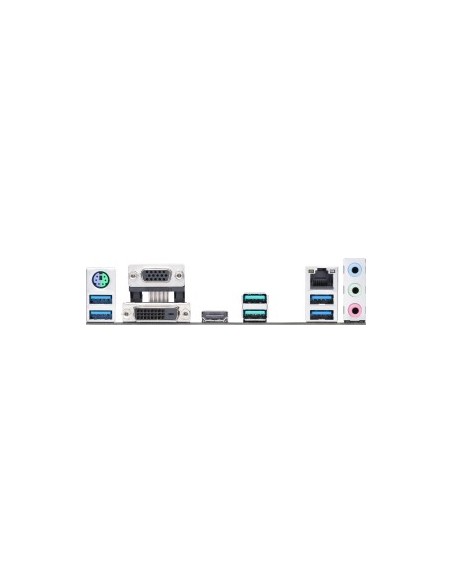

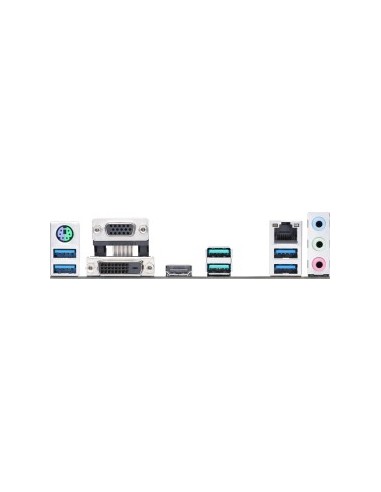

•external connectors:1x VGA (iGPU) 1x DVI-D (iGPU) 1x HDMI 21 (iGPU) 2x USB-A 31 (B550) 4x USB-A 30 1x Gb LAN (Realtek RTL8111H) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 4x SATA 6Gb/s (B550) 1x serial 1x TPM-Header 1x S/PDIF-Header 1x Speaker-Header
•Header Cooling:2x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 1x 3-Pin ARGB (+5V/DATA/GND max 3A ASUS Gen2)
•buttons/Switches:not available
•Audio:71 (Realtek ALC887)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:orange 1 zone (Audio Trace Path)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors
•Warranty:three years (handling by merchant)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου
- 90MB14I0-M0EAY0
