•shape factor:\u00b5ATX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:7 real phases (5+3) PWM-Controller: RAA229004 (max 8 phases)
•MOSFETs CPU:5x 46A 4C10N/10x 4C06N
•MOSFETs SoC:3x 46A 4C10N/4C06N
•RAM:4x DDR4 DIMM dual PC4-37866U/DDR4-4733 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 1x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x2/SATA 2280/2260/2242)

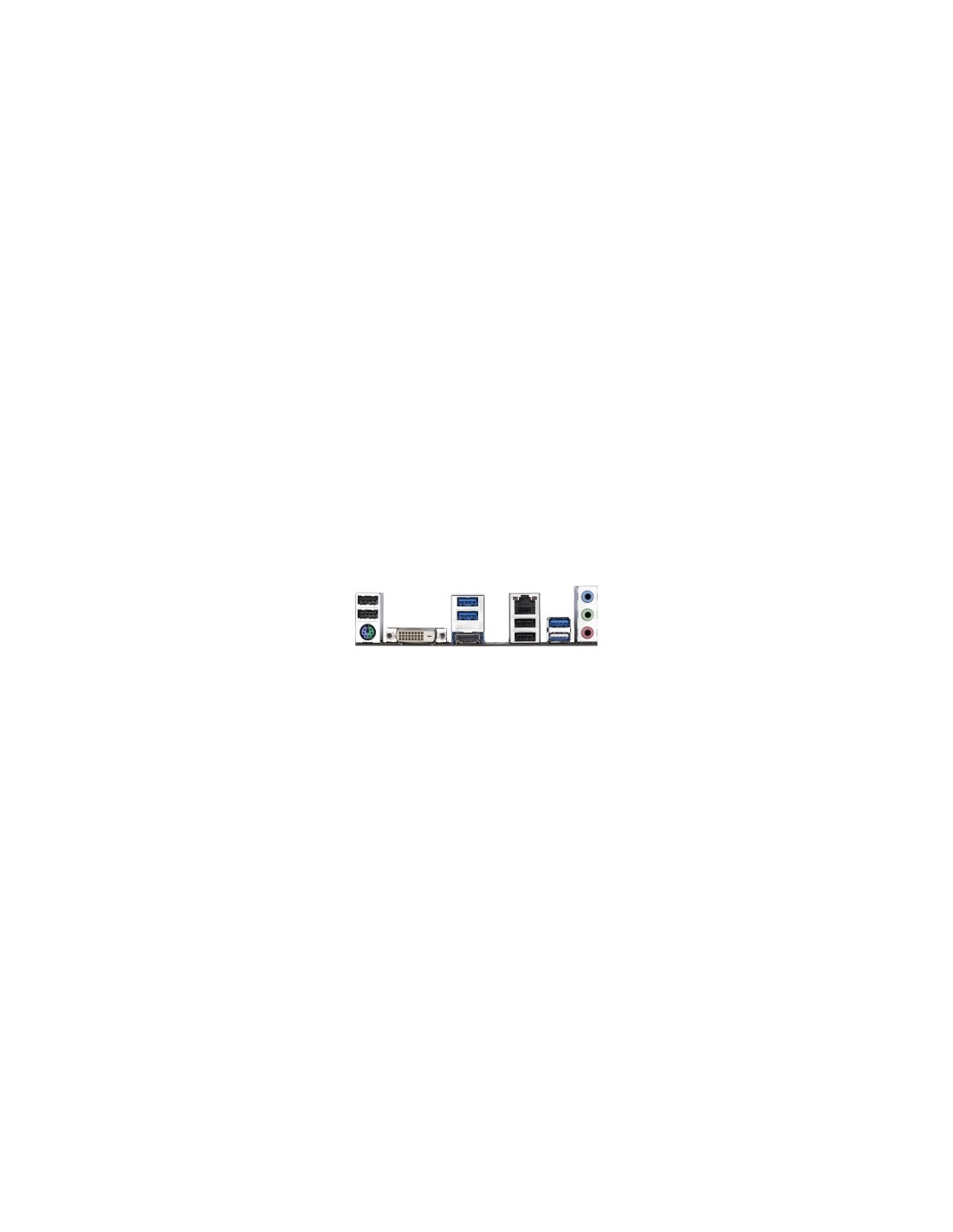

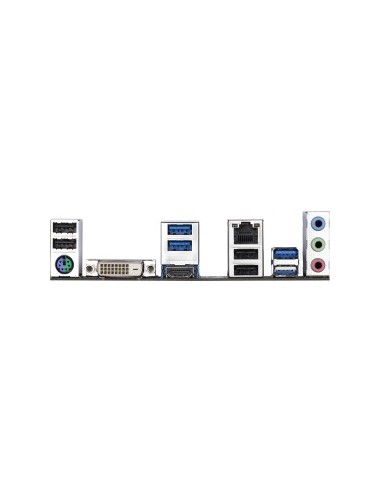

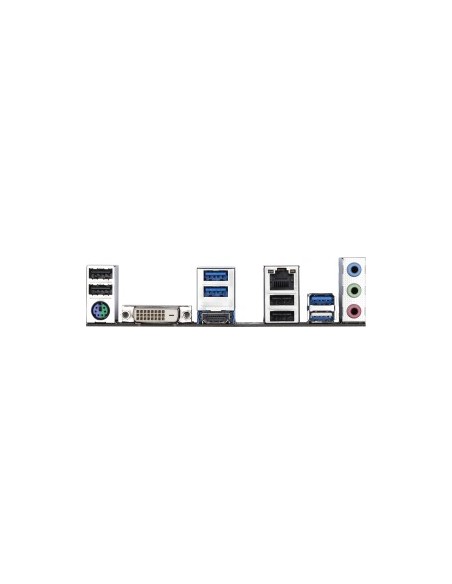

•external connectors:1x DVI-D (iGPU) 1x HDMI 21 (iGPU) 4x USB-A 30 4x USB-A 20 1x Gb LAN (Realtek RTL8118AS) 3x jack 1x PS/2 Combo
•Internal connectors:1x USB 30 Header (2x USB 30) 1x USB 20 header (2x USB 20) 4x SATA 6Gb/s (B550) 1x serial 1x TPM-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:3x 4-Pin RGB (+12V/G/R/B max 2A) 2x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (internal)
•Audio:71 (Realtek ALC887)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:not available
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου

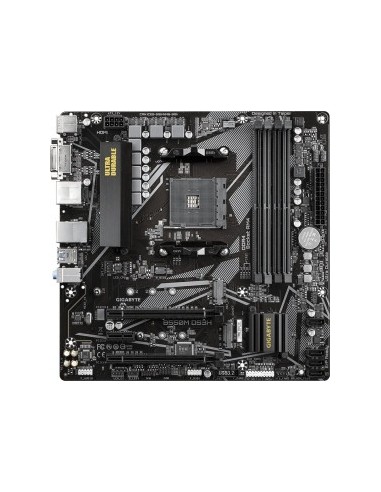

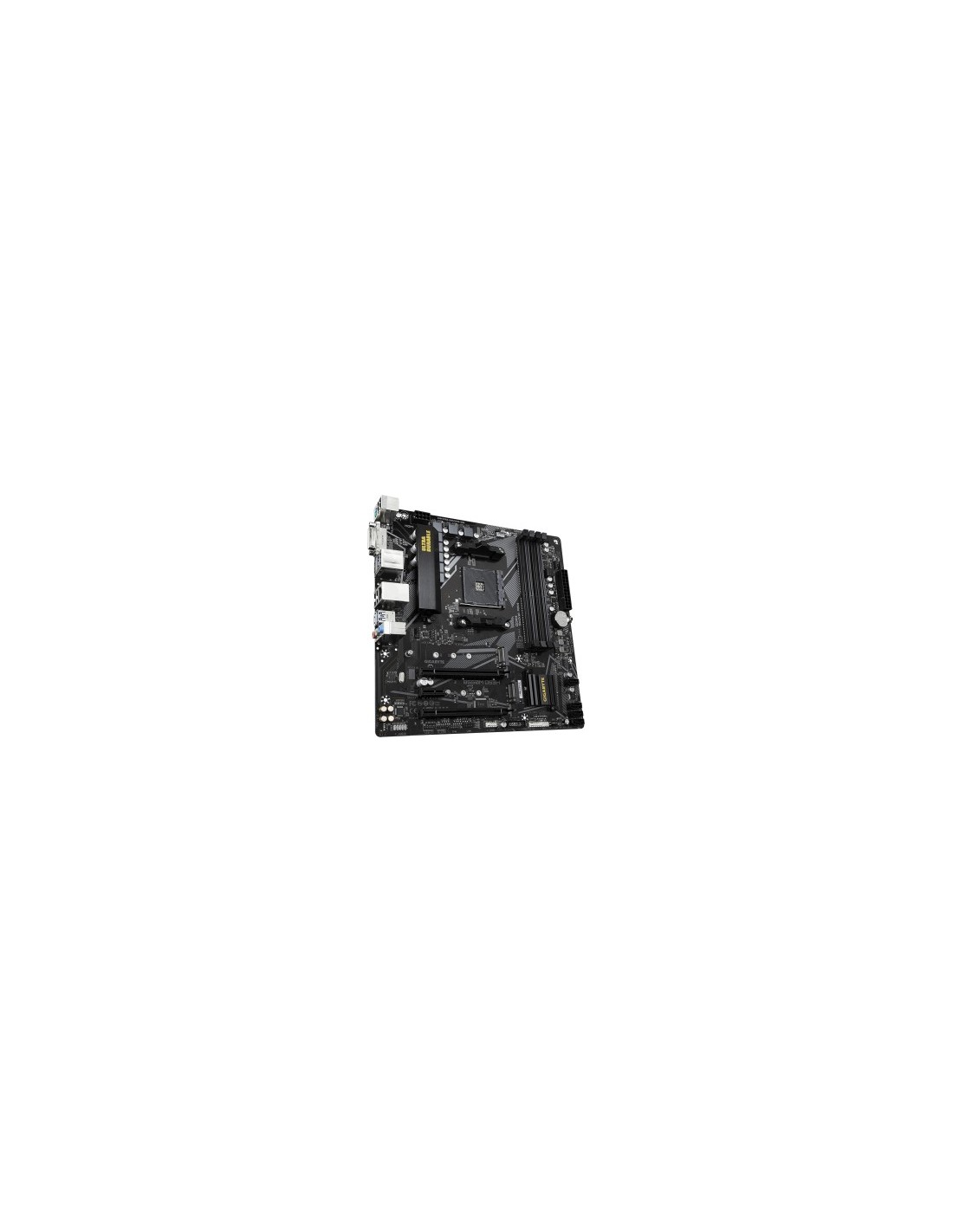

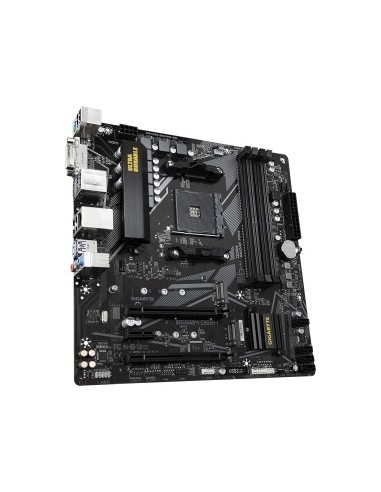

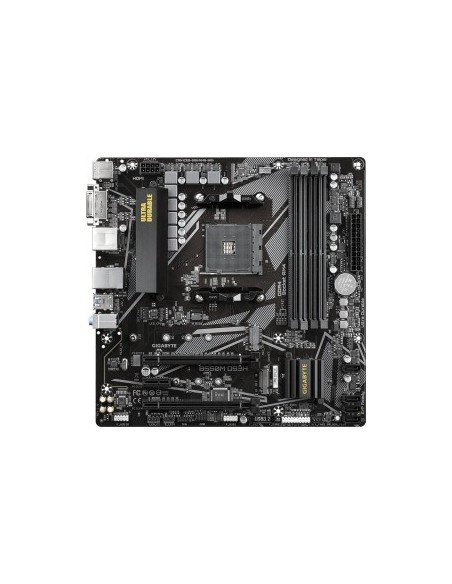

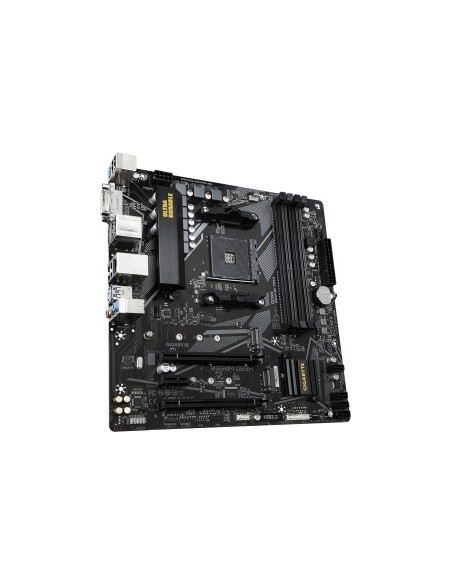

- B550M DS3H
No reviews
