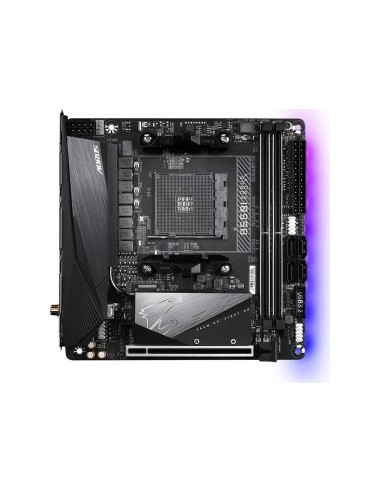

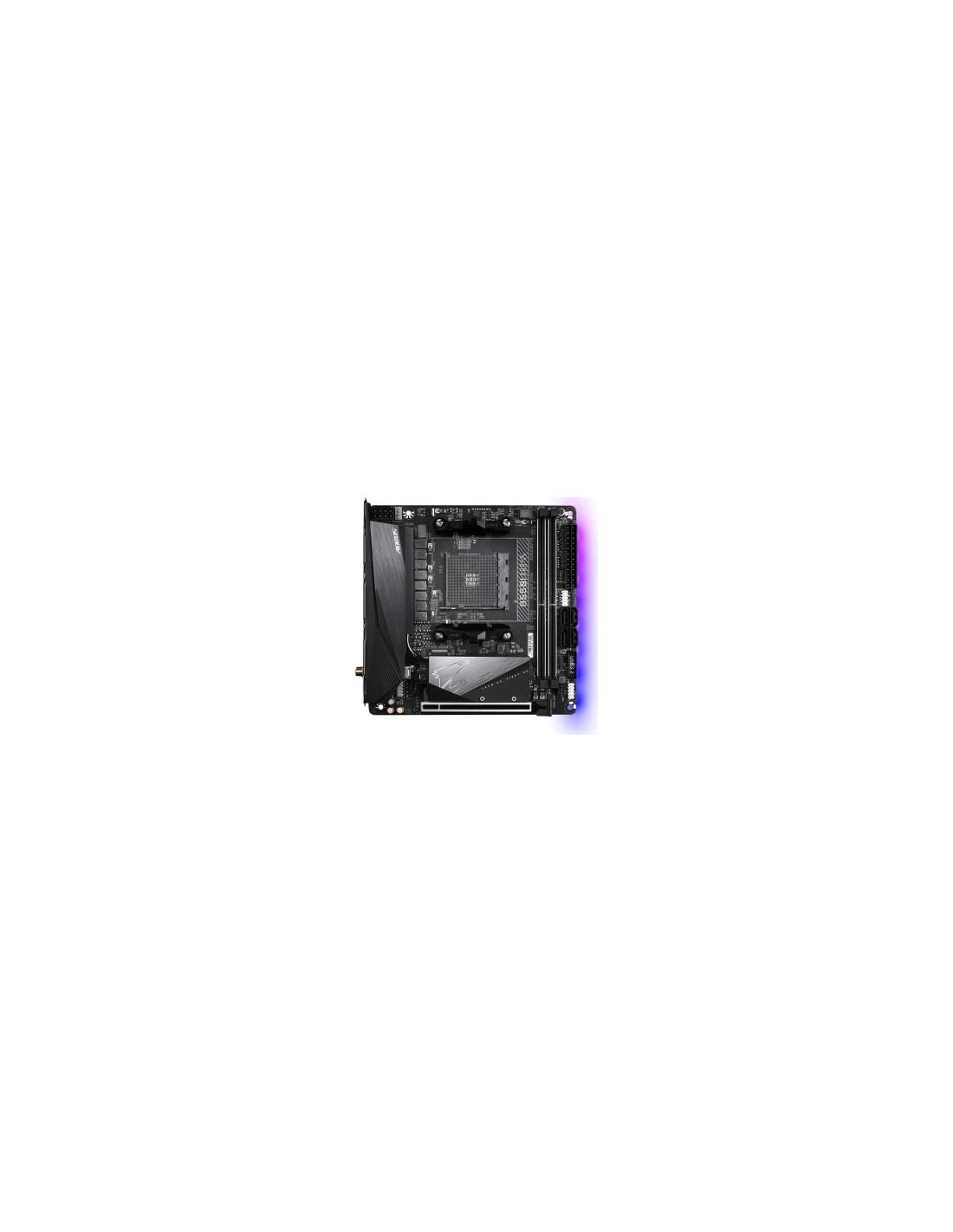

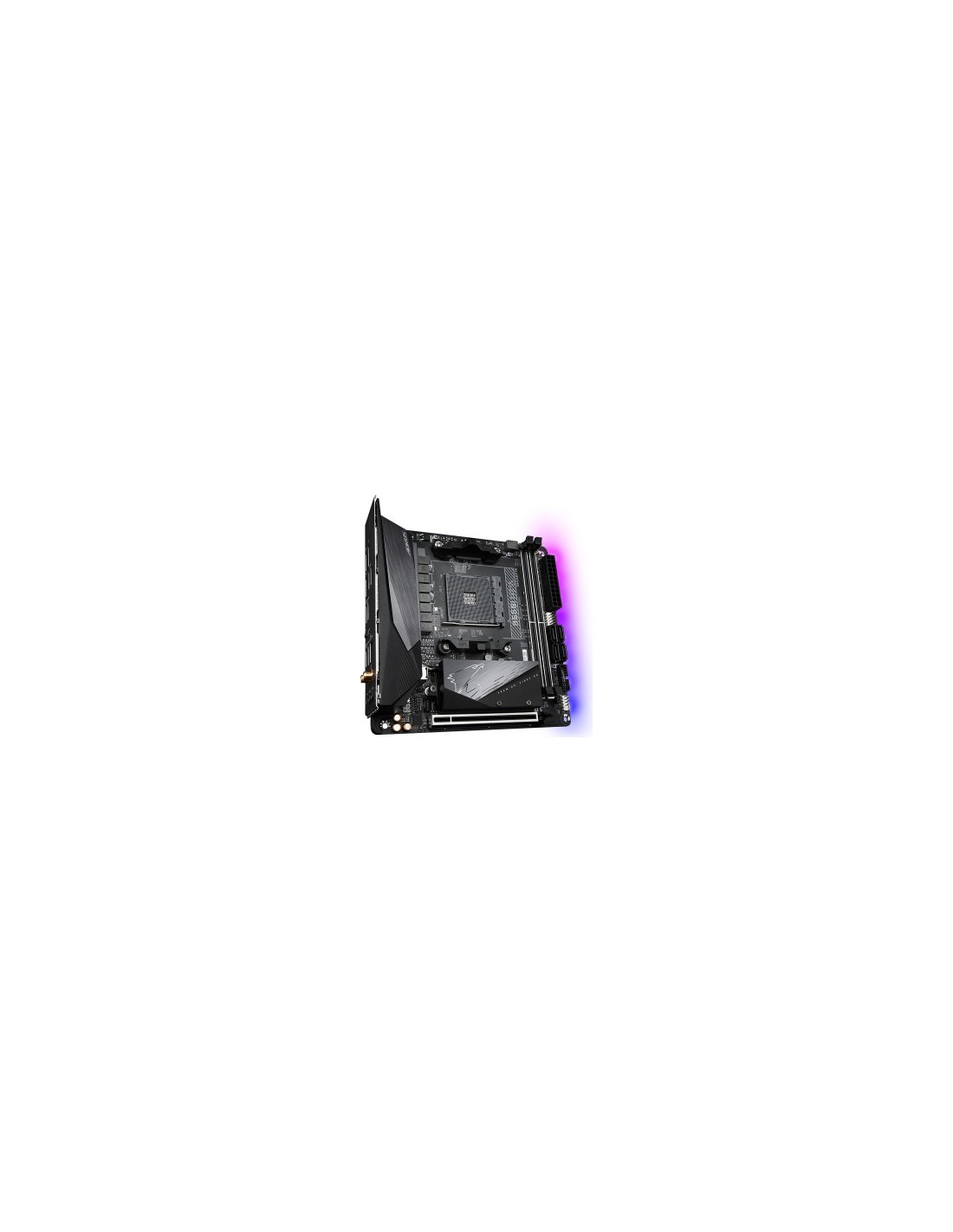

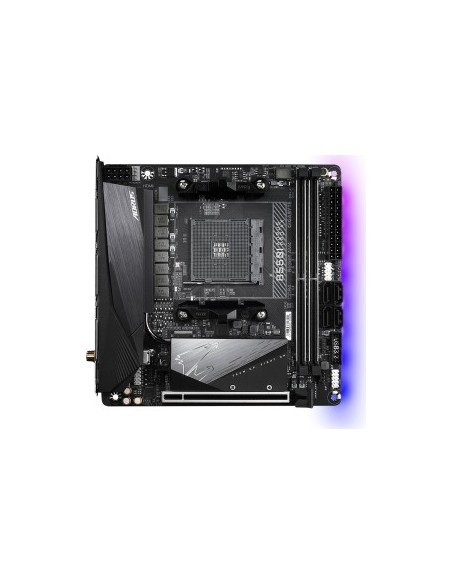

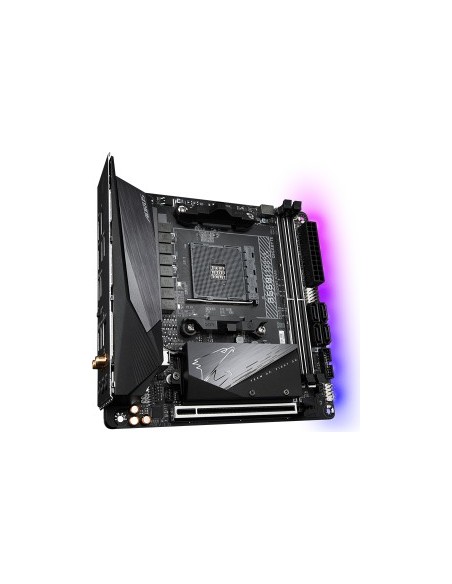

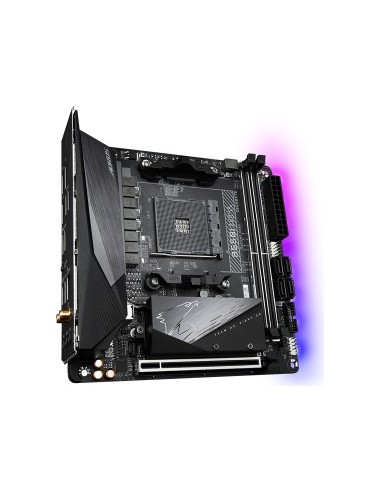

GIGABYTE B550I AORUS PRO AX motherboard (B550I AORUS PRO AX)
Αγοράζοντας αυτό το προϊόν μπορείτε να συλλέξετε έως
15
Πόντους επιβράβευσης
.
Το καλάθι σας θα περιέχει συνολικά
15
Πόντoυς
που μπορούν να μετατραπούν σε κουπόνι των
1,50 €
.
•shape factor:mini-ITX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:8 real phases (6+2) PWM-Controller: RAA229004 (max 8 phases)
•MOSFETs CPU:6x 90A ISL99390
•MOSFETs SoC:2x 90A ISL99390
•RAM:2x DDR4 DIMM dual PC4-42400U/DDR4-5300 (OC) max 64GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x M2/M-Key (PCIe 40 x4/SATA 2280/2260) 1x M2/M-Key (PCIe 30 x4/SATA 2280/2260 back side)
•external connectors:2x HDMI 21 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 31 (B550) 1x USB-A 31 (B550) 4x USB-A 30 1x 25GBase-T (Realtek RTL8125B-CG) 3x jack
•Internal connectors:1x USB 30 Header (2x USB 30) 1x USB 20 header (2x USB 20) 4x SATA 6Gb/s (B550) 1x TPM-Header 1x Speaker-Header
•Header Cooling:1x CPU fan 4-Pin 2x fan 4-Pin
•Header Lighting:1x 4-Pin RGB (+12V/G/R/B max 2A) 1x 3-Pin ARGB (+5V/DATA/GND max 5A)
•buttons/Switches:USB BIOS Flashback/Q-Flash Plus (external)
•Audio:71 (Realtek ALC1220)
•onboard-Graphics:iGPU
•Wireless:WLAN 80211a/b/g/n/ac/ax (2x2 Intel AX200) Bluetooth 51
•RAID level:0/1/10 (B550)
•Multi-GPU:not available
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:RGB 1 zone (page right)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors I/O-shield integrated 1x M2-passive cooler
•Warranty:three years (from date of manufacture processing via specialized dealers)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου
- B550I AORUS PRO AX
