•shape factor:ATX
•chipset:AMD B550
•CPU-Compatibility:Ryzen 4000G Ryzen 3000 without TDP limitation (Manufacturer-list)
•VRM:12 virtual phases (10+2) 7 real phases (5+2) PWM-Controller: RAA229004 (max 8 phases)
•MOSFETs CPU:10x 60A ISL99360
•MOSFETs SoC:2x 60A ISL99360
•RAM:4x DDR4 DIMM dual PC4-40800U/DDR4-5100 (OC) max 128GB (UDIMM)
•Extension slots:1x PCIe 40 x16 1x PCIe 30 x16 (x4) 2x PCIe 30 x1 1x M2/M-Key (PCIe 40 x4/SATA 22110/2280/2260/2242) 1x M2/M-Key (PCIe 30 x4 2280/2260/2242)

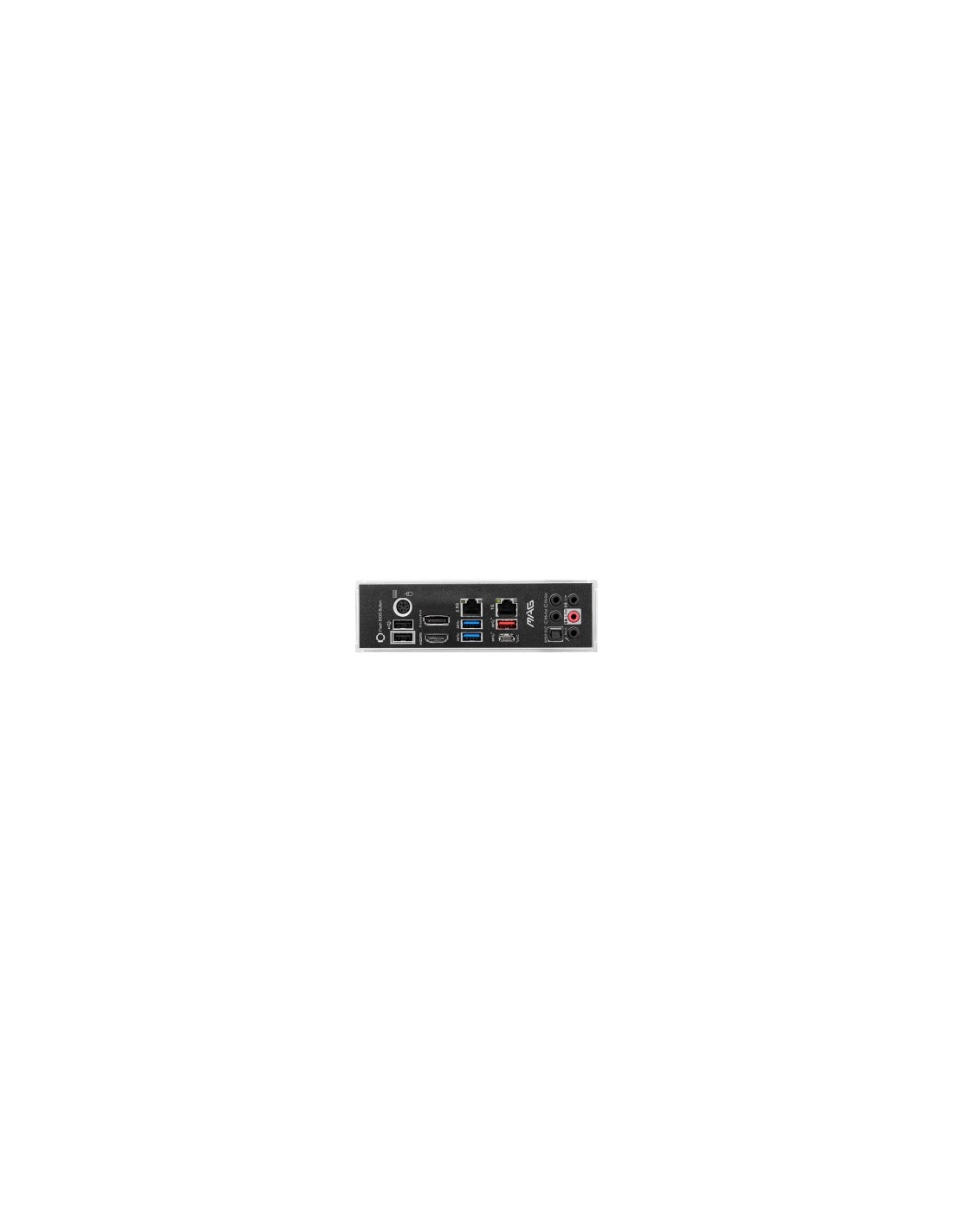

•external connectors:1x HDMI 14 (iGPU) 1x DisplayPort 14 (iGPU) 1x USB-C 31 (B550) 1x USB-A 31 (B550) 2x USB-A 30 2x USB-A 20 1x 25GBase-T (Realtek RTL8125B-CG) 1x Gb LAN (Realtek RTL8111H) 5x jack 1x toslink 1x PS/2 Combo
•Internal connectors:1x USB-C 30 Key-A Header 1x USB 30 Header (2x USB 30) 2x USB 20 header (4x USB 20) 6x SATA 6Gb/s (B550) 1x TPM-Header 1x Chassis Intrusion-Header
•Header Cooling:1x CPU fan 4-Pin 6x fan 4-Pin 1x fan/pump 4-Pin
•Header Lighting:2x 4-Pin RGB (+12V/G/R/B max 3A) 2x 3-Pin ARGB (+5V/DATA/GND max 3A)
•buttons/Switches:USB BIOS Flashback (external) LED switch (internal)
•Audio:71 (Realtek ALC1200)
•onboard-Graphics:iGPU
•Wireless:not available
•RAID level:0/1/10 (B550)
•Multi-GPU:AMD 2-Way-CrossFireX (x16/x4)
•Power connections:1x 24-Pin ATX 1x 8-Pin EPS12V
•Lighting:RGB 1 zone (chipset cooler)
•BIOS:1x 32MB (256Mb)
•Special features:audio+solid capacitors Diagnostic LED (LED indicators) I/O-shield integrated 2x M2-passive cooler
•Warranty:three years (from date of manufacture handling by merchant)
•USB nomenclature:Link
- SKU - Κωδικός Εργοστασίου
- 7C91-001R
